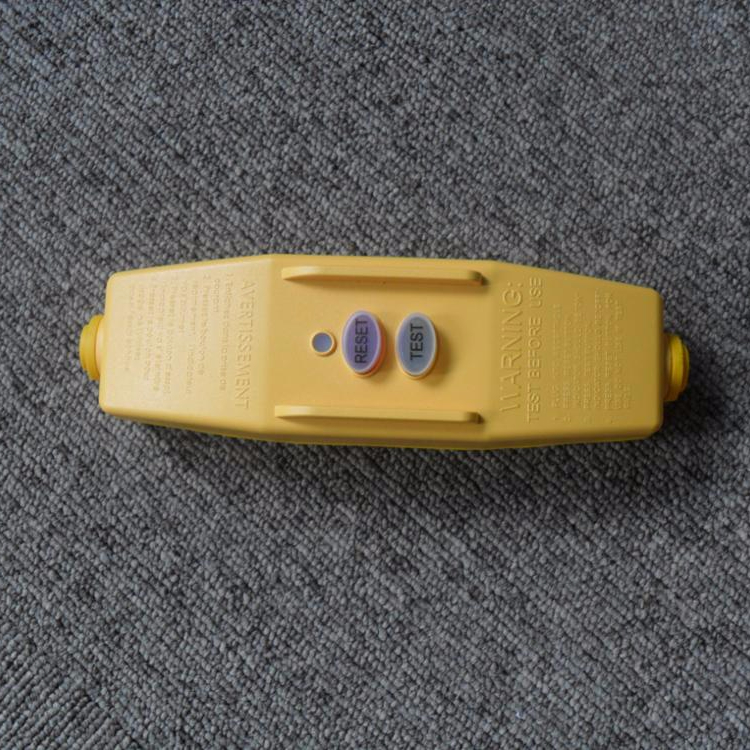

GROUND FAULT CIRCUIT INTERRUPTER GFCI ELECTRICAL PLUGS & SOCKETS

Specifications:

1. Rated Supply Voltage(Un): 125V/60Hz/AC

2. Supply Voltage Range: 102V-132V AC

3. Range Current(In): 10mAps-25AMPS

4. Ground Trip Current(In): 4mA-6mA,30mA;

5. Trip Time(T): when In=6mA,T≤0.1s ; when In=264mA,T≤0.025s

6. Withstanding voltage: 1500V AC

7. Withstanding Surge Voltage: 6000V

8. Endurance operations: more than 3000 operations

9. Operating Temperature(TM): -35°c~66°c

10. Relative humidity of the environment(RH): When environment temperarure 25°C,lower than 93%

11. The product possesses rain-proof ability

12. Reset automatically while inserting the power(Put through the load power); Trip automarically when the
power is unusual and on the low side in voltage (Disconnection load power);
13. Controller: 102x45x75mm

14. Other indexes accord with UL 943 standard demand

Application Fields:

1) Belongs to the class I portable electrical equipment and hand-held power tools (Class Ielectrical products, product protection against electric shock not only rely on basic insulation of the equipment, but also contains an additional safety precautions, such asshell ground);
(2) The installation of electrical equipment in wet, corrosive and other harsh places;
(3) The electrical construction machinery and equipment on the construction site;
(4) Temporary a temporary electricity electrical equipment;
(5) socket circuit within the rooms of hotels, restaurants and guest houses;
(6) The socket circuit within the agencies, schools, businesses, and residential buildings;
(7) Swimming pool, fountains and lighting equipment in the water bath;
(8) The mounted in the water supply lines and equipment;
(9) In direct contact with the body"s electrical medical equipment in the hospital;
(10) Other place to install leakage protection.
