Product Details

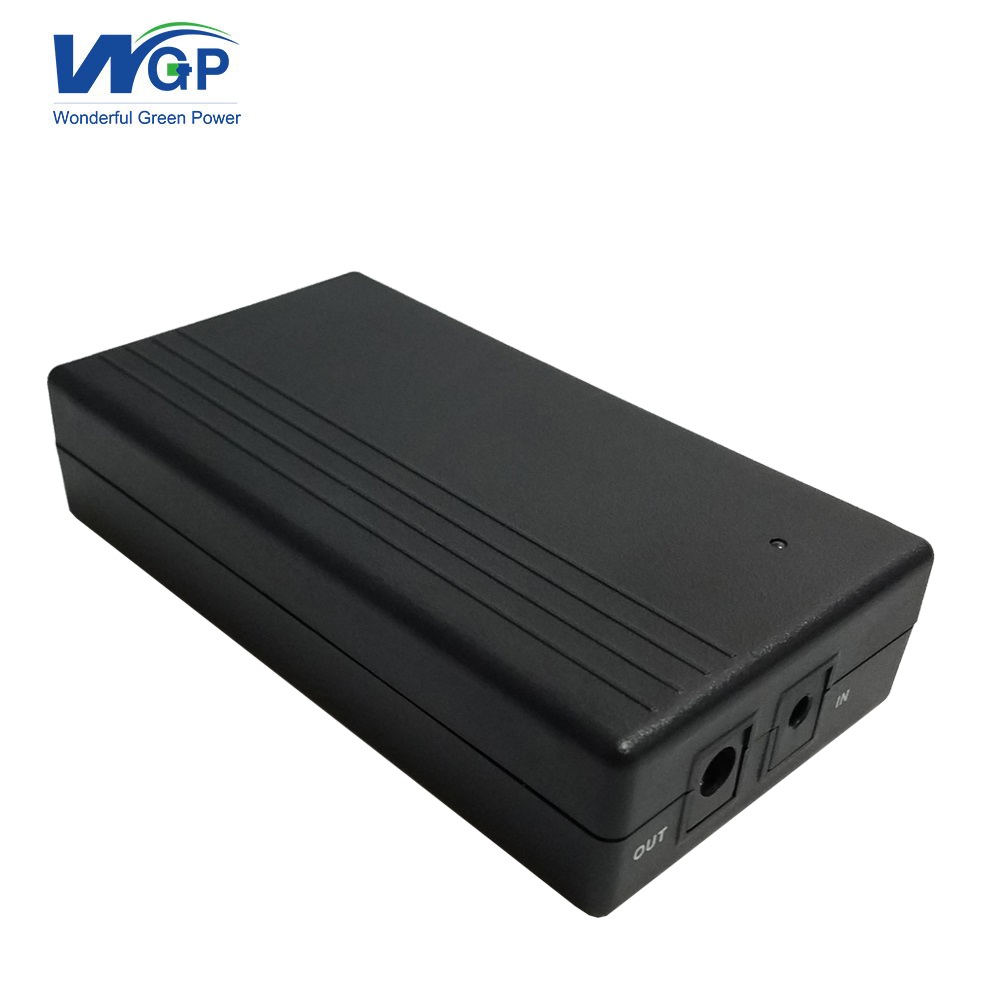

Shenzhen 18650 battery ups manufacturer 12V dc compact size ups for security induction door system
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| Type | 12V 1A mini ups |
| Input | 12V 1000mA |
| Output | 12V 1000mA |
| Working temperature | -20°C~65°C |
| Weight | ≤153g |
| Size | 111x60x26mm |
| UPS IN jack | 5.5*2.5mm,OUT:5.5*2.1mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 7.4V/2200mAh 16.28wh |
1. Connect a suitable adapter to UPS
2. First time to use,please charge the UPS 10 hours
3. Connect adapter to ups, then use dc cable connect ups to equipment

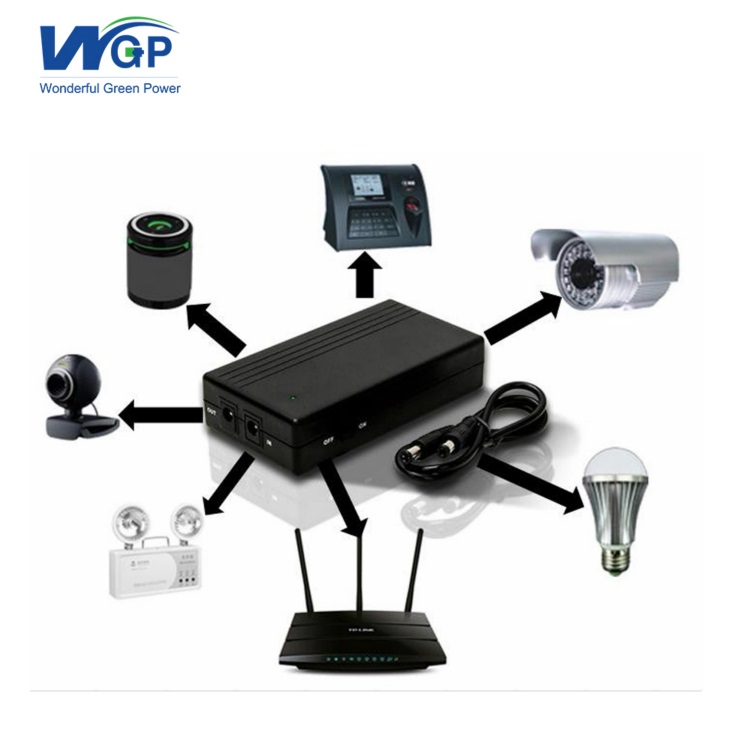

4. Switch on UPS and the equipment(see below diagram)
5. The Green LED indicates that the UPS is fully charged
6. The red LED indicates that adapter charge ups and also equipment when electricity is available
