Product Details
- Input Voltage(V):
- DC6V
- Lamp Luminous Flux(lm):
- 80
- CRI (Ra>):
- 80
- Beam Angle(°):
- 120
- Working Temperature(℃):
- -25 - 55
- Working Lifetime(Hour):
- 5000
- Lamp Body Material:
- ABS
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- WQF
- Model Number:
- QF-181
- Application:
- Garden
- Light Source:
- LED
- Warranty(Year):
- 1-year
- Light Type:
- Solar
- LED Light Source:
- SMD5730
- Solar Panel:
- DC6V 0.7W polycrystalline
- Battery:
- 3.7V 1500mAh
- Control mode:
- PIR Photosensitive Sensor Controlling
- Sensing Distance:
- 3-5m
- Charging Time:
- 6-8 Hrs
- Working time:
- 12-120 Hrs
- Delay time:
- 20-22 seconds
- Product size:
- 106*H618.5mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 23X16X12 cm
- Single gross weight:
- 0.8 kg
- Package Type:
- 20 SET/40PCS Outer Carton: 72*45*24cm G.W.:13kg
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200 >200 Est. Time(days) 5 To be negotiated

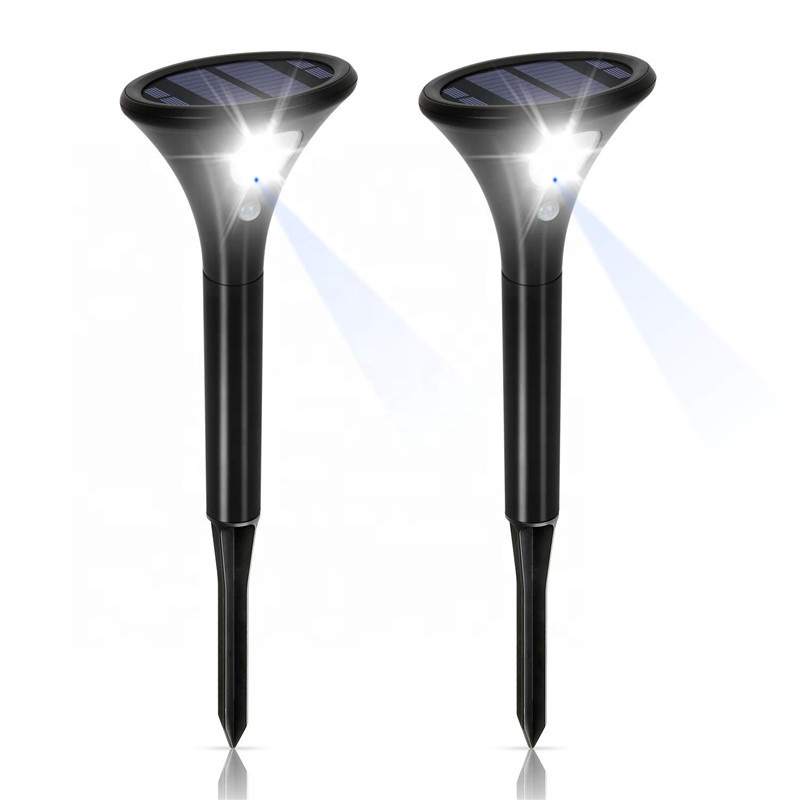

Shenzhen Factory High Quality Steel Path Walkway Bright Solar LED Lawn Lamp PIR Motion Sensor Garden Light Turn On Automatically
Saline Water Powered Multi-functional Lantern | ||
Model | QF-181 | |
LED Chip | 0.5W/6000K | |
Solar Panel | DC6V 0.7W polycrystalline | |
Battery | 3.7V 1500mAh | |
Lighting Control | PIR+Light Sensor | |
Sensor Distance | 3-5m | |
Charging Time | 6-8H | |
Working Time | High Brightness10-12H; Weak Brightness100-120H | |
Waterproof | IP65 | |

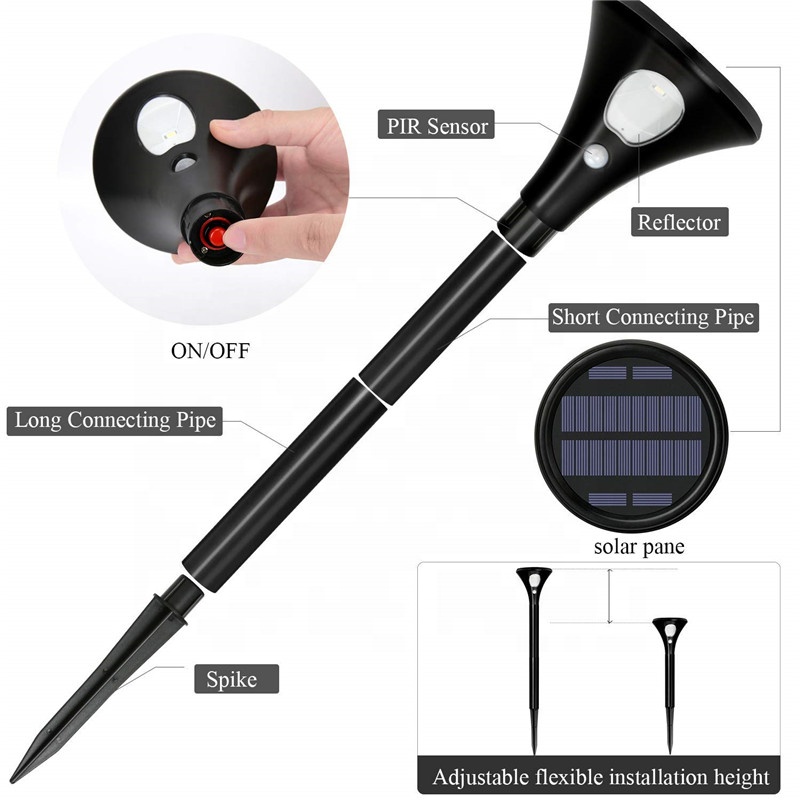

Features:
● Solar photovoltaic lighting, no wiring, low voltage, safe, en-ergy-saving, environmentally-friendly, save electricity.
● Poly solar panel, high conversion efficiency, good water-proofness.
● Built-in 1500mAh Lithium battery, long working time.
● Good brand SMD light source, super bright, high CRI, long lifespan.
● Photosensitive control+PIR sensing modes, automatic smart control, charge during the day, and discharge in the evening. When motion is detected in the evening, automatically enter into bright light mode, when people leave, after 22 seconds, it will automatically convert to weak light mode.
● ABS shell, UV-resistant, anti-corrosion, IP65 rating.
● Optical reflector, trapezoid light distribution, perfect lighting effect.
● Three-section connecting pipe design allows flexible instal-lation height selection and to minimize the packaging size.
● Slender body shape design, beautiful and elegant, exclusive product.
How to operate?
Note:
1. Do not let weeds and shades block the solar panel, as they will affect the charging effect.
2. Charging during the day and discharge in the evening. When motion is detected in the evening, automatically enter into bright light mode, when people leave, after 22 seconds, it will automatically convert to weak light mode.
3. IP65 rating, please do not install it in low-lying puddles and underwater.
4. Please charge the product under the sunlight first when it is not used for a long time.
5. The spike is sharp, do not let children play with it to avoid injury
Used for landscape, garden, park, villa, courtyard, path lighting, etc.
Package:
Inner Box: 218*140*110.5mm (2pcs/box)
G.W.:0.6kg
20 SET/40PCSOuter Carton: 72*45*24cm
G.W.:13kg
Solar Light*2 Spike&Connecting Pipe*6 User Manual*1
Delivery
1. International express: DHL, Fedex, UPS, TNT, EMS
2. Ocean shipping
3. If you have forwarder in China, we also could help you to sent cargo to your forwarder.
Our factory have product patent and CE, ROHS, FCC Certificate, MSDS and battery report UN38.3 all could be provided.
SHENZHEN WOQINFENG ELECTRONICS CO., LTD.
Founded in 2011, is an innovative enterprise that involved in R&D,production,sales.Main products include: home portable lighting products, solar lighting products, new energy seawater powered lighting products. At present, we have obtained more than 20 patents for utility models and appearance designs. All products are exported to Europe, America,Southeast Asia, Africa and other regions in the world. Our company has passed ISO9001:2008 International Quality System Certification. We got ETL, TUV, SAA, FCC, CE, RoHS certifications for our products. We own a professional and experienced R&D team, unique appearance designs, perfect quality control system. Wefollow the management philosophy of " specialty, integrity, service and win-win" to provide you with high-quality products, reasonable prices, accurate delivery date, perfectafter-sales service, and OEM/ODM service.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
