Product Details
| LED Chip | SMD5050 RGB LED chip |
| IC Chip | WS2812B(WS2811 IC built-in 5050 RGB LED chip) |
| LED Quantity | 64LEDs/pcs |
| Input Voltage | DC5V |
| Watts | 12.2W/Max |
| IP Rate | IP20(non-waterproof) |
| PCB Color | Black PCB |
| View Angle | 140° |
| Color | Addressable full color |
| PCB Pitch | 10mm |
| PCB Size | 80mmx80mm |
| Warranty | 2 years |
| Brand | iPixel LED |

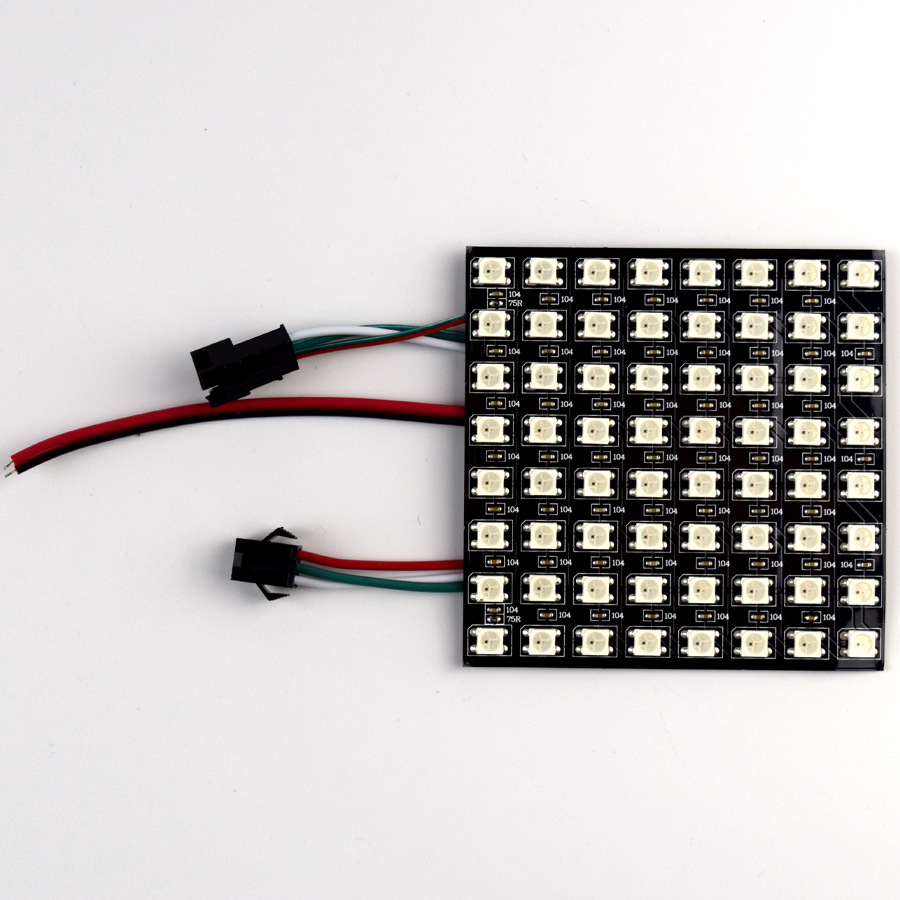

WS2812B flexible LED matrix-8x8 pixels
it"s very easy to add any letters while each individually control .
that’s 64 individually addressable LEDs on a 80mm x 80mm flexible panel.
You can set any animations
These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 4A in most uses
(3.8A required wen you set all LEDs in white color).

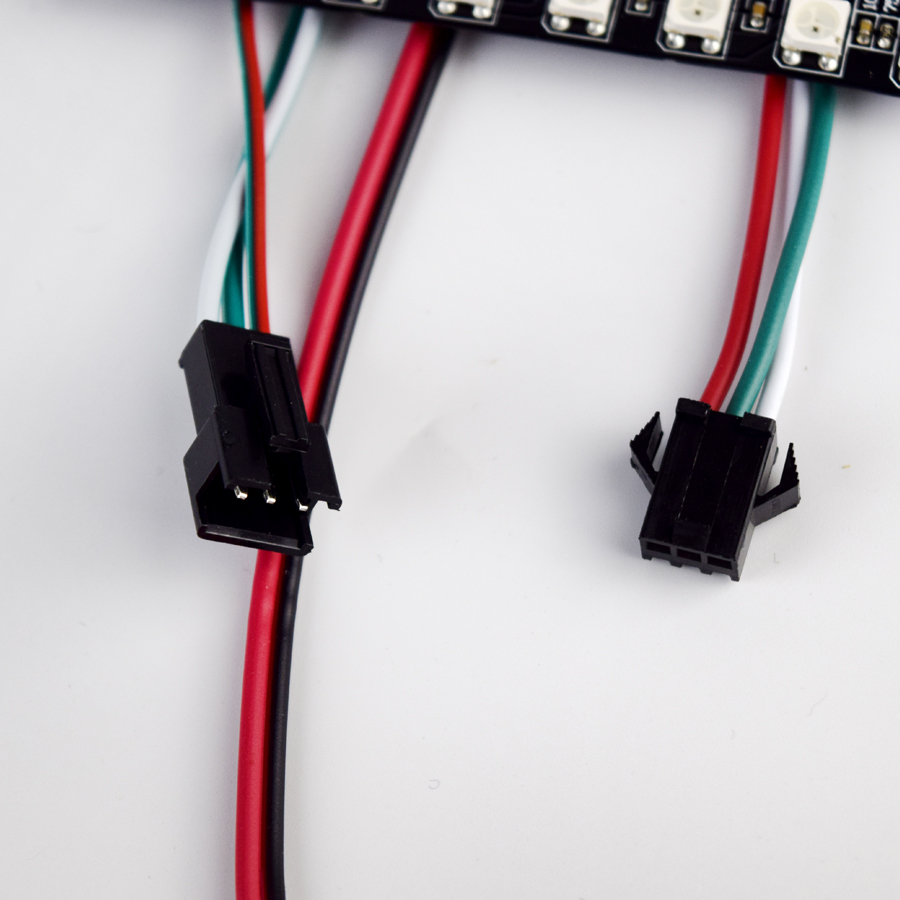

there are two 3-pin JST SM connectors and two pcs bare power cables
Red :DC5V+, Yellow:COM-, Green:DAT, and Yellow GND.
when the full panel set as white color , the whole PCB getting very hot even if
we used 1 ounce Copper
you must supply power to each panel when you links many pcs
Note: please pay attention to the matrix when you bending the flexible panel of color while still being able to individually control each LED.
We aren’t kidding around, that’s 64 individually addressable LEDs on a 80mm x 80mm flexible panel.
You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,
thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.
These panels require a 5V low voltage input for power which needs to be able to source a good amount of current
– up to 2A in most uses (2A if all LEDs are set to bright white, which is NOT recommended).
Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output),
which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for
a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.
Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when
bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!
1.Produce Features :Super Thin, Super Clear, Super Bright, Super Light
2.Specially Magnalium Alloy material, Specially light weight , only 15KG/cabinet;
3.Clear show effect,seamless splice<0.2mm;
4.Thin and light design and fast lock, easy to assemble and disassemble in 10S a cabinet;
5.High refresh rate with Nova / Linsn / Mooncell System, good show in camera / mobile or TV;
6.Consistent color temperature and brightness,no mosiac and blind spot;
7.Suitable for any indoor or outdoor, fixed or rental application;
Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting
we can manufacture different design for you as below
| Model | LED Quantity | Pixel Quantity | IC Type | Watt | Volt | Light Color | PCB Width | PCB |
| 8*8 | 64pcs SMD5050 | 64Pixel | WS2812B | 19.2W | DC5V | Full Colour | 90*90MM | Flexible |
| 16*16 | 64pcs SMD5050 | 64Pixel | WS2812B | 19.2W | DC5V | Full Colour | 160*160MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 160*160MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 170*170MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 160*160MM | Rigid |
| 16*16 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 240*240MM | Flexible |
| 8*32 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 80*320MM | Flexible |
| 33*90 | 256pcs SMD5050 | 256Pixel | WS2812B | 77W | DC5V | Full Colour | 330*90MM | Flexible |
| 50*20 | 1000pcs SMD5050 | 256Pixel | WS2812B | 300W | DC5V | Full Colour | 500*200MM | Flexible |
| 30*32 | 660pcs SMD5050 | 660Pixel | APA102 | 132W | DC5V | Full Colour | 300*320MM | Flexible |
| 30*21 | 280pcs SMD5050 | 280Pixel | APA102 | 56W | DC5V | Full Colour | 300*210MM | Flexible |
| 30*21.5 | 150pcs SMD5050 | 150Pixel | APA102 | 30W | DC5V | Full Colour | 300*215MM | Flexible |
| 30*21.5 | 70pcs SMD5050 | 70Pixel | APA102 | 14W | DC5V | Full Colour | 300*215MM | Flexible |
| 23*23 | 64pcs SMD5050 | 64Pixel | APA102 | 13W | DC5V | Full Colour | 230*230MM | Flexible |
| 16*16 | 256pcs SMD5050 | 256Pixel | APA104 | 77W | DC5V | Full Colour | 160*160MM |
