Shenzhen ShineLong High Quality DALI ,0-10V, Triac Dimmable LED ceiling Light

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 18:50

Other Products
ShineLong cost-effective high quality IP68 waterproof led light 50w high lumen up to140lm for us market
¥Negotiable 17Views

ShineLong cost-effective hig

Recommend
ShineLong hot sale cost-effective 50w high lumen 1200mm led tri-proof tube  for us market
¥Negotiable 18Views

ShineLong hot sale cost-effe

Recommend
ShineLong cost-effective high quality 50w high lumen IP65 tri-proof Light for us market
¥Negotiable 14Views

ShineLong cost-effective hig

Recommend
ShineLong Technology Company 60w 1195*595*10 led panel light
¥Negotiable 15Views

ShineLong Technology Company

Recommend
ShineLong 595 x 595 led square ceiling troffer 60x60 led back-lit panel light 40w
¥Negotiable 19Views

ShineLong 595 x 595 led squa

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
AC200-240V/100-277V
Lamp Luminous Flux(lm):
5000
CRI (Ra>):
80
Working Temperature(℃):
-20 - +45
Working Lifetime(Hour):
70000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
CE, EMC, GS, LVD, REACH, SAA, UL
Place of Origin:
Guangdong, China
Brand Name:
ShineLong, ShineLong
Model Number:
SL-P2240-X
Product name:
Led Panel Light
Dimension:
600*600
Power:
40w50w
Power Factor:
>0.95
UGR:
<19
Lumen Efficiency:
100 or 130lm/w
Driver:
HYD/BOKE/Lifud/Meanwell
Warranty:
5 years
Application:
Supermarket, Office, Hotel ,Shopping Mall ...
Lamp Power(W):
40
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
125
Color Temperature(CCT):
3000K/4000K/5000K/6000K
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
5pcs/carton
Port
Shenzhen
Lead Time:
5-15 Working days
Specification

With 7 years of continuous improvement and innovation, LED Panel light evolved to be one of ShineLong’s proudest products because of its high quality and superior performance. Not only does it offer an extensive application range from commercial to industrial for any retrofit or new installation, but it is also a genuine champion for being energy-efficient and cost-effective.

1. Ultra slim structure with thickness 11mm
2. Instant on/off, no noise, no UV, no light leak, no shadow.
3. Mitsubishi diffuser + 6063 aluminum frame, silver/white/black color available
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. IK06, IP20, Glow wire test 850℃
6. Non-dimming, triac dimming, 0~10v dimming, cct dimming, DALI, Meanwell, UGR<19 version available
7. With ENEC/UL/SAA No Flickering Led Power Supply , 5 years warranty
8. Comply with UL,DLC ,SAA, TUV-GS ,CE requirements
9. Support recessed, suspended, surface mounted installation
10.Widely Application : Office/Hospital/University/School /Show room...

Item
SL-P1125-X
SL-P2240-X
SL-P1440-X
SL-P2460-X
Dimensions
295x295x11mm
302x302x22mm
595x595x11mm
602x602x11mm
620x620x11mm
295x1195x11mm
302x1211x11mm
595x1195x11mm
602x1211x11mm
Power
25W
40W
40W
60W
LEDs
78
144
216
312
Bean Angle
120°
CRI
>80
AC Input
200-240V/100-277V
Color Temperature
3000K/4000K/5000K/6000K SDCM <4
Efficiency
100-120lm/w
Lumen Output
2500-3000lm
4000-4800lm
4000-4800lm
6000-7200lm
Product Description

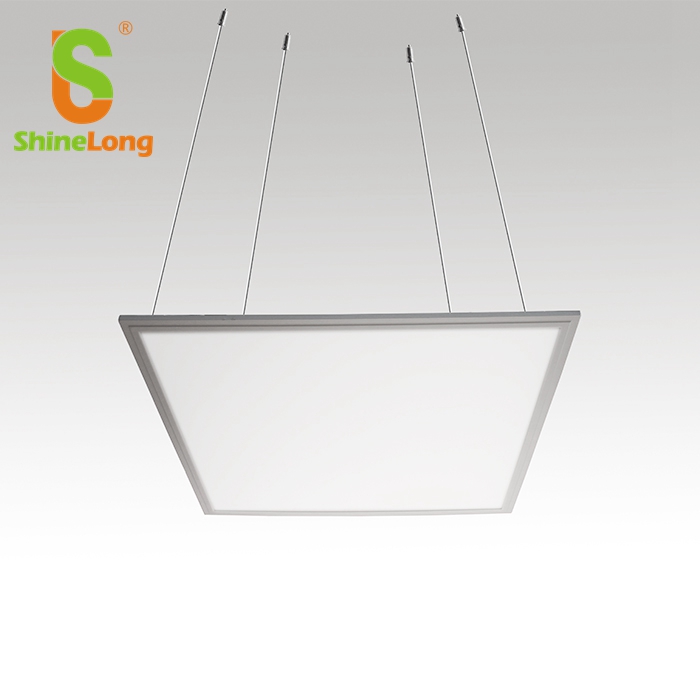

LED Panel Light


TUV-GS, UL, cUL ERP, DLC, CE, ROHS certificated
L80B50>75,000hours

Glow-wire test 850℃ for LED Panel cover
IP54 tested




Frame Color


Mitsubishi diffuser + 6063 aluminum frame

Silver color, white color and black color can be customization




Function


RGB Color Panel light,
CCT dimmable Panel,
0/1-10v dimmable,
DALI dimmable are all available



UGR

UGR<19 item with diamond type lattices diffuser

IES test with own IES testing room

Installation Process
Packing & Delivery

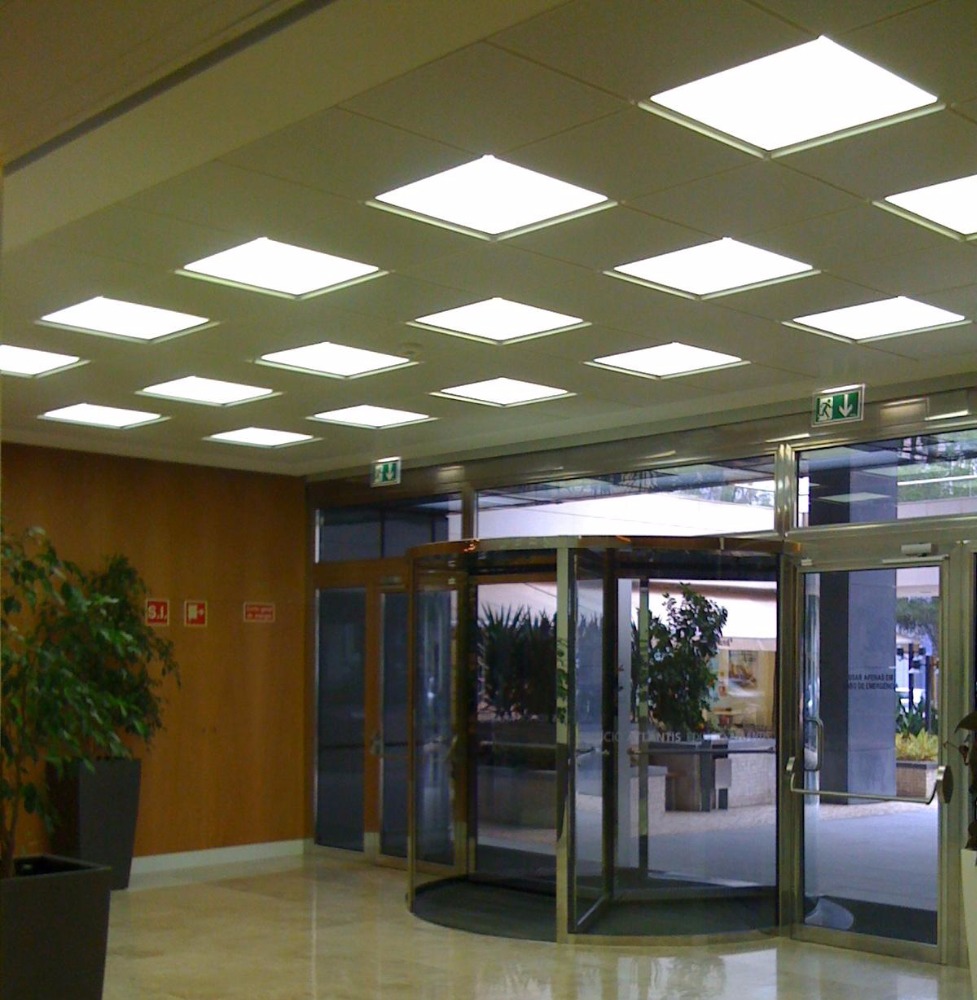

Applications
Certifications
Our Company
FAQ

Q1: Where is your main market?
A1: Our market 90% mainly in EU and North America.

Q2: Do you have real TUV-GS UL cUL DLC certificates for your lights?
A2: Yes, TUV-GS No.: S 50284375 0001/ Report No.: 17037905 001; UL/cUL No.: E469401,E469398

Q3. What about the lead time?
A3: Samples needs 3-5 working days, mass production time needs 1-3 weeks for different bulk order quantity.

Q4. Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. Do you have any MOQ limit for led light order?
A5: Low MOQ, 6pcs/CTN for sample checking is available.

Q6. How do you ship the goods and how long does it take to arrive?
A6: We usually ship by DHL, UPS, FedEx or TNT, which normally takes 3-5 days for delivery. Airline and sea shipping ways for bulk order are also optional.

Q7. How to proceed an order for led light?
A7: Step 1, Let us know your requirements or application.
Step 2, We quote according to your requirements or our suggestion,
Step 3, Customer confirms the samples and places deposit for formal order.
Step 4, We arrange the production.

Q8: Do you offer guarantee for the products?
A8: Yes, we offer 3-5 years warranty to our products.

Q9: How to deal with the faulty?
A9: Step 1, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Step 2, during the guarantee period, we will send new lights with new order for small quantity.
Step 3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation

Q10: What is your led chips? light efficiency? CRI? CCT?
A10: Our chips are Epistar SMD2835, CRI>80, CCT: 3000k/4000k/5000k/6000k, light efficency: 90-140lm/w

Q11: Do you have OEM or ODM experience?
A11: Yes, we focus on led lighting since 2010 and have lots of big cases. we have ability and will be happy to be your official supplier.

Q12: How should I contact you to start business?
A12: You can send enquiry to us, pls click "Send" now. Thank you very much.

Q13: Can we chat on skype?
A13: Yes, of cause at your convenient time. My Skype: bill725198
