Product Details
- Input Voltage(V):
- DC6V
- Lamp Luminous Flux(lm):
- 200
- CRI (Ra>):
- 80
- Beam Angle(°):
- 120
- Working Temperature(℃):
- -25 - 55
- Working Lifetime(Hour):
- 5000
- Lamp Body Material:
- ABS
- IP Rating:
- IP65
- Certification:
- CE, FCC, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- WQF
- Model Number:
- QF-163 02
- Application:
- Garden
- Light Source:
- LED
- Warranty(Year):
- 1-year
- Light Type:
- Solar
- Rated Power:
- 2w
- Product name:
- Solar Lawn Lamp
- Power:
- 1W*2/200lm
- Led Chip:
- Epistar big power chip 2700-3000K
- Solar Panel:
- DC6V/2.5W
- Battery:
- 2200mAh 0.35A
- Charging/Working Time:
- 7H/6H
- Cable:
- 0.2M main line+3M two sublines AntiUV waterpoof plug
- Material:
- ABS+Polysilicon + Al Alloy
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 23X19X9 cm
- Single gross weight:
- 0.95 kg
- Package Type:
- 20pcs/CTN Outer Carton: 45*38*38cm G.W.:12kg
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 200 >200 Est. Time(days) 5 To be negotiated
shenzhen woqinfeng solar garden led light for outdoor garden pathway use brighter aluminium alloy metal sensor path light
Parameters
1. Solar Panel: ABS+Polysilicon 173*193mm
2. Lawn Lamp: Aluminum alloy 43*85*250mm
3. Cables:0.2M (main line)+3M (two sub-lines)
Solar Panel:
1. Polysilicon
2. Output Voltage: 6V
3. Output Current (max): 420mA
4. Power: 2.5W
5. Charge Time:8hrs
Lithium Battery:
1. Lithium battery 18650*1
2. Voltage/Capacity: 3.7V 2200mAh
3. Cell Resistance: <30MΩ
4. Overcharge Protection Voltage: 4.25V+/-0.05V
5. Over-discharge Protection Voltage:2.5V
LED Lawn Lamp:
1. Rated Voltage:3.2V
2. Rated Current: 500mA
3. Rated Power: 0.8W*2
4. CCT: 3000K/6000K /RGB
5. Lumens: 70LM*2
6. Working Time: 6hrs
Photo Show
Features
Photovoltaic new energy, eco-friendly.
2 lamps with spike, adjustable projection angle.
Super bright LEDs, high efficient lens, perfect decorative effect.
Built-in 3.7V/2200mAh Lithium battery, 6hrs working time (2 lamps lit at the same time).
High efficient solar panel, intelligent control, automatically charge during the day and discharge at night.
Over-voltage&over-current IC control protection.
The solar panel comes with a spike and holder, ideal for park, lawn, garden, building exterior wall installation at will.
Practical and novel design.
Notes

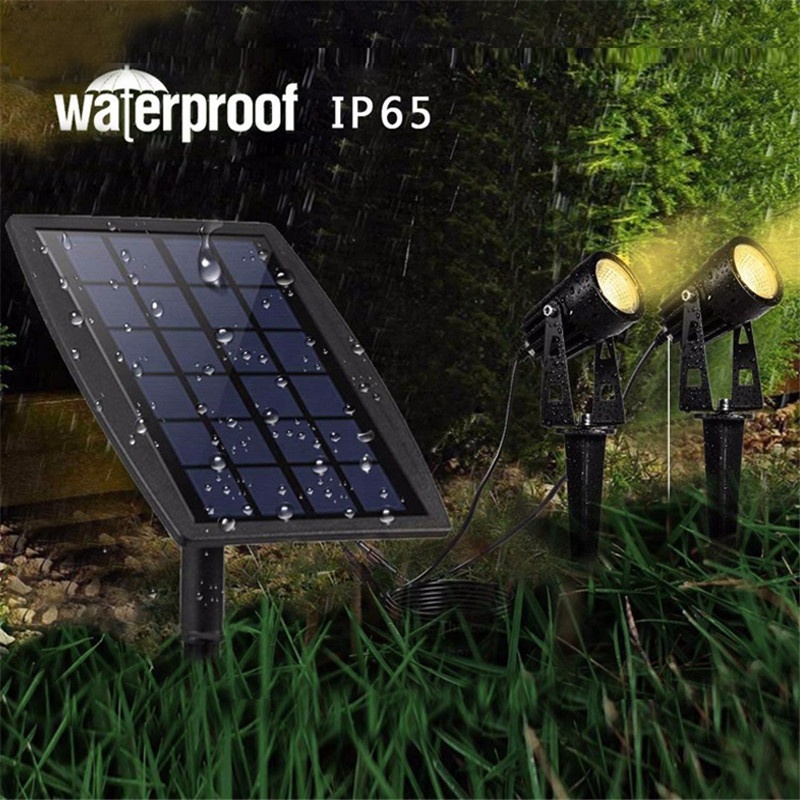

1. IP65 waterproof grade, please do not install in low-lying water places, it is forbidden to use underwater.
2. If long time no use, please firstly put the solar panel under the sunlight to charge, then the lamps will work normally.
3. Charge this product in time if not used for 3 months above.
4. The spike is sharp and make sure that it is firmly fixed. Do not let the children play it in order to avoid personal injury.
Usage
1. Fixed by screws or spike, adjust the solar panel to a 45-degree direction for sunlight exposure.
2. Install the lawn lamps at relevant places that you want.
3. Turn on switch “ON”, it goes to the state of charging and discharging.

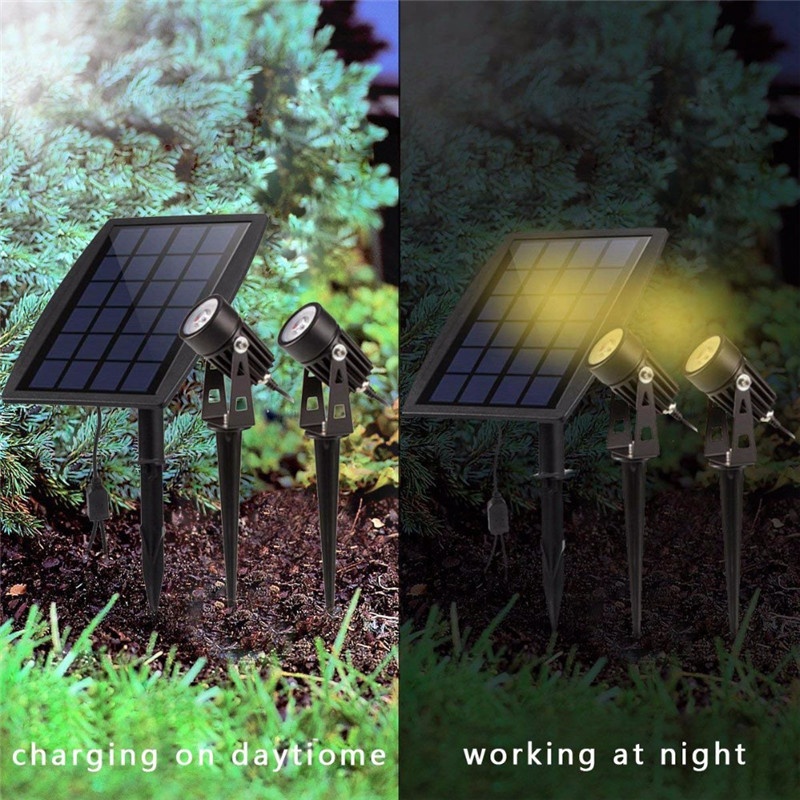

4. Automatically charge under sunlight at daytime and discharge in the evening.
Application
Widely used for landscaping, scenic spots, garden, park, lawn, courtyard and other places as decorative lighting.
All our lights are our factory"s private patent products, CE, ROHS, FCC Certificate, MSDS and battery report UN38.3 all could be provided.
Package Contains
1. Solar Panel*1
2. Lamp*2
3. Screw*2
4. Plastic Bolt*2
5. Spike*3
6. User Manual*1
Inner Box: 200*175*100mm
G.W.:0.87kg
12pcs/CTN
Outer Carton: 55.5*41.5*22cm
G.W.:10.8kg
Shipping
1. OEM/ODM service
Our professional R&D dept could develop different products for different requirements.
2. Quality Control
We have strict quality control system and professional QC team. 24hrs aging test for all products before delivery.
3. Customized packaging service
No matter the inner box or master carton, we could provide customized packaging service for you according to your order quantity.
4. Warranty
We offer warranty for all products.
