Product Overviews

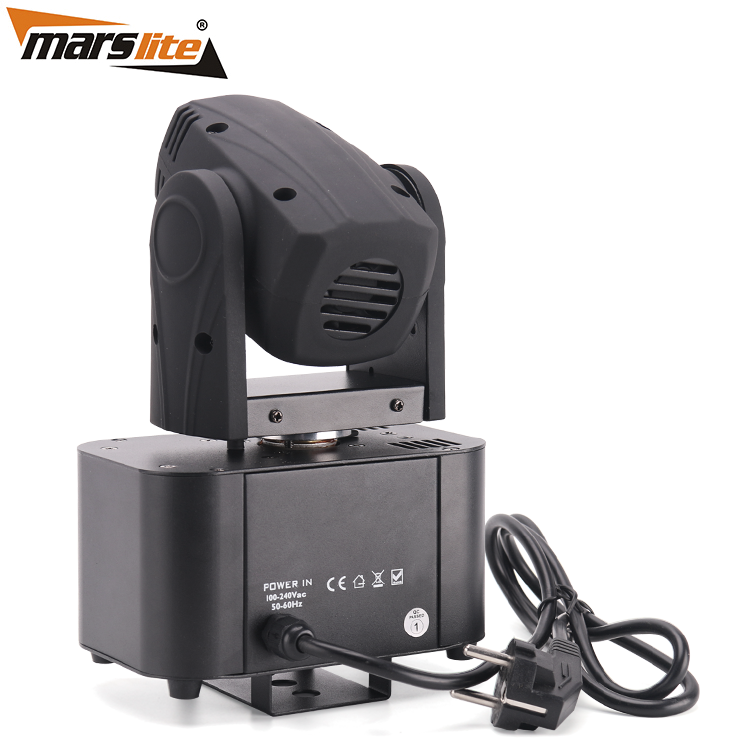

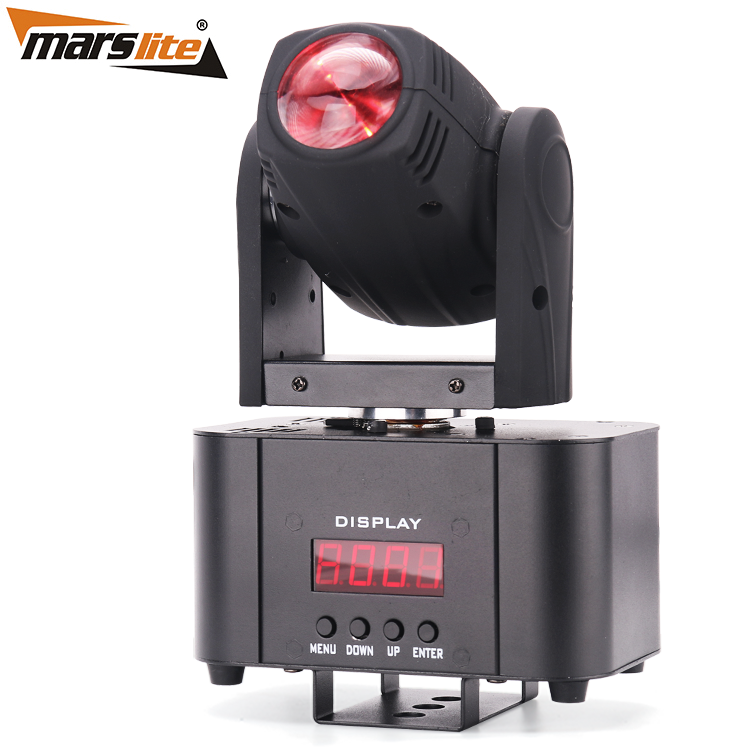

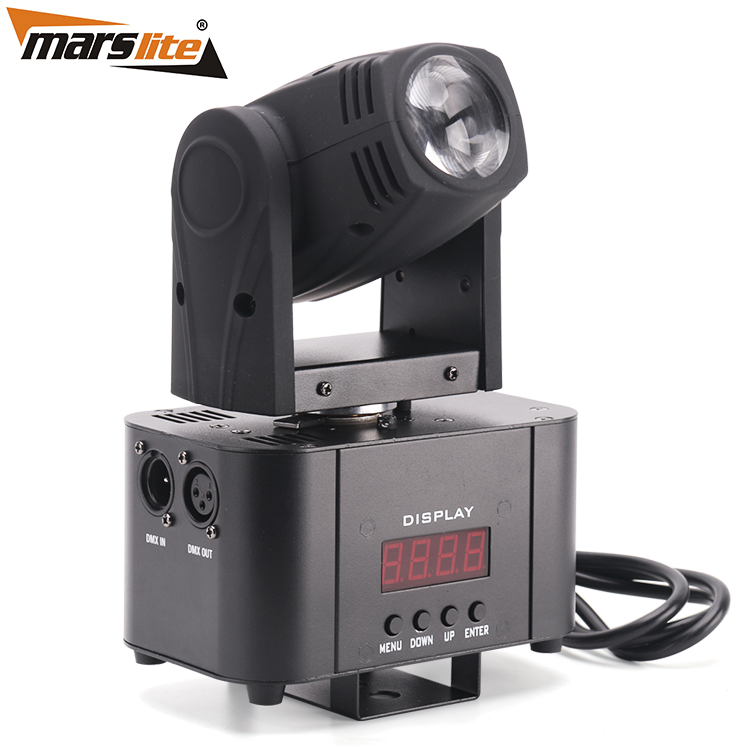

MS-MPS10 1pc 10W RGBW 4in1 LED
◪MARSLITE 10W Mini LED Beam Moving Head is use 10W CREE LED, can RGBW color changeable and make super beam effect.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪it only have 2kg light weight, almost small as human’s hand, very light to take.
◪Great for night club, indoor party, stage, disco, wedding, dj, bar and band.
Technical Data
LIGHT SOURCE: | LEDs: 1pc 10W RGBW 4in1 LED |
LEDs average lifespan: >100,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
OPTICS: | Beam angle: 8° |
Flicker free(refresh rate>400 Hz) | |
Light output:4050Lux@1M,1100Lux@2M,170Lux@5M | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec, various of strobe effect | |
Built-in color changeing macro, fade in & out macro | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 7CH | |
Setting and addressing:4-digit LED | |

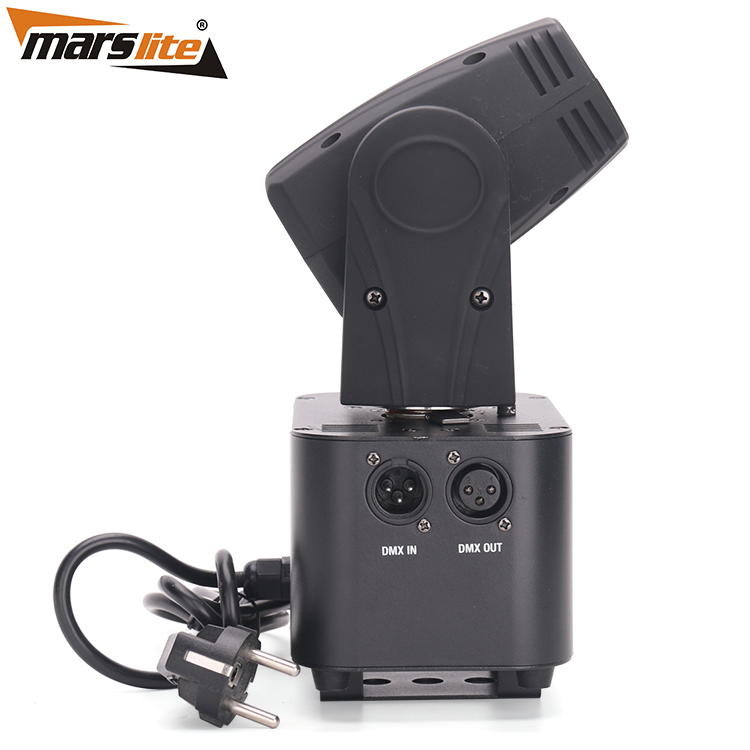

DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
PAN-TILT: | Pan/Tilt:540°/270° |
BODY: | Housing: Paint aluminium, black baking finished |
POWER SUPPLY: | Power consumption: Max. 20W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate:CE,RoHs | |
Environment temp: -20℃-40℃ | |
Light size:23*16*14cm | |
N.W.:2kg | |
G.W.:2.3kg | |
Package size:29*21*22.5CM |
Technical Details
Effect diagram

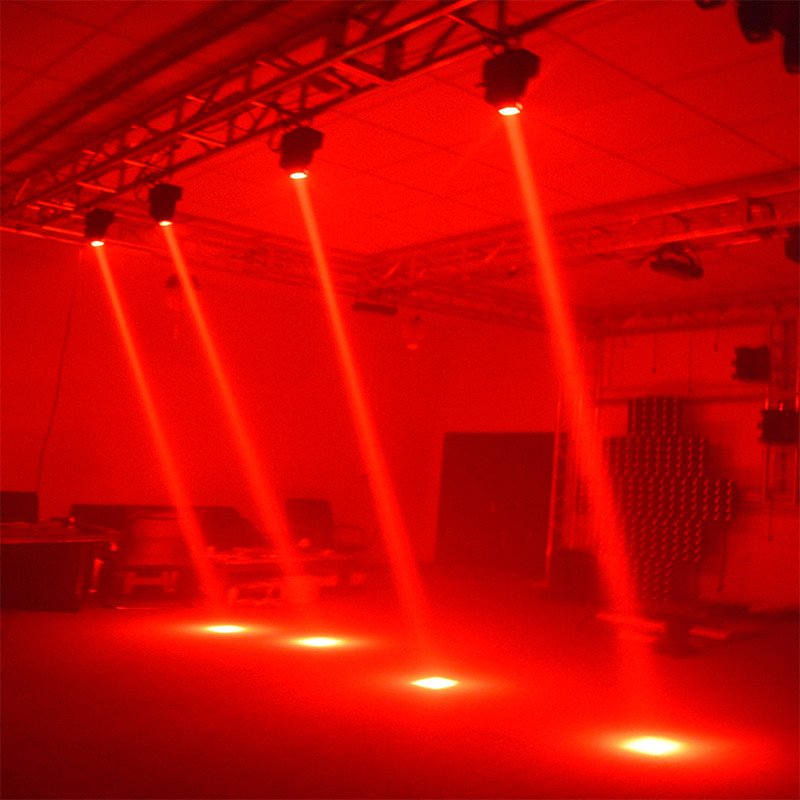

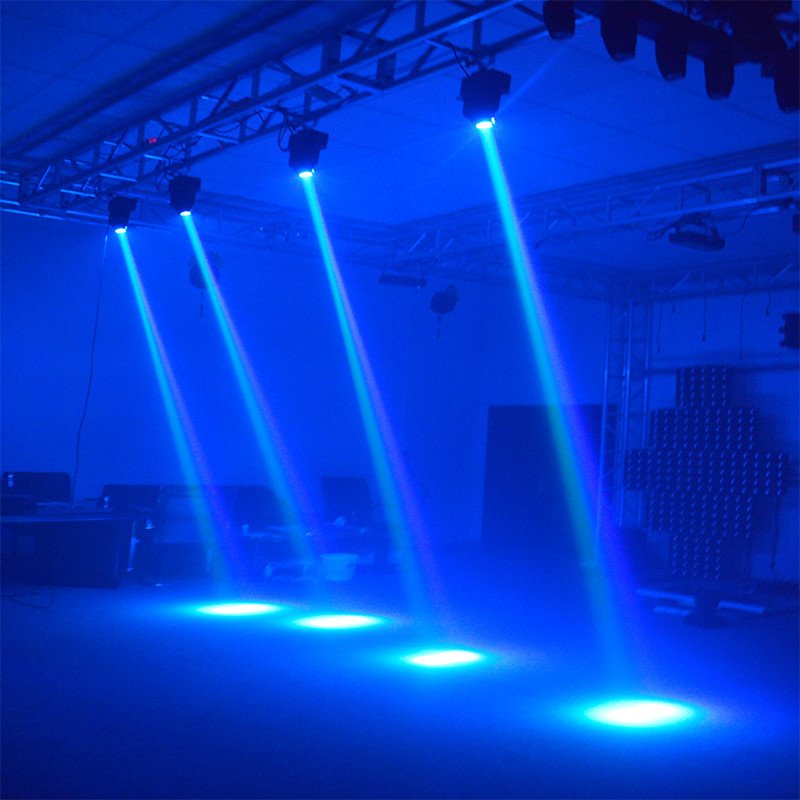

Effect picture - colorful
Different visual effects

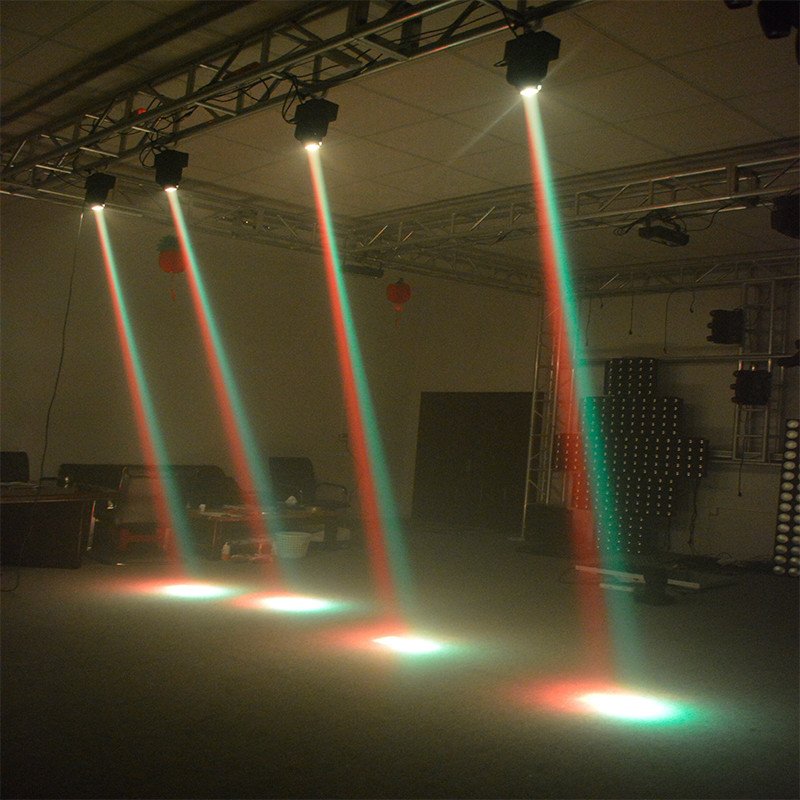

Effect picture - colorful
Different visual effects

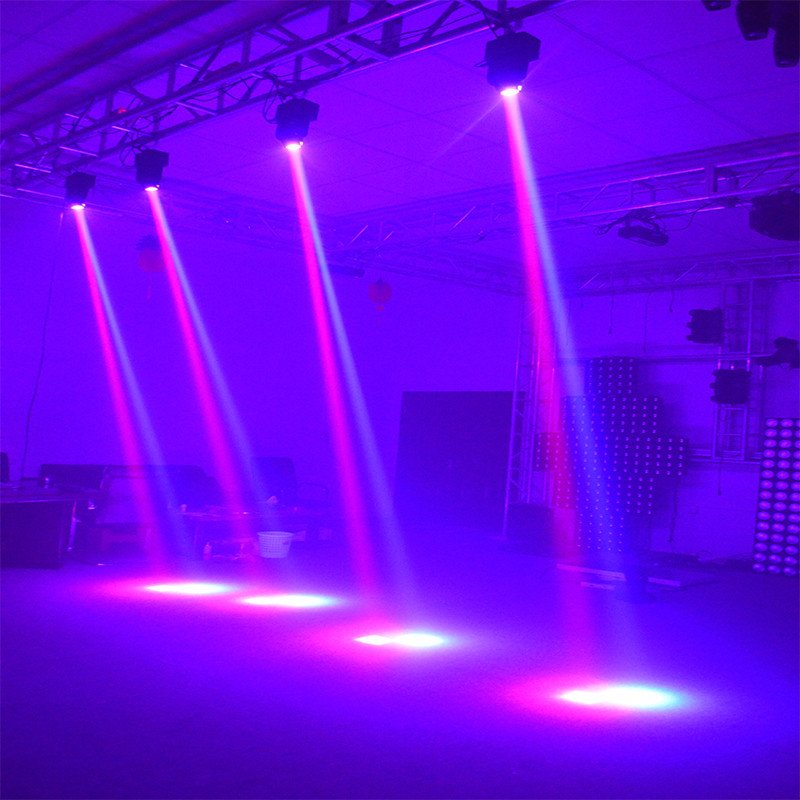

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

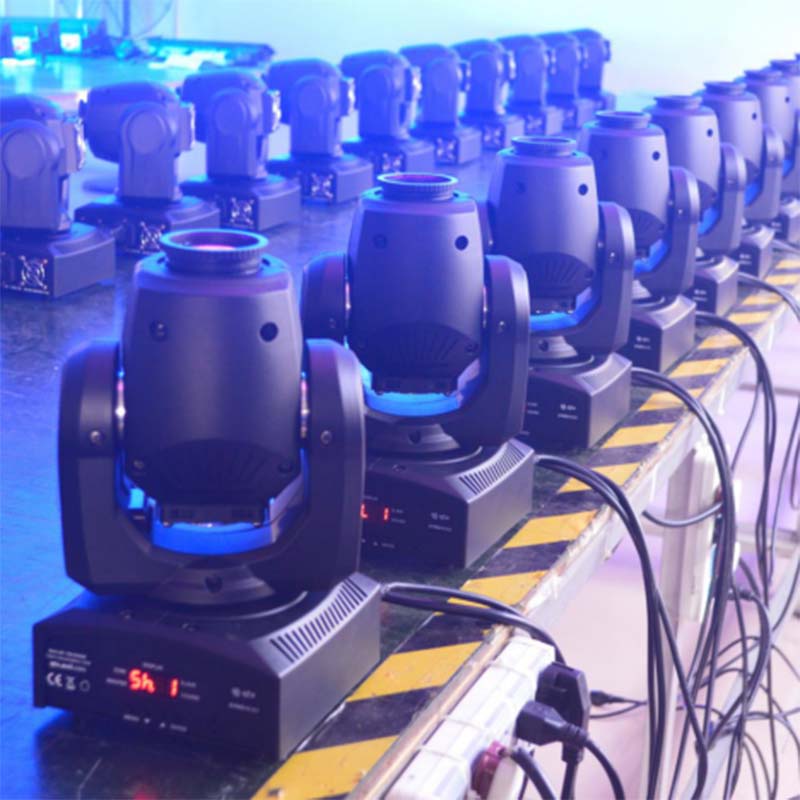

Test chart

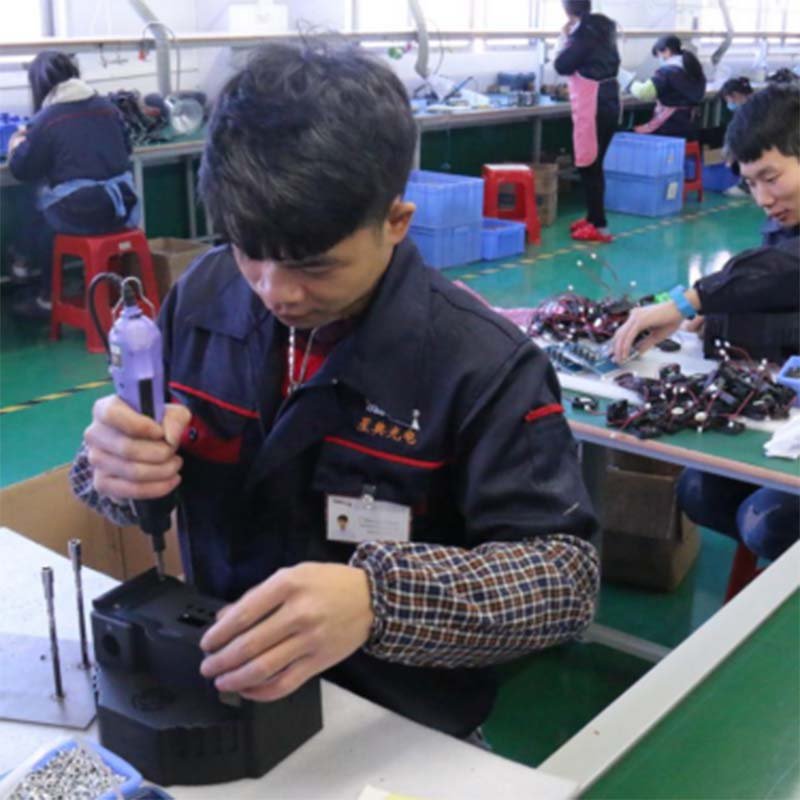

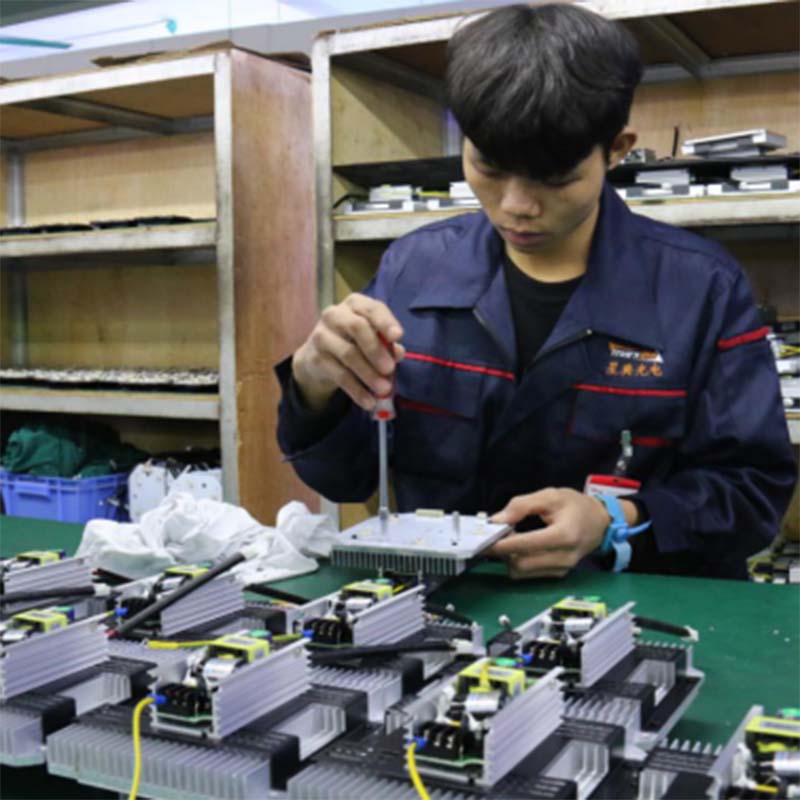

Production line
Packing
