SMD 5050 flexible led strip lights led stripe 5050 12v rgb

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 21:38

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Type:

Array

Product Details

Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V/24V
Lamp Power:
4.8W/M
Lamp Luminous Flux(lm):
78
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PVC
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-OID5-12V/24V
Light Source:
LED
Color Temperature(CCT):
6000-6500K
LED Light Source:
SMD5050
LED Quantity:
60LEDs/M
Key word:
led strip 220v ip65
IP Rating:
IP20
Warranty:
3 years
Beam Angle:
120 degree
Color:
R,G,B color optional
CRI:
80
Output channel:
5 channels
Item Type:
Light Strips
Supply Ability
Supply Ability:
100000 Roll/Rolls per Month led strip 220v ip65
Packaging & Delivery
Packaging Details
5m a roll, anti-static packing
Port
Shenzhen

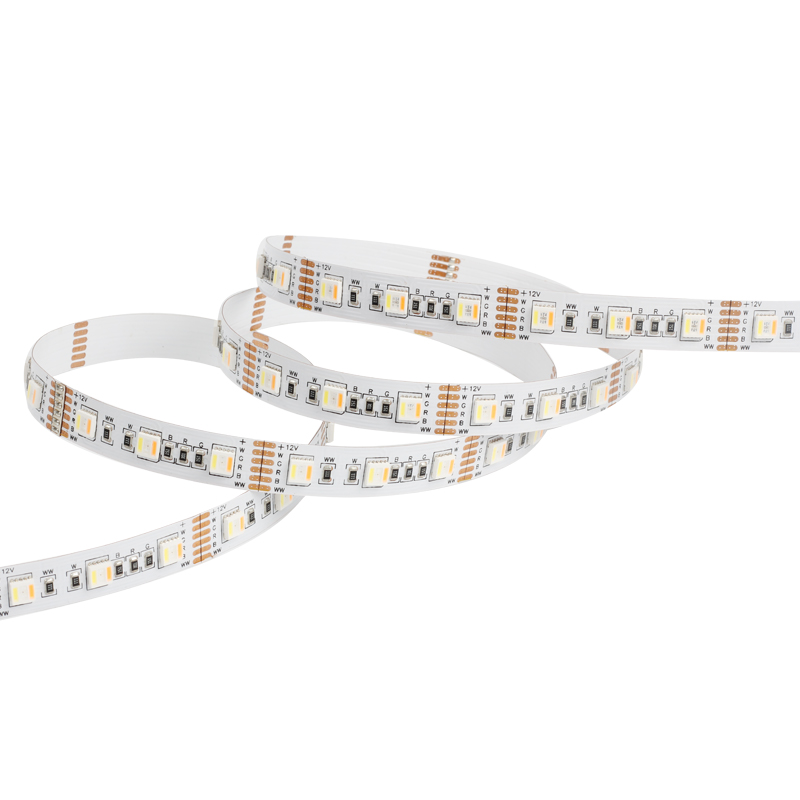

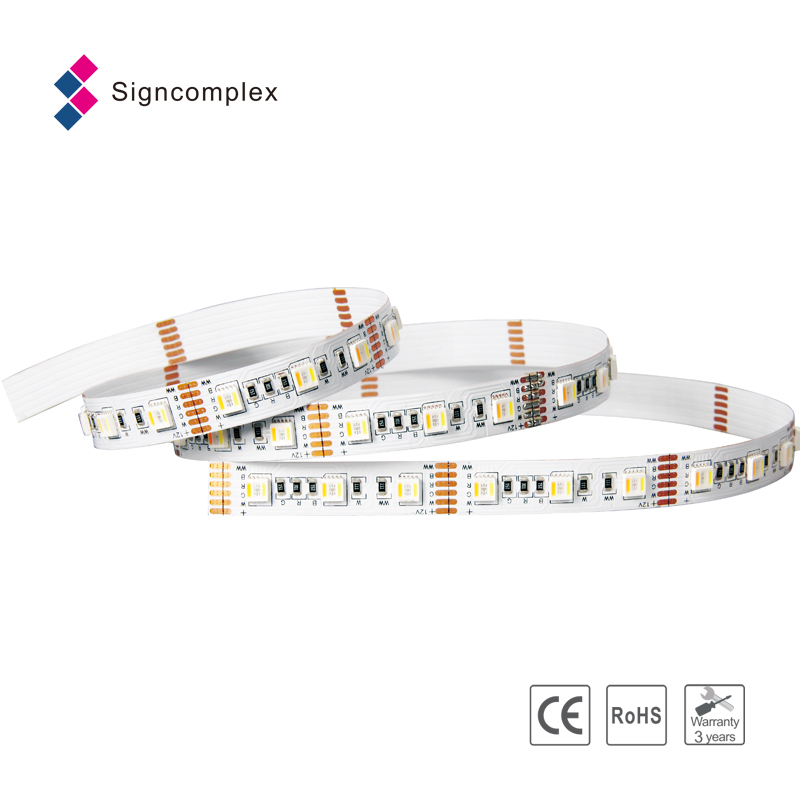

SMD 5050 Flexible Led Strip Lights Led Stripe 5050 12v RGB





Features:

1. 5050 assembled LEDs ;

2. CRI 80, 5 colors mixed to reach 65536 colors, and the LED strip is equipped with special controller to control 52 kinds of variable modes;

3. In order to meet the needs of different lengths by cutting off the connections, the minimum shear length of the 12V rod is 50mm, and the minimum shear length of 24V is 100mm; The change of the length of the self-defined shear length can be the integer double of the minimum cut length. 12 V / 24 VDC;

4. CE, RoHS compliant, 3 years warranty.

Application:

1. Stage lighting;

2. Festival,activities,exhibition lighting,etc;

3. Backlight of signage;

4. Contour lighting;

5. Landscape decoration lighting;

Specifications:

Model ColorLumenLed TypeLed Qty(leds/m)Beam angleDC VoltageRated watt(w/m) IPCRI
SC-OID5-12V/24VR78505060120°12/24V4.82080
G340505060120°12/24V4.82080
B63505060120°12/24V4.82080
RGB453505060120°12/24V14.42080
RGB+ WW+W1528505060120°12/24V28.82080
W721505060120°12/24V7.22080
WW528505060120°12/24V7.22080







Main products



Certifications



Company Image









Production line



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- panel lights
- linear light
- high bay
- corn bulb

- tube

-LED controller

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
