Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Input Voltage(V):: 24V/ 100-240V

Lamp Power(W):: 20

CRI (Ra>):: 80

Lamp Luminous Flux(lm):: 2000

IP Rating:: IP65

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -40 - 45

Emitting Color:: White

Certification:: BV, CCC, CE, CQC, EMC, FCC, RoHS

Place of Origin:: Guangdong, China

Base Type:: 2G11

Brand Name:: ONN

Model Number:: M9 Series

Light Source:: LED

Product Name:: Explosive proof light, explosion proof light

Power supply:: build in

Rated power:: 8W/12W/18W/24W

Warranty:: 3-5 years

Mounting:: Surface mounting or magnetic mounting

Beam angle:: 120 degree

Central LUX:: 70cm 450Lux

Lead time:: 5-10 days

Working temperature:: -40-50°

Length:: 300/400/600/800mm

Item Type:: Explosion-proof Lights

LED Light Source:: Epistar

Lamp Luminous Efficiency(lm/w):: 95

Color Temperature(CCT):: 3000-6000

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Water-proof Led Machine Work Light / CNC Machine Lighting

Packaging & Delivery

Packaging Details: Water-proof Led Machine Work Light / CNC Machine Lighting
1pcs/ inner box ; 12pcs/ outer box
According to customr's requests

Port: Shenzhen, China

ONN-M9 Explosive proof light, Water-proof Machine Work Light / CNC Machine Lighting, IP67 machine LED lighting 8W /12W /16W /24W

Application :

All kind of refrigeratory , assembly line Machine interior lighting, food factory, pharmaceutical factory, agriculture industry , mushroomindustry (applicable for all the places which is not easy to change place ,have the needs of water-proof, explosion-proof,it is the revolutionary alternatives of traditional "water resistant" and explosion-proof lights).

Specifications

Water-proof Led Machine Work Light / CNC Machine Lighting

Super Bright Led Tube Light
24v AC/DC 100-240v AC
CE-EMC, FCC , CCC , IP65 , ISO9001
3-5 years warranty

Water-proof Led Machine Work Light / CNC Machine Lighting

1. Specifications of Water-proof Led Machine Work Light / CNC Machine Lighting

Picture	Product Code:	ONN-M9
	Item Type	Led Machine Work Light
	Input voltage:	100-240V AC 24V DC/AC
	Length:	300 / 400 / 600 / 800mm
	Wattage:	8w / 12w / 18w / 24w
	Mounting :	Fixed with clips or pin screw
	LED:	Smd 3014
	Lumens:	2000lm
	Efficiency:	100lm/W
	CRI:	>80
	Color:	Warm white / Neutral white / Cool white
	Color temp.:	2700-3200K / 4000-4500K / 5500-6500K
	Beam angle:	120
	Material:	Aluminium body + Tempered glass
	Body color:	Silver
	Certificates:	CE-EMC, FCC , CCC , IP65 , ISO9001
	Life Span:	50000 Hours

2. Features of Energy Saving Water-proof Led Machine Work Light / CNC Machine Lighting

Excellent Taiwan chip, high . Low thermal resistance ,good thermal condutivity , low light decay .
CRI> 80.
Large double energy-saving , long lifespan , maintenance-free man-hour cost , especially suitable for ultra-low temperature cold storage enviroments .
Resistant to low temperature of -40°C, no frosting , instant starting .
Big allowance design,imported Rubycom capacitance,increase the lifespan of driver obviously,
Die-casting aluminum body,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.
Patented construction,consise and generous,360°adjustable, surface mounting or magnetic mounting, easy installation.
Modular design,easy to replace once the driver failed.
CE FCC and IP65 certificated 3-5 years warranty .

3. Sales terms

MOQ: Full carton ( 12pcs ) . Accept sample order
Warranty: 3 Years
Payment: T/T, Paypal, Western Union. 30% payment in advance, balance paied before shippment.
Production Time: 5-7 days for sample order, 7-15 days for official order

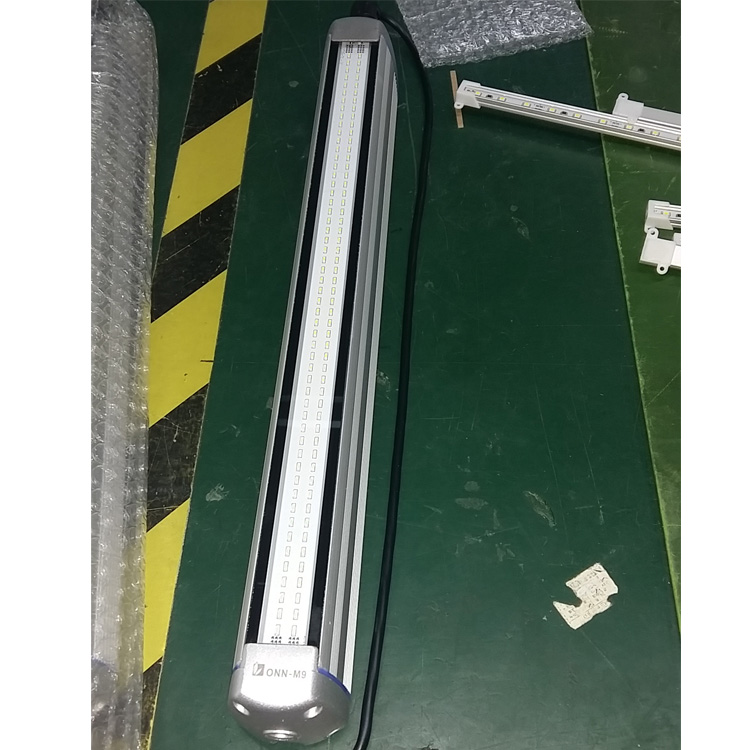

4. Pictures of Water-proof Led Machine Work Light / CNC Machine Lighting

Drawing :
