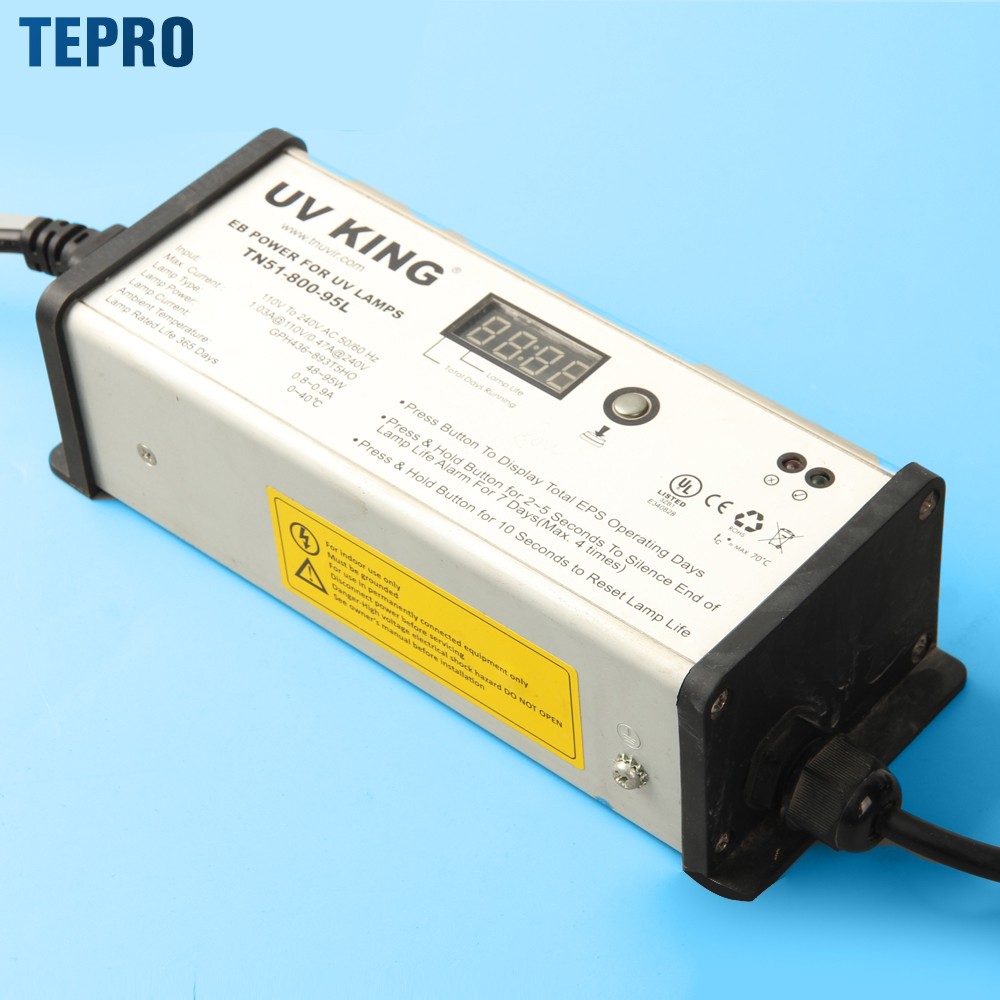

TN51-800-95L  800mA 95W Ballast

Ballast is a necessary electrical component of discharge luminescent device. It can generate instantaneous high voltage when the starter is disconnected, so that the luminescent device starts to emit light, and then limit the current to control within the rated range of the luminescent device.

Energy saving

The lamp's electronic ballast mainly USES the frequency of 20 ~ 60kHz to supply the lamp, which makes the light efficiency of the lamp increase by about 10% compared with the power frequency (according to the length of the lamp is 4 feet), and its own power consumption is low, so that the total input power of the lamp decreases by about 20%, which has better energy saving effect.

2. More stable luminescence

It is beneficial to improve visual resolution and efficiency.Reduce the visual fatigue of continuous operation, which is beneficial to protect eyesight.

3. A more reliable starting point

Preheat the lamp tube after a successful starting point, avoid multiple starting points.

4. High power factor

The power factor of fluorescent lamp that accords with national standard above 25W is higher than 0.95.However, it should be noted that the national standard sets a very high harmonic limit for lamps below 25W, so that its power factor drops to 0.7~0.8.

5. Stable input power and output luminous flux

High quality products have good voltage stability performance, when the power source, voltage deviation is large, still can maintain the constant power of the light source, stable illumination, is conducive to energy saving.

6. Extend lamp life

The constant power of high quality products and the drop of tube current, as well as the reliable starting point can prolong the life of the lamp.

Tepro-Tn51-800-95l-tepro Uv Lamps


Product Parameters


Tepro-Tn51-800-95l-tepro Uv Lamps-1


Type

Size

  Input Voltage

  Lamp Power

  Lamp Specification

RW3-425-18A

 75*48*39mm

110-120V±10%

10-17W

UVC11W-UVC16W

RW5-425-40

 105*60*31mm

220-240V±10%

10-40W

GPH212-843T5
G36T5

UVC36T5
CUH36W

RW5-425-40A

 105*60*31mm

110-120V±10%

10-40W

GPH212-843T5

UVC11W-UVC16W

RW12-180-10

  81.5*42*23.5mm

 220-240V±10%

4-8W

UVC4W

UVC6W

UVC8W

   RW12-180-10A

81.5*42*23.5mm

110-120V±10%

4-8W

UVC4W

UVC6W

UVC8W

RW12-425-18

81.5*42*23.5mm

220-240V±10%

10-17W

GPH287-357T5

RW12-425-18A

81.5*42*23.5mm

110-120V±10%

10-17W

GPH287-357T5

UVC16W

RW15-425-18

81.5*42*23.5mm

220-240V±10%

10-17W

GPH212-357T5

UVC11W-UVC16W

RH9-2100-320

250*108*57mm

220-270V±10%

200-320W

GPHHA1000T6L

GPHHA1554T6L

RL1-425-90

215*44*26mm

220-240V±10%

40-79W

GPH1148-1630T5

G48T5 G64T5
G67T5 UVC64T5

RL1-800-100

215*44*26mm

220-240V±10%

55-95W

GPH436-893T5HO

GHO36T5

UVC75WHO

RL11-425-40

165*38*26mm

220-270V±10%

21-40W

G36T5

GPH212-843T5L

UVC40W

TN51-425-40L

200*80*57mm

220-270V±10%

10-40W

GPH212-843T5L

UVC11W-UVC40W

TN51-800-95L

200*80*57mm

220-270V±10%

48-95W

GPH436-1063T5HO
CUH35WHO

CUH60WHO
CUH95WHO

TN2-800-2/75U

220*70*30mm

110-240V±10%

75-155W

GHO36T5L
GPH436/846T5HO
TUV PL-L35/60WHO
TUV36T5HO
GHO64T5L
GPH1554T5HO
TUV PL-L95WHO
TUV64T5HO
