Product Details

Product Description

PRODUCT PARAMETERS

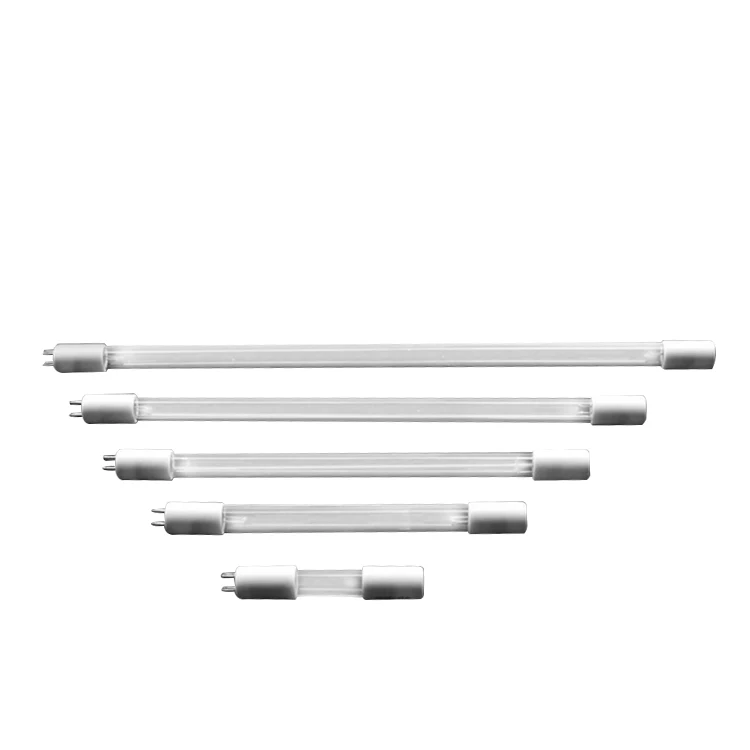

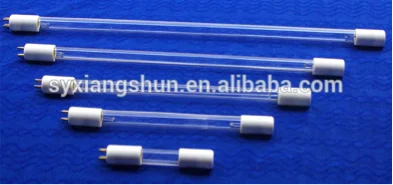

T5 sing-end UV Lamps and Quartz Tubes for UV Sterilizers

1, Radiating mainly short-wave ultr-violet rays of 253.7nm(UVC). The UVC has stron destructive effect on DNA systemiztion, inhibiting pathogen reproduction, and causing to die of germs;

2, The lamp tube is made of special material, it can transmit more than 90% UV-C;

3, Widely used in hospital disinfection, food sanitation, instrument disinfection, different sanitary places and leather aging.

Specifications:

Item	Tube dia.	BF-BF	Arc length	Watt	Current	UV output at 254nm
Item	mm	mm	mm	W	mA	μW/cm2	W
GPH212T5VH	15	212	132	10	425	26	2.7
GPH287T5L	15	287	207	14	425	40	4
GPH303T5L	15	303	223	15	425	43	4.3
GPH357T5L	15	357	277	17	425	57	5.7
GPH436T5L	15	436	356	21	425	72	7.3
GPH436T5VH	15	436	356	21	425	72	7.3
GPH793T5L	15	793	713	38	425	125	13.5
GPH793T5VH	15	793	713	38	425	125	13.5
GPH843T5L	15	843	762	41	425	136	15
GPH843T5VH	15	843	762	41	425	136	15
GPH1148T5L	15	1,148	1,067	55	425	174	21
GPH1148T5VH	15	1,148	1,067	55	425	174	21
GPH1554T5L	15	1,554	1,474	75	425	223	31
GPH1554T5VH	15	1,554	1,474	75	425	223	31
GPH1630T5L	15	1,630	1,550	79	425	228	32.5
GPH1630T5VH	15	1,630	1,550	79	425	228	32.5
