Brand： |
none |
Address： |
Guangdong Dongguan |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
brand： |
Array |
type： |
Array |
size： |
278x120mm |
Product Details
|
Type |
Wattage |
Temperature |
Beam |
Voltage |
CRI |
Light source |
Life(H) |
Size |
|
TK040S |
□24W |
□2700K □3000K □3500K □4000K □5000K |
□15° □20° |
AC220V |
≧80 |
CREE/SHARP |
30000 |
278X120mm |
|
□30W |
●High luminous efficacy ●High color rendering ●Less energy cost ●Low lighting decay ●No strobe ●No radiation ●Long life
Sumbao Professional LightingThe new COB packaging technology, it’s imported CITIZEN chip, and shows its advantage.
Designed for the second light distribution technology, it can precise control of light, the smallest angle up to 15 degrees, the maximum angle up to 35.
Lens is made of optical PC material; light transmittance radiator rate is more than 95%. A perfect parabola design, it has function of gather reflection, can effective the optical problem of yellow ring, macular, dark spots, clutter, etc.
Imported CITIZEN—COB, it has the new COB packaging technology, high luminous efficacy, high color rendering、 high heating dissipation and long life.

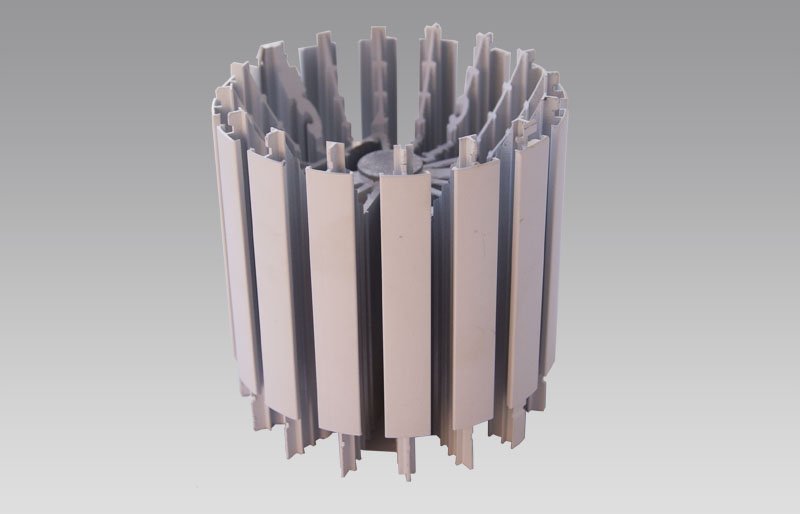

The radiator is used of ultrathin thin fin design, it is made of industrial pure Al. Fins are slim and external, but fast heat conduction speed, good heat radiating performance.
The Anti dazzle part is using the most advanced light technology, for the production of PC engineering plastics, it improve the efficiency of light in the maximum extent. No excess reflected light almost; make the anti dazzle achieve the best.
It has single circuit electric box. According to customer’s demand, we will choose one circuit or three circuits to install.
Optical reflecting cup， with high light transmittance PC lens, make the light uniform. The three light distribution technology, to be the leader.
There is a constant current driving and radiating fin. Guide box with hot hole can help heating dissipation; it can improve the service life of the drive.
it attractive in delicate appearance, design is unique, lines is smooth, modeling is fashion.
It’s easy to install and convenience to adjust, It can achieve the horizontal rotation and vertical direction of 350° rotation to meet different demand for spot in all scenes.
Manual control design, customer can adjust itself according to the requirements, It’s convenience and easy.
|
|
|
Light distribution curve
-
Beam
Graph -
9°
-
10°
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4000K nature white is appropriate for light color furniture, supermarket, clothing store etc.
-
The 5700K cold white is applying for modern furniture, upscale market, and exclusive shop.
Comparison of spot Angle
-
15°
-
20°
-
29°
The installation instruction
1: The railway is fixed on the ceiling, and then makes the circuit connected.
2: The contact copper sheet shifting to the position which parallel to the track, and put into orbit, toggle dial handle 90 degrees to make the lamp copper card in orbit(Note: if the light is 3 lines, you should first make the contact copper sheet aim at tract direction. The electric box has prompted a slogan, please operating to the prompt sign)
3: Check whether the lamp is installed firmly, then you can turn on the light.
4: If you want to adjust the direction of the lamp, please hold the lamp holder, and move around.
5: Here is the installation is complete.
