Brand： |
none |
Address： |
Guangdong Dongguan |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
brand： |
Array |
type： |
Array |
size： |
200x91x168mm |
Product Details
|
Type |
Wattage |
Temperature |
Beam |
Voltage |
CRI |
Light source |
Life(H) |
Size |
|
TK041S |
□24W |
□2700K □3000K □3500K □4000K □5000K |
□15° □20° |
AC220V |
≧80 |
CREE/SHARP |
30000 |
200X91X168mm |
|
□30W |
● High luminous efficacy ● High color rendering ● Less energy cost ● Low lighting decay ● No strobe ● No radiation ● Long life
-
Sumbao
Professional Lighting
color index, it can reduce the product color, make your goods more lovely. -
Sumbao
Professional Lighting
Designed for universal, it can satisfy to the requirements of difference scenes for difference angles on spot. -
Sumbao
Professional Lighting
Designed for the second light distribution technology, it can precise control of light, the smallest angle up to 15 degrees, the maximum angle up to 29 degrees. -
Sumbao
Professional Lighting

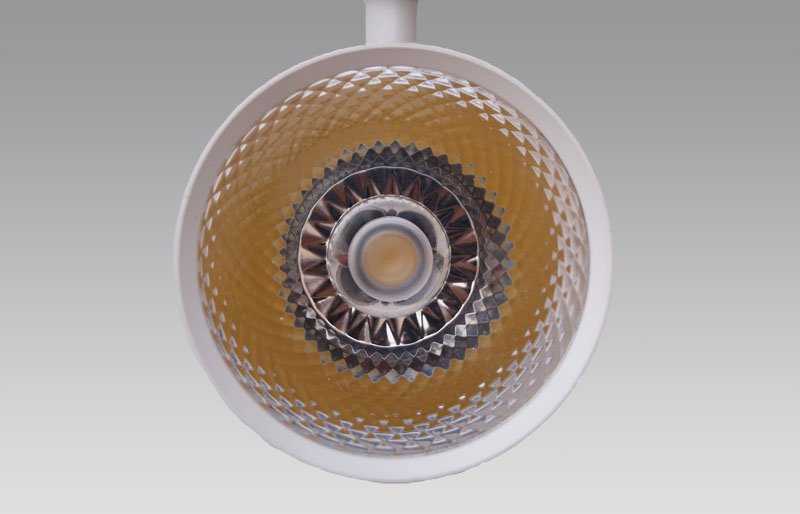

Optical reflecting cup with high light transmittance PC lens, make the light uniform. The three light distribution technology, to be the leader. -
Sumbao
Professional Lighting
Dustproof design, and beautify appearance, it can effectively prevent mosquitoes from entering the inside the lamp body, and easy to clean -
Sumbao
Professional Lighting
Imported CITIZEN—COB, it has the new COB packaging technology, high luminous efficacy, high color rendering、 high heating dissipation and long life.
-
Sumbao
Professional Lighting
There is a constant current driving and radiating fin. Guide box with hot hole can help heating dissipation; it can improve the service life of the drive. -
Black and white is available. The more color temperatures, more angles and more wattages design make the choice various. -
Sumbao
Professional Lighting
Delicate appearance, design unique and fashion, the lines is smooth. -
Sumbao
Professional Lighting
It has single circuit electric box. According to customer’s demand, we will choose one circuit or three circuits to install.
Clothing store Exhibition room Model furniture
Light distribution curve
-
Beam
Graph -
15°
-
20°
-
29°
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4000K anature white is appropriate for light color fumiture,supermarket,clothing store etc.
-
The 5700K cold white is apply for modern furnature,upscale market,exclusive shop.
Facular color temperature contrast
-
15°
-
20°
-
29°
The installation instruction
1: The railway is fixed on the ceiling, and then makes the circuit connected.
2: The contact copper sheet shifting to the position which parallel to the track, and put into orbit, toggle dial handle 90 degrees to make the lamp copper card in orbit(Note: if the light is 3 lines, you should first make the contact copper sheet aim at tract direction. The electric box has prompted a slogan, please operating to the prompt sign)
3: Check whether the lamp is installed firmly, then you can turn on the light.
4: If you want to adjust the direction of the lamp, please hold the lamp holder, and move around.
5: Here is the installation is complete.
