Share
Brand： |
none |
Address： |
Guangdong Dongguan |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
brand： |
Array |
type： |
Array |
size： |
244xD97mm |
Product Details
|
Type |
Wattage |
Temperature |
Beam |
Voltage |
CRI |
Light source |
Life(H) |
Size |
|
TK048S |
□24W |
□2700K □3000K □3500K □4000K □5000K |
□15° □20° |
AC220V |
≧80 |
CREE/SHARP |
30000 |
244X97mm |
|
□30W |
-
Patented product, delicate appearance, unique design.
-
Compact structure, complete factions, convenient installation.
-
High-tech configuration, perfect effect, the light is soft and uniform, to be comfortable.
-
Stable performance, safety and reliable, long service life.
-
Black and white is available, match fashion, widely application.
-
Using high quality materials and SHARP chip, low light decay, saving energy and protect environment.
-
Sumbao
Professional Lighting
This product is patented; it attractive in delicate appearance, design is unique, modeling is fashion. -
Sumbao
Professional Lighting
Dustproof design, and beautify appearance, it can effectively prevent mosquitoes from entering the inside the lamp body, and easy to clean -
Sumbao
Professional Lighting
This apart is simple, but the complete function make the install is convenience and quickly. It can achieve the horizontal rotation 90° and vertical direction of 350° rotation to meet different demand for spot in all scenes. -
Sumbao
Professional Lighting
It’s designed of unique dissipation, the fin is thin, and the cooling area is large. All of the feature can help heating dissipation quickly. It’s easy to satisfy for the heating dissipation demand of chip. -
-
Sumbao
Professional Lighting
There is a constant current driving and radiating fin. Guide box with hot hole can help heating dissipation; it can improve the service life of the drive.
COB integrated light source TK048S is made from SHARP-COB, it has features of new COB packaging technology, high luminous efficacy and high color rendering. The ceramic base, extreme cooling and light decay, to be longer life.
-
Sumbao
Professional Lighting
The Anti dazzle part is using the most advanced light technology, for the production of PC engineering plastics, it improve the efficiency of light in the maximum extent. No excess reflected light almost; make the anti dazzle achieve the best. -
Sumbao
Professional Lighting

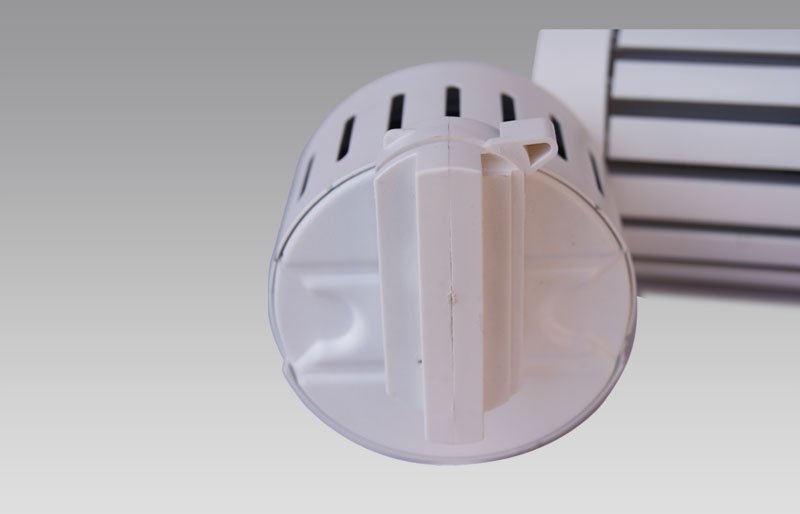

Contact sheet copper plating, high strength, and excellent conduction effect, it’s convenience to install. We can accord customer needs to order differences loop adapter. -
Sumbao
Professional Lighting
Lens is made of optical PC material; light transmittance rate is more than 95%. A perfect parabola design, it has function of gather reflection, can effective solve the optical problem of yellow ring, macular, dark spots, and clutter, etc. -
Sumbao
Professional Lighting
Designed of the second light distribution technology, ensure strict beam angle control, no macular, no shade, no clutter. The light is soft and uniform in a gradual way; it is giving customer a comfortable feeling. -
Sumbao
Professional Lighting

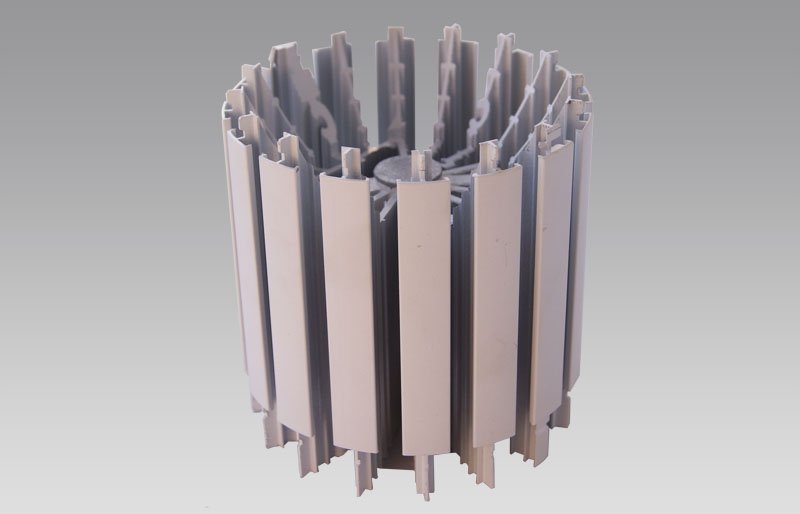

The radiator is used of ultrathin thin fin design, it is made of industrial pure Al. Fins are slim and external, but fast heat conduction speed, good heat radiating performance -
Sumbao
Professional Lighting
It’s made of the intelligent IC and high quality electronic components, the constant current control, with overvoltage, short circuit protection. No stroboscopic, more stable performance and longer life.
Light distribution curve
-
AngleGraph
-
9°
-
10°
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4000K anature white is appropriate for light color fumiture,supermarket,clothing store etc.
-
The 5000K cold white is apply for modern furnature,upscale market,exclusive shop.
Facular color temperature contrast
-
15°
-
20°
-
29°
The installation instruction
1: The railway is fixed on the ceiling, and then makes the circuit connected.
2: The contact copper sheet shifting to the position which parallel to the track, and put into orbit, toggle dial handle 90 degrees to make the lamp copper card in orbit(Note: if the light is 3 lines, you should first make the contact copper sheet aim at tract direction. The electric box has prompted a slogan, please operating to the prompt sign)
3: Check whether the lamp is installed firmly, then you can turn on the light.
4: If you want to adjust the direction of the lamp, please hold the lamp holder, and move around.
5: Here is the installation is complete.
