Product Details
|
Type |
Wattage |
Temperature |
Beam |
Voltage |
CRI |
Light source |
Life(H) |
Size |
|
TK049S |
□10W □18W |
□2700K □3000K □3500K □4000K □5000K |
□12° □15° |
AC220V |
≧85 |
CREE /SHARP |
30000 |
215X97mm |
-
Patented product, delicate appearance, unique design.
-
Compact structure, complete factions, convenient installation.
-
High-tech configuration, perfect effect, the light is soft and uniform, to be comfortable.
-
Stable performance, safety and reliable, long service life.
-
Black and white is available, match fashion, widely application.
-
Using high quality materials and SHARP chip, low light decay, saving energy and protect environment.
|
WHY Choice Sumbao We use high-tech chip on each product. COB integrated light source TK050 is used of SHARP-COB, It has the characteristic of new COB packaging technology, high luminous efficacy and high color rendering. The ceramic base, extreme cooling and light decay, to be longer life. |
|
| Do You Know? |
|
* What are the advantages compared to Ceramic base COB chip and Al board COB chip? |
|
1) The Flat light source module of this ceramic base is high reliability. The ceramic and chip is AL2O3 Al material. The coefficient of expansion is similar, so it will not be happened solder caused by temperature change, leading the lifetime decay and death lamp, to ensure the stability of chip. The ceramic base COB chip makes stable performance and no plaque. 2) When the light source on the ceramic works, the junction temperature of fluorescent powder and silica gel can be controlled below 120°C. And the LED still work normally when the chip surface temperature is 80-90 degrees. 3) The smooth consistency is good, light angle is widely, and light is uniform and soft, no zebra, no glare, not to hurt the eyes. |
|
* What are the advantages of SHARP COB? |
|
1) The ceramic base with feature of fast heat dissipation. 2) High color rending index:>82%。 3) High light luminous, long service life. 4) High luminous efficiency, more than 110LM/W; the decay is small, it’s less than of 2% in 10000 hours. |
-
The Anti dazzle part is using the most advanced light technology, for the production of PC engineering plastics, it improve the efficiency of light in the maximum extent. No excess reflected light almost; make the anti dazzle achieve the best. -
-
Sumbao
Professional Lighting
Lens is made of optical PC material; light transmittance radiator rate is more than 95%. A perfect parabola design, it has function of gather reflection, can effective the optical problem of yellow ring, macular, dark spots, clutter, etc. -
Sumbao
Professional Lighting
Designed of the second light distribution technology, ensure strict beam angle control, no macular, no shade, no clutter. The light is soft and uniform in a gradual way; it is giving customer a comfortable feeling. -
Sumbao
Professional Lighting

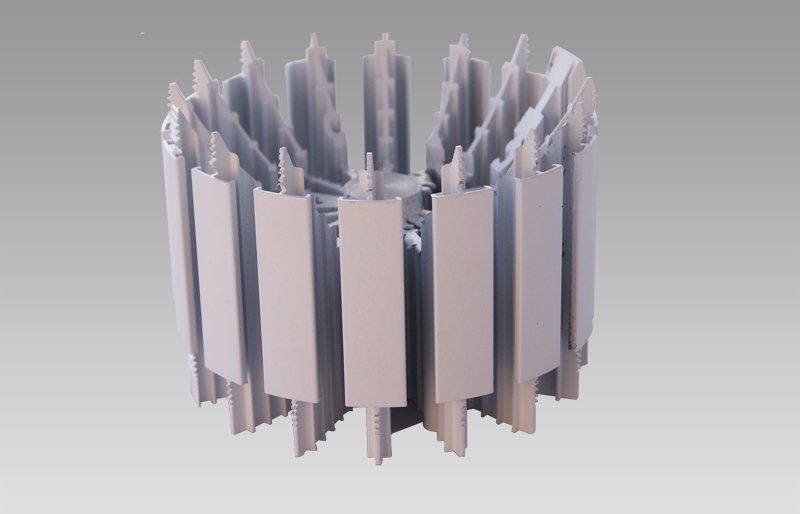

The radiator is used of ultrathin thin fin design, it is made of industrial pure Al. Fins are slim and external, but fast heat conduction speed, good heat radiating performance -
Sumbao
Professional Lighting

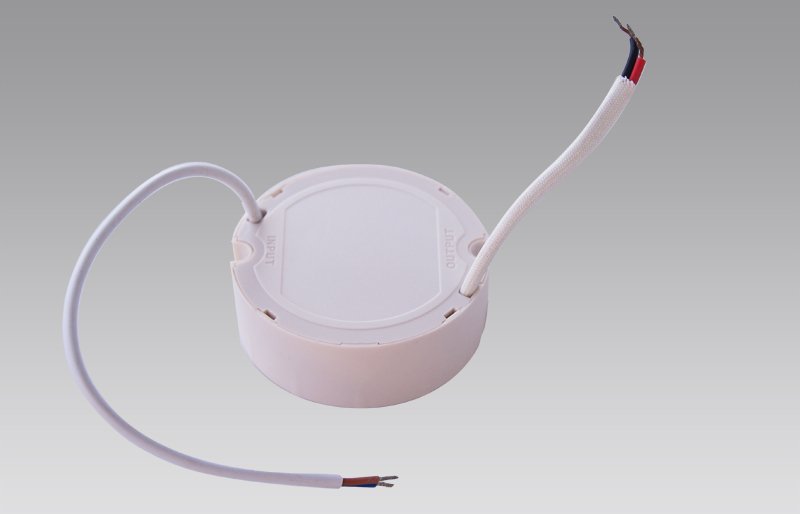

It’s made of the intelligent IC and high quality electronic components, the constant current control, with over voltage, short circuit protection. No stroboscopic, more stable performance and longer life.
Light distribution curve
-
AngleGraph
-
9°
-
10°
Lens is designed in several of angles; it’s greatly to meet the needs of different light application. Not only satisfied to the small angle light for commodities, but also can render the surrounding light environment by changing large light. It’s achieved the perfect combination of accent lighting and ambient lighting.
The average of effective luminous
Facular color temperature contrast
-
The 3000K warm white is suitable for deep color furniture exhibition.
-
The 4000K anature white is appropriate for light color fumiture,supermarket,clothing store etc.
-
The 5700K cold white is apply for modern furnature,upscale market,exclusive shop.
The installation instruction
1: The railway is fixed on the ceiling, and then makes the circuit connected.
2: The contact copper sheet shifting to the position which parallel to the track, and put into orbit, toggle dial handle 90 degrees to make the lamp copper card in orbit(Note: if the light is 3 lines, you should first make the contact copper sheet aim at tract direction. The electric box has prompted a slogan, please operating to the prompt sign)
3: Check whether the lamp is installed firmly, then you can turn on the light.
4: If you want to adjust the direction of the lamp, please hold the lamp holder, and move around.
5: Here is the installation is complete.
