Product Details
Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Halcon
- Model Number:
- HG225ALED
- Material:
- Aluminum
- Type:
- Contemporary
- Light Source:
- LED, LED
- Number of Lights:
- 2
- Lamp Luminous Flux(lm):
- 4400
- Working Lifetime(Hour):
- 50000
- Beam Angle(°):
- 115
- Input Voltage(V):
- 120-277
- CRI (Ra>):
- 85
- Support Dimmer:
- Yes
- Application:
- office, retail shop
- Warranty(Year):
- 5-Year
- Item Type:
- Pendant Lights
- Warranty(Years):
- 5
- Base Type:
- G5
- Working Temperature(℃):
- -20 - 40
- Lamp Power(W):
- 28
- Lamp Body Material:
- Aluminum
- Lamp Luminous Efficiency(lm/w):
- 90
- color:
- silver
- SIZE:
- 1200mm or 1500mm or longer
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- led pendant light
- Port
- Shenzhen, Zhongshan,Guangzhou

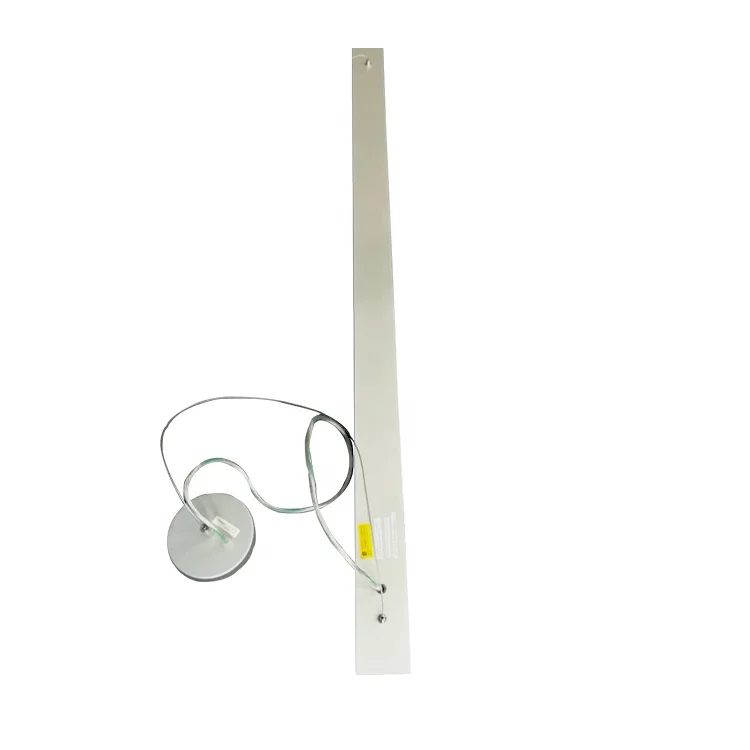

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 35 30 30 To be negotiated
Top grade antique bridgelux cob 80w high bay led fittings
Specifications of bridgelux cob 80w high bay led fittings:
- Housing: 0.6mm steel sheet with high quality powder coated
- Louver:Alanod specular 320G with 86% or metal reflector with white powder coated.
- Eletrical Components:
- LED Module: UL/CUL approved LED module.
- Wattage: 80W,120W,100W,150W,180W & 210W
- Lumen: 13827 lumen~24000 lumen
- LED Life: 50,000 hours
- Color: 4000K
- CRI: 80%
- LED Dirver: UL/CUL approved LED driver
- Output Mode:Constant Current
- Voltage: 120 to 277VAC
- Installation:surface mounted or hanging
| Model | Watts | Lumen | LED Qty | LED type | CRI | Warranty |
| HB-4-80W | 80W | 8995.39 | 208 pcs | 5630 | 80% | 50000 hrs |
| HB-4-120W | 120W | 10380 | 240 pcs | 5630 | 80% | 50000 hrs |
| HB-6-100W | 100W | 13827.4 | 312 pcs | 5630 | 80% | 50000 hrs |
| HB-6-150W | 150W | 15954.6 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-180W | 180W | 18000.1 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-210W | 210W | 24000 | 468 pcs | 5630 | 80% | 50000 hrs |
Picture of bridgelux cob 80w high bay led fittings:
Photometric curves:
Features of bridgelux cob 80w high bay led fittings:
| Applications | Warehouses/Factory/Showrooms/Display Centres |
| It marries our best LED technologies with our most popular high bay product. | |
| The result is high-performance,configurable LED luminaire. | |
| That is ideal for warehousing, manufacturing,and gymnasiums. | |
| Advanced Optics | Narrow and wide distributions available to meet both horizontal and vertical light level requirements. |
| Reflectors feature precision-formed optics utilizing premium materials. | |
| Emergency Pack | Optional factory-installed emergency battery pack in the center channel will provide 1000 lumens. |
| (nominal) for a minimum of 90 minutes. | |
| Only applies to 9000 through 24,000 lumen fixtures. | |
| Controls | Fixture can be equipped with an occupancy sensor. |
| Devices are factory-installed and require minimal labor to set up during fixture installation. | |
| Dimming | Drivers come standard with 0-10V dimming leads capable of variable dimming down to 10%. |
| Finishes | Standard fixture is two-toned with a white body. |
| Glare Control | A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed. |
| Optional Wire guard | Optional wire guard protects fixture from environmental hazards. Factory- or field-installed. |
Packing & Shipping:
Working shop picture:
Assemble line display:
Warehouse view:
Showing room:
Factory picture:
Our service:
1. Your inquiry related to our products and prices will be replied in 24 hours.
2. OEM,and your customized lightings we can help you to design and put into product.
3. Update quotation monthly
4. protect of your sales area, ideas of design and all your private information
bridgelux cob 80w high bay led fittings
