Product Details
Specifications
Twin-spot 3H LED emergency lighting fixtures
1.Non-maintained
2.Easy regular check
3.high brightness
4.Duration>3y

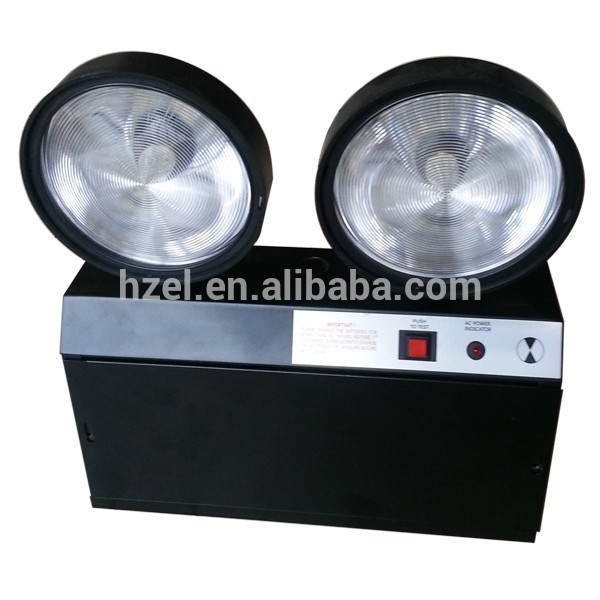

Twin-spot 3H LED emergency lighting fixtures
TL040AN
Defination
Non-maintained fluorescent emergency light after blackout
Function
Over 3hrs emergency lighting after sudden blackout
Application
For High residential buildings & Commercial buildings
- Shoping Malls/Super Markets
- Office Buildings
- Domintaries/Teaching Buildings
- Apartments/ Hotels
- Govenment Buildings
Similar Products
Same series product
LED Twin-spot Emergency Light with 2*15pcs DIP white LED: TL030AN(also same shape)
Same shape products
LED Twin-spot Emergency Light with 2*10pcs SMD white LED:TL020DN
LED Twin-spot Emergency Light with 2*20pcs SMD white LED:TL040AN
Parameters
Operation | Non-maintained |
Input Voltage | 110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current | 120mA(Nominal) |
Lamp type | 2×20 pcs smd white LED |
Battery | Nickel-Cadmium Battery 3.6V/3.0Ah |
Indicator | Red LED Indicates Power On |
Duration Time | More than 3 hours |
Construction | Electro-Galvanized Steel Casing & PS Diffuser |
IP Rate | IP20 |
Installation | Wall Surface Mounted |
Weight | 1.50 kg |
Working Temperature | -10ºC to 60ºC |
Size | 272mm*80mm*300mm Tolerance ±0.03mm |
Customization | Battery, Duration Time, Package |
Features & Advantages
Test button for easy regular check
Rotary Twin Lighting Heads
Energy Saving Design
Long Emergency Time
CE & RoHs Standards
3 years warranty
Customization available
Detailed Pictures
- Standard Export Package
- 1 set in 1 Innder Box
12 sets in Baster Carton
- Master Carton size: 57*29*33.5 CM
2. N.W.: 11.4KG
G.W.: 13KG
Customization Services
Duration time can be customized
Indication Lamp: red or green optional
Battery can be choosed
After sales services
warranty: 3 years
- Establisehd in 2008
- Located in Hangzhou, China
- Main Products
- Emergency Lights
- Exit Signs
- their accessaries
- 19th Guangzhou International Lighting Exhibition
- 115th Canton Fair 2014 Spring
- Russia Exhibition 2013 Winter
5. Cerficates
- CE & Rohs
- SGS Factory
6. Equipments
- Intergrating Spehres: for brightness measuring
- Wave Soldering Machine: for PCB soldering
- Aging Test Board:for sound products selecting
- Constant Temperature Humidity Chamber: products testing in environment condition
1. What is the main differences of Fluorescent lamp and LED?
Main differences are power consumption and life span.
For same brightness, the power consumption of fluorescent lamps 2 to 3 times that of LED lamps.The life span of LED lamps 10 times that of fluorescent lamps.
2. How about the life span of LED Lamps.
Under normal condition, it is about 50000h.
3. Is the company a trading company or a factory?
The company is a factory, and we do export by ourselves.
4. ODM or OEM is acceptable?
Yes. Both of them is acceptable.
5. How about the delivery time?
For normal products, the delivery time is 1 month for MOQ.
For customized products, the delivery time will be different accordingly.
