Share
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
- Place of Origin:
- Guangdong, China
- Light Source:
- LED
- Input Voltage(V):
- 120-277
- Lamp Luminous Flux(lm):
- 4400
- CRI (Ra>):
- 85
- Working Temperature(℃):
- 55
- Working Lifetime(Hour):
- 50000
- IP Rating:
- Ip20
- Certification:
- UL, VDE, Energy Star, EMC, ETL, LVD, Saa
- Warranty(Year):
- 5
- Brand Name:
- Halcon
- Model Number:
- HG239A
- Application:
- Sports Stadiums, Lighting Controller, Voltage Controller, Filament, HOTEL, Garden, AGV, Residential, Thermal Controller, Off-Grid Solar System, Wind Controller, Pelletizing, Energy storage, LANDSCAPE
- Power Supply:
- DC, Electric, AC
- Housing:
- 0.6mm iron sheet with high quality powder coated
- louver:
- Alanod specular mirro 4 with 96% reflector
- lamp::
- t5 or t8
- ballast:
- phlips or other brands
- installation:
- Surface mounted or hanging
- MOQ:
- 200PCS
- diffuser:
- prismatic material
- meterial:
- steel andplastic
- COLOR:
- White
- certificate:
- ul cul rohs CE
- Supply Ability:
- 100000 Piece/Pieces per Month
- Packaging Details
- led pendant light
- Port
- Shenzhen, Zhongshan,Guangzhou

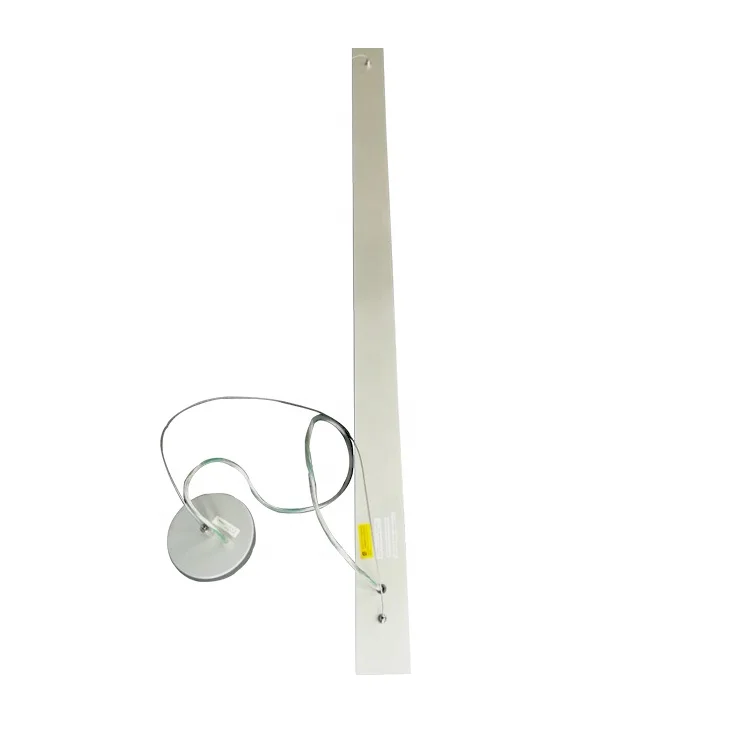

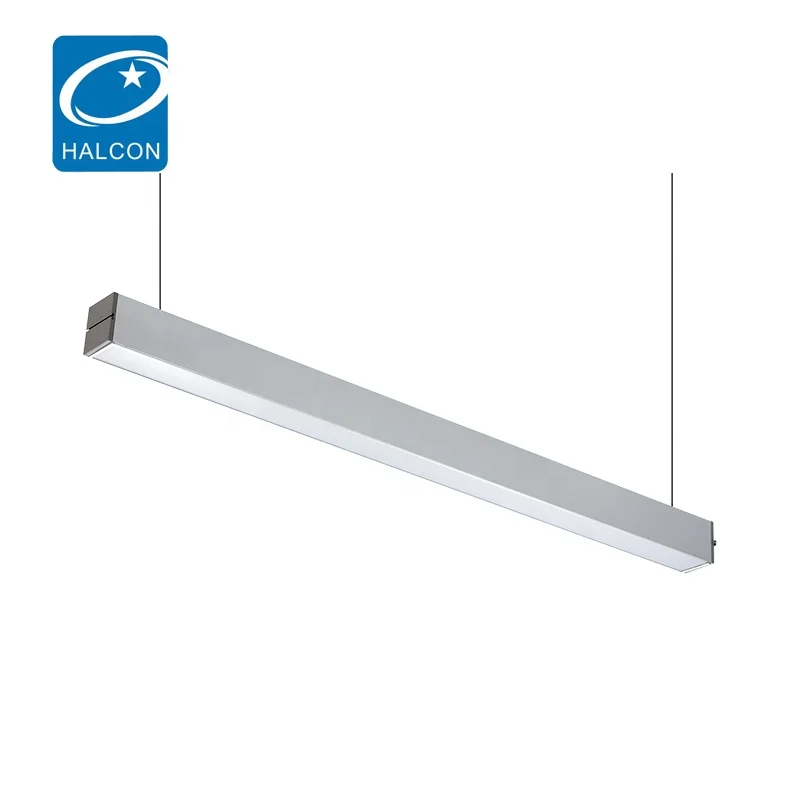

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 35 30 30 To be negotiated
Specifications
T5 T8 LED tube batten LED striplighting fixture with diffuser CE UL CUL.
2ft, 4ft
it can be assembled with LED module
T5 T8 LED tube batten LED striplighting fixture with diffuser CE UL CUL
2ft, 4ft
CE, UL CUL
UL File Numer: E350677, E359656
PRODUCT SPECIFICATION:
Housing: 0.5mm steel sheet with white powder coated.
Diffuser: 2.6mm thickness prismatic Acrylic material.
End Caps: White ABS material
Electrical Parts: Without ballast; With T5/T8 VDE lampholders or prewired;
Installation: Ceiling or wall mounted.
PRODUCT DIMENSION:
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG239-Y18x1 | T8,1x18W | 642x66x98mm | 680x306x320mm | 15 |
| HG239-Y36x1 | T8,1x36W | 1250x66x98mm | 1290x306x320mm | 15 |
| HG239-Y58x1 | T8,1x58W | 1550x66x98mm | 1590x306x320mm | 15 |
| HG239-Y70x1 | T8,1x70W | 1850x66x98mm | 1890x306x320mm | 15 |
| HG239A-Y18x2 | T8,2x18W | 642x105x58mm | 680x365x297mm | 12 |
| HG239A-Y36x2 | T8,2x36W | 1250x105x58mm | 1290x365x297mm | 12 |
| HG239A-Y58x2 | T8,2x58W | 1550x105x58mm | 1590x365x297mm | 12 |
ELECTRICAL:
Standard T5 and T5HO: Program start 120/277 volt integral electronic ballast or 247V VDE electronic ballast with less than 10% THD.
Each ballast provided with disconnects to meet luminaire disconnect code requirement.
MOUNTING:
The product is designed to install into acoustical grid and inaccessible ceilings.
FINISH:
Prepainted white polyester polymer finish on expose trim;
Optional paint after fabrication available if specified.
LABELS:
UL and cUL Listed, approved for dry/damp location unless otherwise noted.
OPTIONS:
-Available for installing with the Frosted Lens
-Available for installing with LED module.
-Available for installing with sensor
PRODUCT PHOTOS:
packing:
Application:
SHIPPING:
factory photos:
WORKSHOP:
warehouse:
showing room:
