Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
： |
Array |
Type： |
Array |
Size： |
65X36X13 cm |
Product Details
- Type:
- LED linear high bay
- Certification:
- ETL DLC
- Model Number:
- HG-L225
- Working Temperature(℃):
- -25-55
- Working Lifetime(Hour):
- 50000
- Beam Angle(°):
- 106
- Input Voltage(V):
- 120-277
- Light Source:
- SMD2835
- CRI (Ra>):
- 80
- Lamp Body Material:
- Iron+PC
- IP Rating:
- IP20
- Application:
- WAREHOUSE
- Support Dimmer:
- 0-10V
- Dimension:
- 2FT 4FT
- Color Temperature(CCT):
- Cool White
- Lamp Luminous Efficiency(lm/w):
- 130
- Sensor and emergency kits:
- available
- lamp boday meterial:
- Iron sheet
- Light source:
- SMD2835
- usage:
- house, factory, store,industrial use
- Output lumen:
- 21450lm
- certificate:
- ETL DLC
- Size:
- 2ft
- Power:
- 165W
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 65X36X13 cm
- Single gross weight:
- 3.5 kg
- Package Type:
- led linear high bay

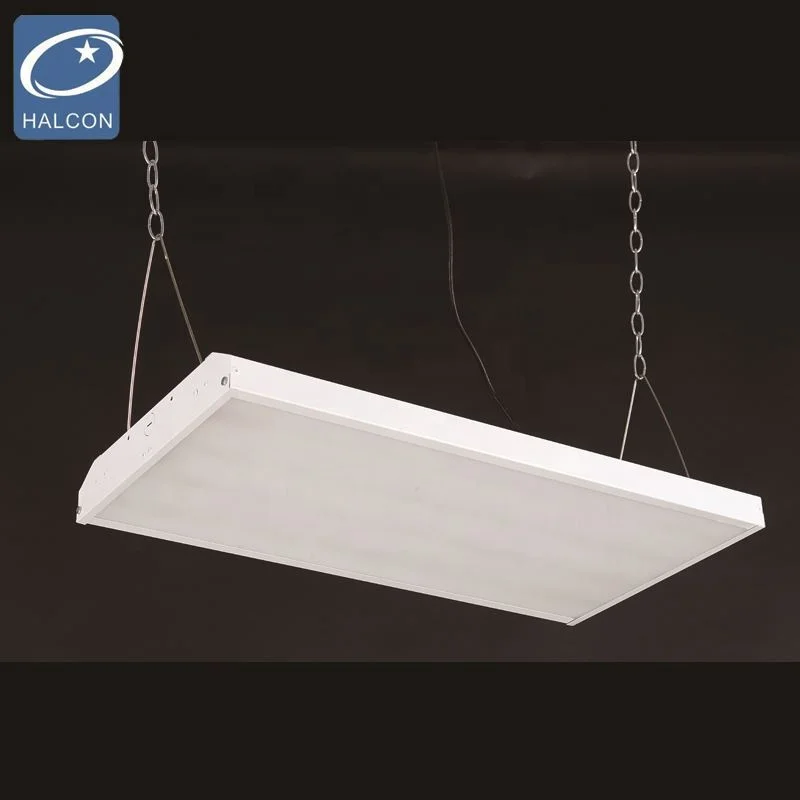

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 100 101 - 500 >500 Est. Time(days) 15 14 13 To be negotiated
LED LINEAR HIGH BAY FOR WAREHOUSE
WAREHOUSES/ FACTORY/ GYMNASIUMS/DISPLAY CENTRES
- It marries our best LED technologies with our most popular high bay product.
-The result is high-performance,configurable LED luminaire.
-That is ideal for warehousing, manufacturing,and gymnasiums.
ADVANCED OPTICS
-Narrow and wide distributions available to meet both horizontal and vertical light level requirements.
-Reflectors feature precision-formed optics utilizing premium materials.
EMERGENCY BATTERY PACK
-Optional factory-installed emergency battery pack in the back plate.
-(nominal) for a minimum of 90 minutes.
CONTROLS
-Fixture can be equipped with an occupancy sensor.
-Devices are factory-installed and require minimal labor to set up during fixture installation.
DIMMING
-Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.
FINISHES
-Standard fixture is powder-coated with white color.
GLARE CONTROL
-A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.
2
014 hot sell 150w led branded high bay lighting office lighting fixture with UL CE Roh
The high bay lighting is widely used in the exhibition hall, shopping mall, warehouse, workshop, stadium, etc.
1. Packaging: Export carton with foam, inner box is ok with customer"s requirements.
2. Shipping: By sea, by express or you can let your forwarder to collect goods from our company.
0
Email: sales02@halconlighting.com
Q1. Can I have a sample order ?
A: Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for led batten ?
A:The lead time of sample is 05 days,
Q3. Do you have any MOQ limit for led high bay light order?
A: Low MOQ, 1 pc sample checking is welcome.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping
Q5. How to proceed an order for light?
A: Firstly let us know your requirements or application for light.
Secondly We quote according to your requirements or our suggestions for light.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production for led light.
2014 hot sell 150w led branded high bay lighting office lighting fixture with UL CE Rohs
