Product Details
Product Video
Product Overviews

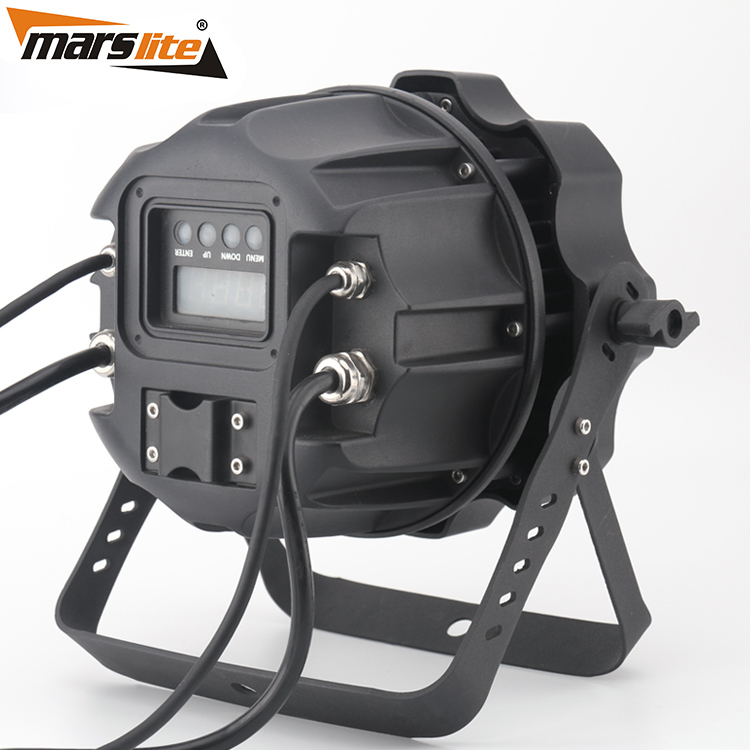

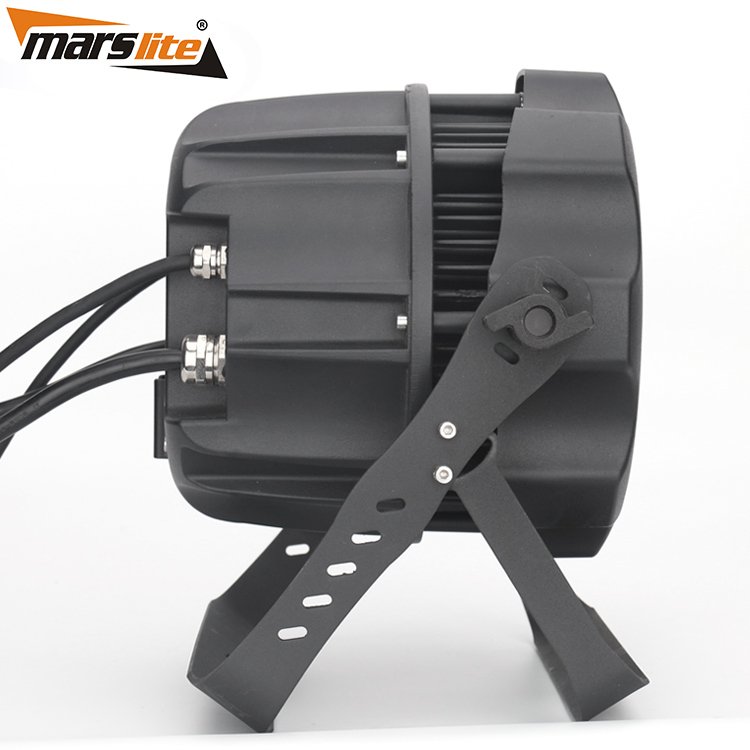

MS-BW169 9 pcs RGBWA+UV 6IN1 18W LEDs
◪The 9pcs 18W RGBWA+Purple 6in1 led par light is an IP65 outdoor rated compact Wash Fixture, create rich hues and smooth color mixing for stage or wall washing.
◪This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 169W.
◪If you have ever needed an all-in-one solution to your lighting needs, the MS-BW169 from Marslite is just for you
◪Perfect for up-lighting, stage washing, and wall washing.
Technical Data
Name: | High Quality 9*18W RGBWA+UV 6IN1 Waterproof led par can light |
Type: | MS-BW169 |
LIGHT SOURCE: | LEDs: 9pcs multichips, 18W RGBWA+UV 6-IN-1 |
LEDs: 9pcs multichips, 18W RGBWA+UV 6-IN-1 | |
Drive mode: constant current | |
Drive current(mA): 480 | |
POWER SUPPLY: | Power consumption: Max. 169W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>4K Hz) |
Light output(full bright): 11280LUX@1m, 2760LUX@2m, 485LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 2/3/3-1/4/5/6/9CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin (Waterproof) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changeing macro, fade in & out macro | |
BODY: | Housing: Aluminium, black and white optional, baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP65 |
Environment temp: -20℃-40℃ | |
Certificate: CE and RoHs | |
Light size:27*23.5*22cm | |
N.W.: 4.3kg | |
G.W.:6kg | |
Package Size:29*29*29cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
