Name: Waterproof IP65, Exterior 2D LED Bulkhead 20w led emergency microwave sensor fixtures
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Gooday/OEM/ODM

Bulb Type:: LED

Battery Type:: 3 hour maintained in emergency with Ni-MH battery

Material:: Flame retardant PC base & Opal PC diffuser

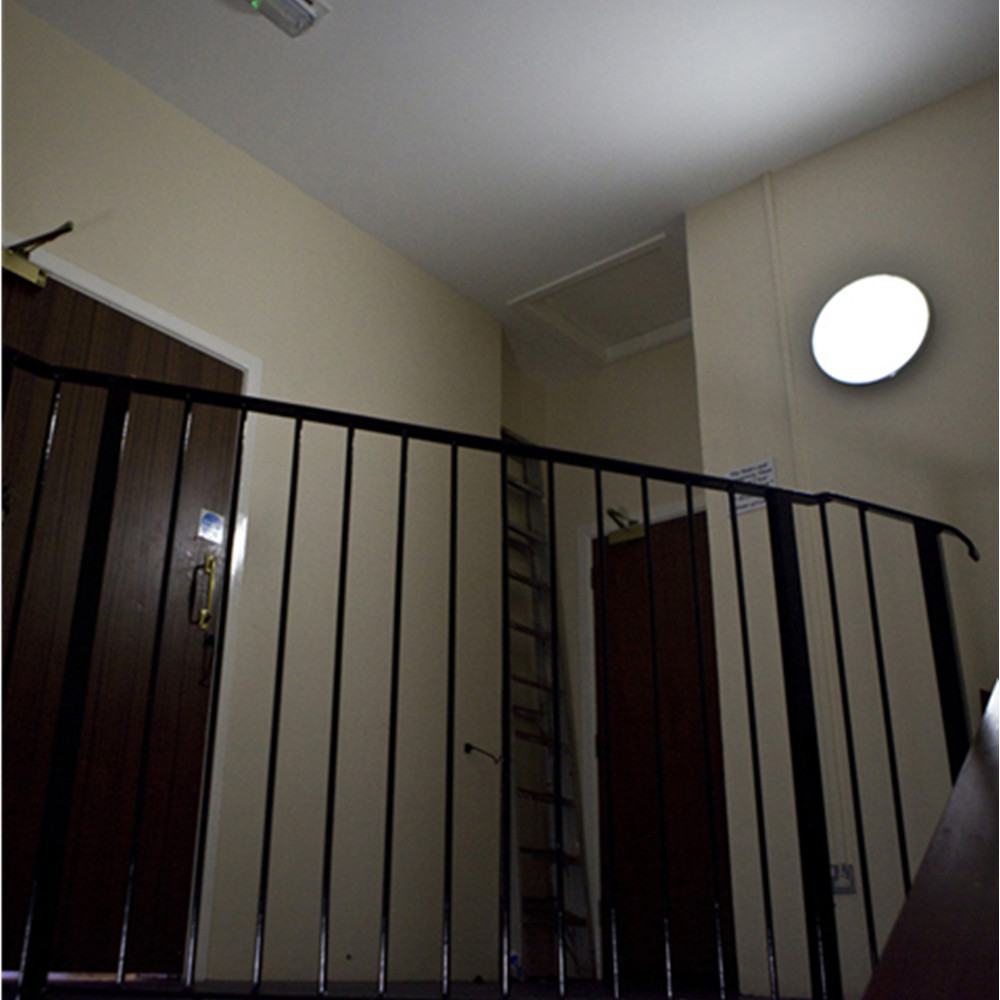

Usage:: stairwell, corridor, lobby, balcony,car park, museum, stadium, etc.

Certification:: CE /SAA/C-TICK

Specifications:: 25W/20W

LED Light Source::: 2835 SMD LED

Input Voltage(V)::: AC 100~240V (50/60Hz)

Color Temperature(CCT):: 3000k ~ 7000k (optional)

Working Lifetime::: 50000hr

Operation Temperature(℃)::: -10~40 degC

Lamp Luminous Flux(lm)::: 1200Lm

Luminous efficacy::: 85Lm/W

IP Rating::: IP65

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Dimension:325*100mm
Box package:330x330x110mm (1pcs/box)
Carton package:550x340x350mm (5pcs/carton)
Net Weight:1.2kg/pcs

Port: Shenzhen/Hong Kong ports

Waterproof IP65, Exterior 2D LED Bulkhead 20w led emergency microwave sensor fixtures

Product Parameter

CRI	Ra> 80	Luminous Flux	1000-1200Lm
PF	>0.9	View angle	110°
LED Driver output voltage	DC 36V	Housing material	PC housing , PC diffuser
LED Driver output current	310mA ±10mA	IP Rating	IP 65
Microwave Sensor:
Sensor range	180 degree; 0.5 - 8M(adjustable)	Sensing interval output	0% or 25% of nominal power
Sensing interval	10s to 5min max (adjustable)	Test button	AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode
