Product Details

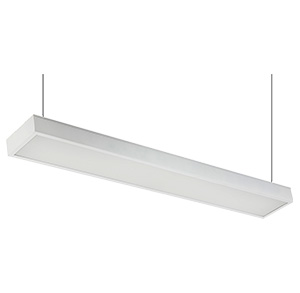

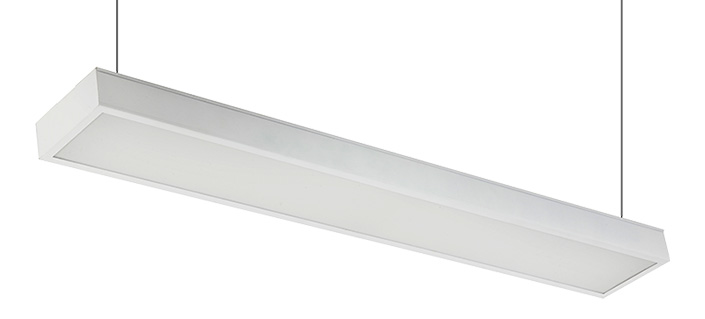

■ CONSTRUCTION
Die formed of 0.6mm cold-rolled steel body; Aluminum frame with anodized on surface.
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.
High reflectance backed white acrylic paint finished.
High-diffusion light-milky PC diffuser
Fully pendant luminaire fits ceilings.
including presence/absence detection and daylight dimming
■ SENSOR
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.■ DIMMER
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.■ LOOKING
Standard fixture is white finishing. available for black color.
Information
◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:18W,25W; 4ft: 24W,36W
◪ High luminous efficacy 120 LM/W;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: Suspended,Flush mount.
◪ Suitablefor dry/damp location;
◪ Designed for office/ architectrual/ school/ display centres
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years
Model dimension
| Model No | A | B | C |
| P1832-18W/2ft | 23.85" | 6.69" | 1.96" |
| P1832-25W/2ft | 23.85" | 6.69" | 1.96" |
| P1832-30W/4ft | 47.48" | 6.69" | 1.96" |
| P1832-36W/4ft | 47.48" | 6.69" | 1.96" |
Spec Sheet
| Total Input Watt | 18W | 25W | 30W | 36W |
| SMD LED Chips Brand | 2ft | 2ft | 4ft | 4ft |
| Calculated L70 | 50,000hrs | |||
| Delivered Lumens | 1980 lm | 2750 lm | 3300 lm | 3960 lm |
| Luminaire Efficacy Rating | 110 LM/W | |||
| Correlated Color Temperature | 3000K,4000K,5000K | |||
| Color Rendering Index | >80 | |||

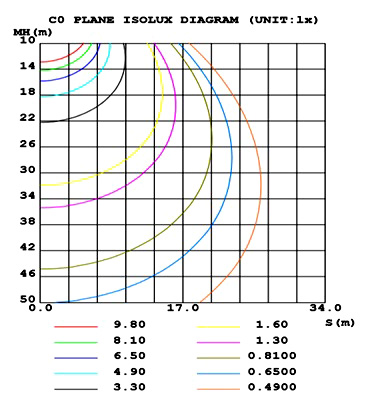

Light distributing
Installation
INSTALLATION FOR HANGING

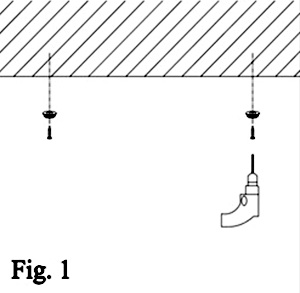

1-Fix the cooper nut into the ceiling by screw

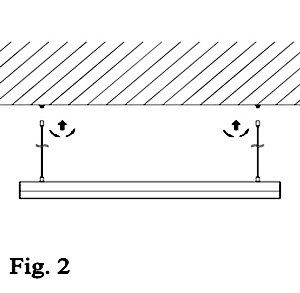

2-lock the stainess wire into the cooper nut.

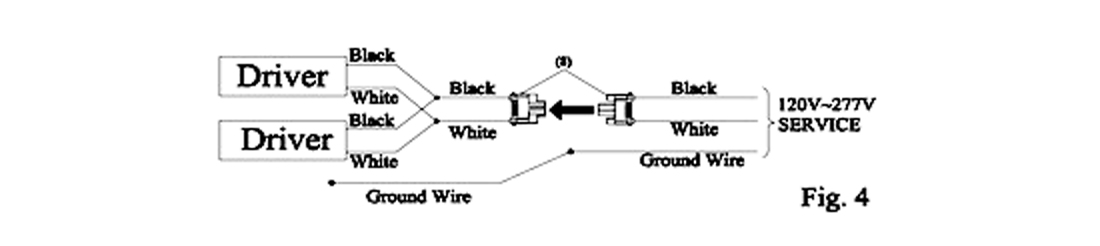

3-Turn off the power,make the wire connection to the quick connector

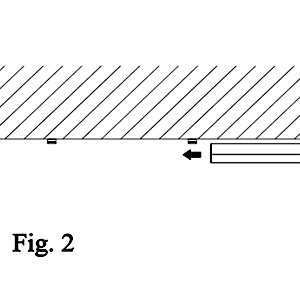

INSTALLATION FOR CEILING-MOUNTED

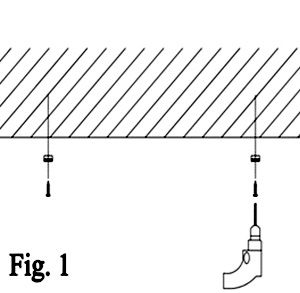

1-Fix the mounting holes into the ceiling by screw
2-lock the stainess bracket into the holes.
3-Snap in the lights into the mounting bracket
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1

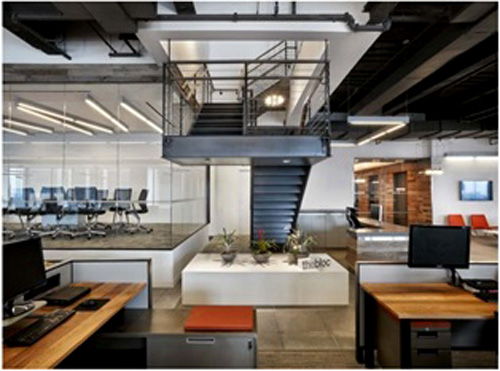

Applications

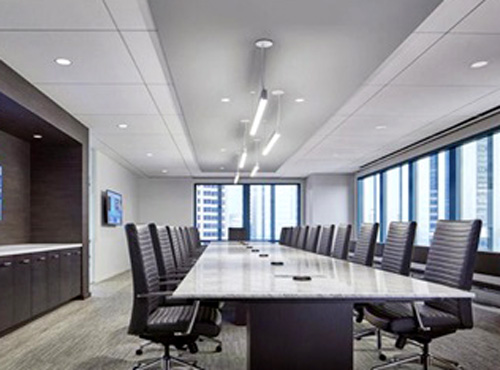

Conference Room
