Application-1
It can be installed on the lower edge of the stairs, with good light uniformity, high brightness and beautiful appearance.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |

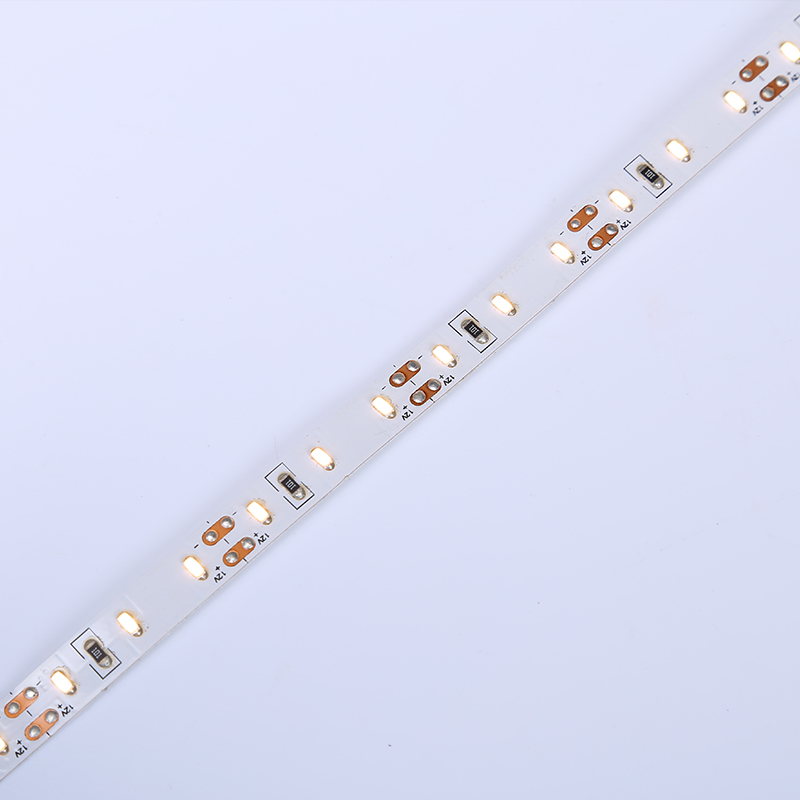

Product Details
❈ Product description
Product Features
◪The brightness is high, the light is soft and uniform, the installation is convenient, and the shape can be DIY freely.
◪Can be customized to the number of beads per meter, voltage, power you want. It can be installed in a variety of lamps and decorative boxes.
❈ Product parameters
| Part Number | UN-FPC-E3014x-xxD-12/24V |
| IP Rating | IP20 |
| Colour | Warm White, Nautral White, Cool White |
| Voltage | DC12V or DC 24V |
| Light beads | Edison 3014 |
| Power rating | 8W(90leds), 12W(120led), 14W(180led)or difference power for choice |
| CRI (Ra>) | 80, 90 |
| LED Light Source | Edison SMD 3014 |
| LED Qty(LEDs/m) | 90, 120, 180leds or customized |
| Beam Angle(degree) | 120 |
| CCT/nm | 2700-3000k, 4000k, 5700k, 6000-6500k |
| Min. Cutting | 27.5cm/3LEDs |
| Max. Length | 5, 10M |
| Operating Temperature | -20-50℃ |
| Storage temperature | 0-60℃ |
| Environment humidity | 40%-70%RH |
| PCB Width | 8mm |
| Certification: | CE, FCC, RoHS |
| PCB Color: | White PCB |
| Working Lifetime(Hour): | 50000 |
| Packeting: | 5 Meters/Roll, 10 Metres/Roll |
| Warranty: | 2 Years |
| Service | OEM, ODM , Customization |
Our LED strips can be customized according to customer requirements, size, color temperature, voltage, power, brightness and so on. Easy to install and high light efficiency.
❈ product details
01

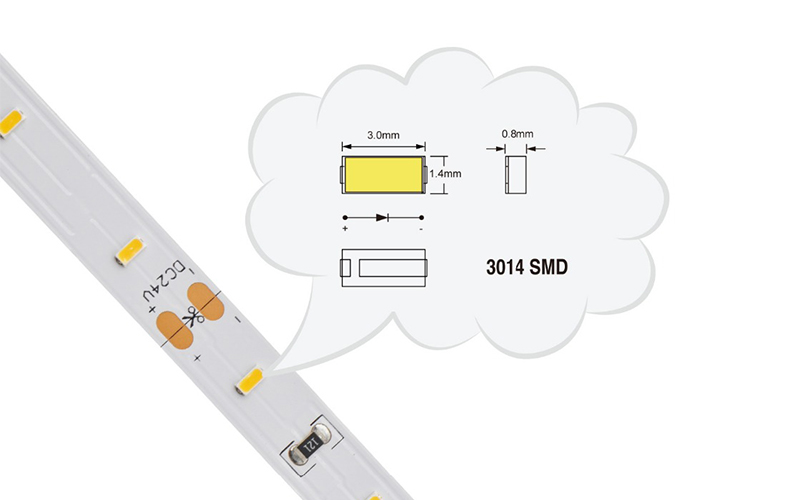

24V LED strip

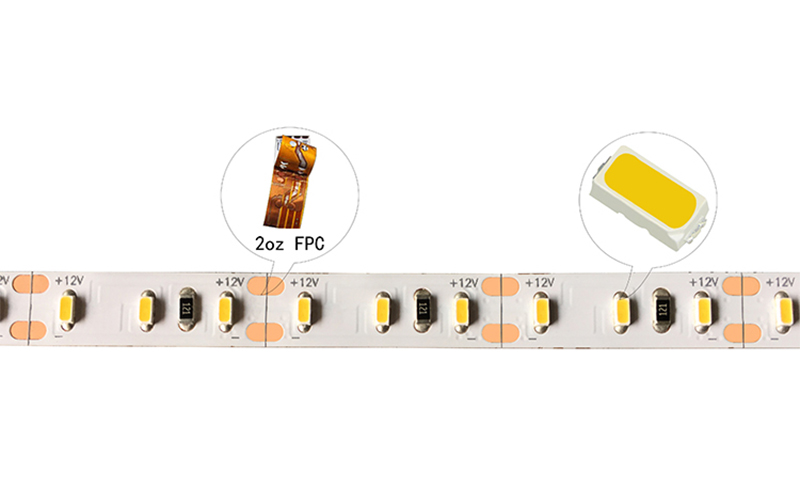

Our PCB boards are double-sided copper, at least 2 ounces thick.
02

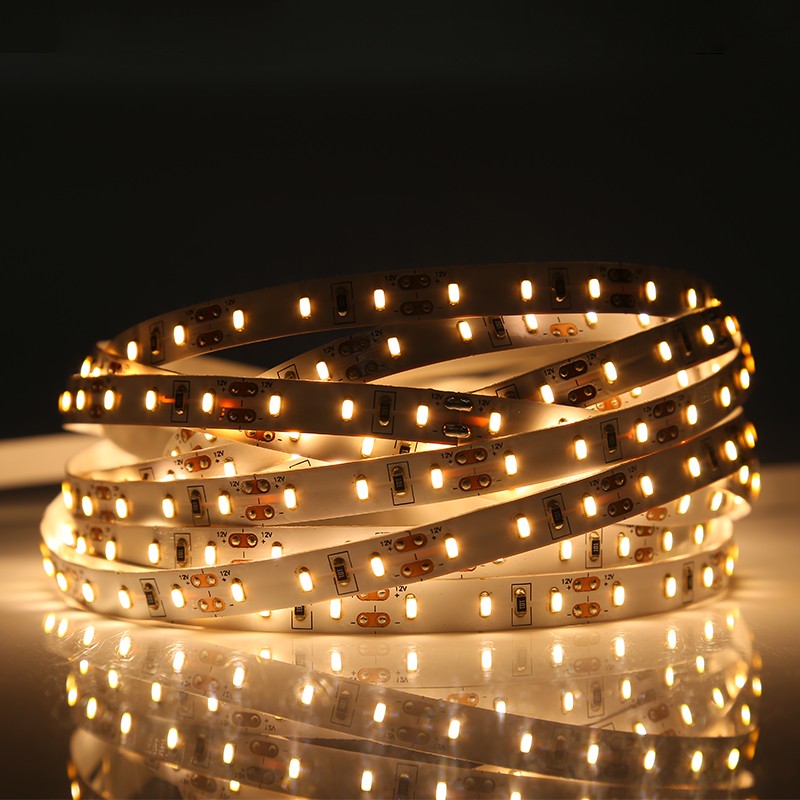

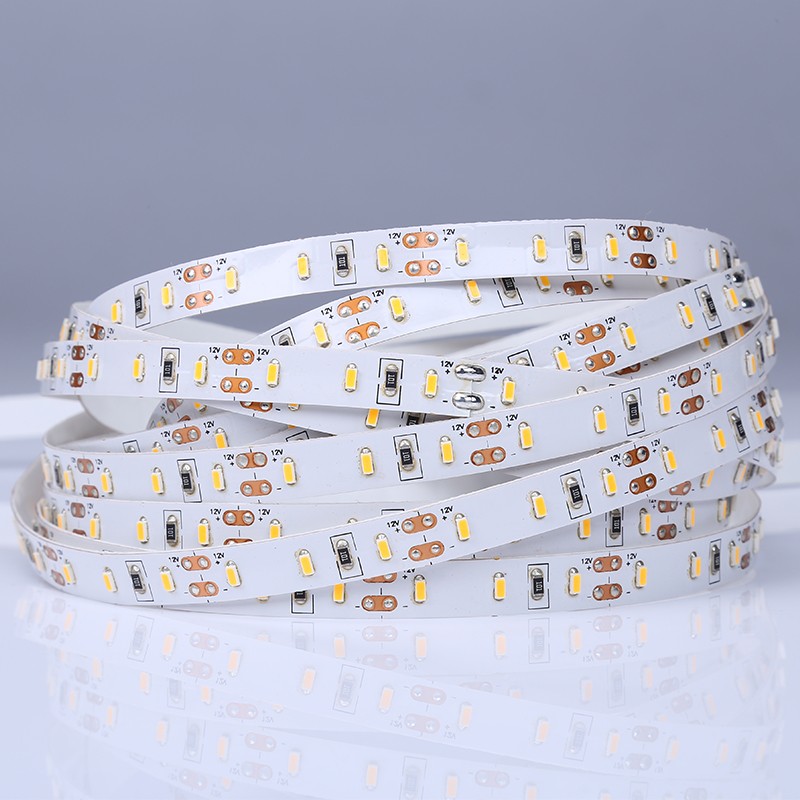

LED strip
Our SMD LED is used by the Taiwanese brand EDISON. High light efficiency, good light uniformity, high life and low light decay.
❈ product Applications

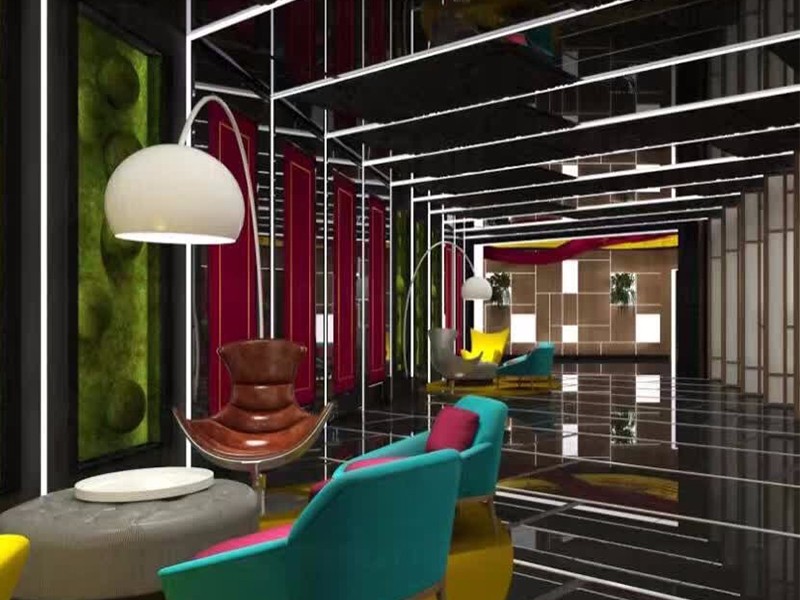

Application-2
Can be installed with aluminum profiles in the wall seams and seams. Play a decorative, lighting role. Stylish and beautiful.
