Product Details

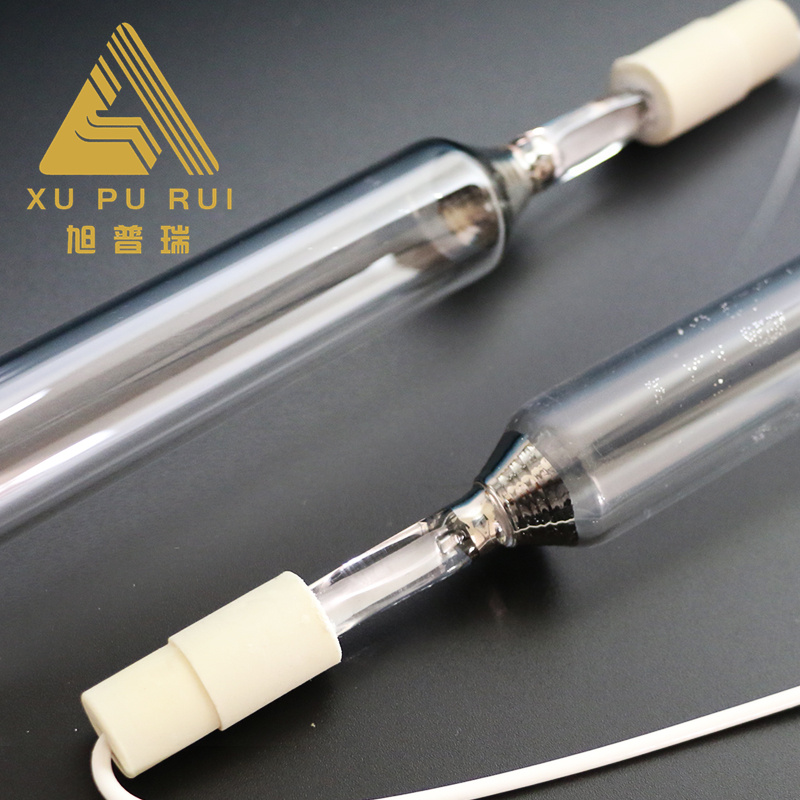

Wholesale quartz glass tube high pressure low price 365nm 1000w UV curing light bulbs
| Spectrum | 365 nm |
| Rated Power | 120 W ~ 36 KW |
| Overall Length | 110-1800mm |
| Arc Length | 70-1700mm |
| Tube Diameter | 18/20/22.5/25/26/28 mm |
| Metal Base | Ceramic or Metal |
| Power Density | 30/80/120/160/200/240/300 w/cm |
| Tube Material | American GE pure quartz tube |
| Filler | Mercury |
| Certification | CE and IEC |
| warranty | 800 hours |
2.Detail Sketch
3.Features
1. Wide Use
UV lamp is adapted to the surface curing process of metal,wood,ceramic,glass,paper,plastic,etc.
2. Good Stablity
The spectral distribution has no obvious change after long-time use.
3. High Curing Efficiency
UV energy output is high and uniform.So the curing speed is fast.
4. Good Curing Effect
Along with strong adhesion, high surface gloss and good visual effect.
4.Applications
5.Product Advantages
1.High Purity Quartz Tube
We use the quartz tubes provided by the American GE company,which have a high UV transmittance and
low hydroxyl content .
2.CE and IEC Certification
Each lamp has a high data accuracy,stable and reliable performance.
3.800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we
get from our customers.
4.Can be customized
More than 1000 kinds of uv lamp models are provided.Rated Power range from 250W to 36KW.Power
Density range from 30w/cm to 300w/cm.Ozone and ozone free are both available.
6.Production Flow
When you inquiry,please inform us the following details:
1.Operating voltage and operating current you need.
2.Power and outside dimension you need.
3.Special requirements if you have.
The following are some of our company"s other products, if you are interested can click to view.
20 years work experience,Customer-centered,Service-oriented,Credit & Quality
Main Products:
Lamps: UV tubes, metal halide (ME lamps), iron lamps, plate exposure lamps, iodine gallium lamps (M lamps), infrared lamps (IR lamps). UV light sources: UV transformers, ballasts, triggers, capacitors, UV lampshades. Consumables: Transparent quartz insulation films, coated quartz reflective films, quartz sleeves, UV energy meters, UV radiation meters, UV glasses. UV machines: Portable UV light curing machines, desktop curing machines, UV ovens.
