Our integrated solar street light which integrates the green-energy parts solar panel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it’s convenient in the shipment and installation.

Purpose:

To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it’s necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.

Product parts:

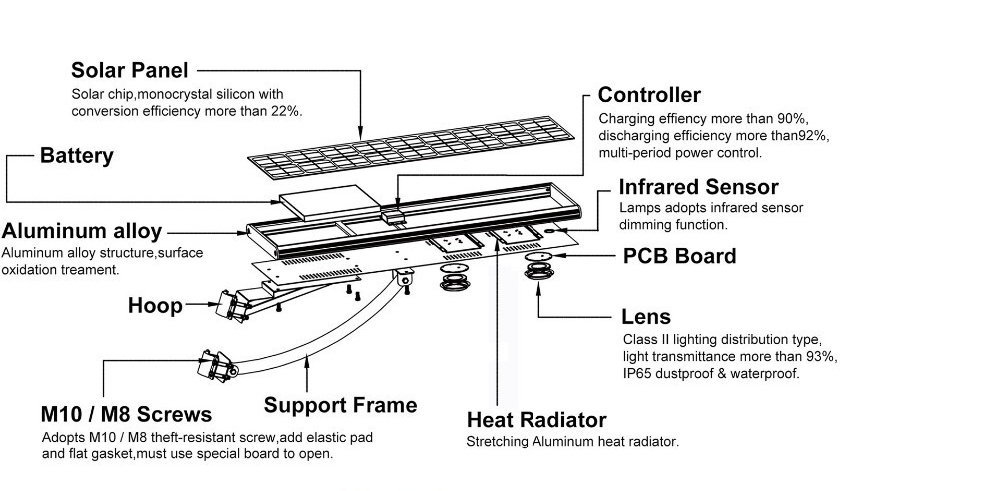

The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:

The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

Product Features

1) All in one intelligent design

2) Long lighting time up to 36-48 hours

3) Energy Saving LED garden/street lights

4) Different Motion sensor with timer

5) Pole optional, easy to install

6) Have photo sensor turn on at nite, turn off daytime, also can according customer design the working time

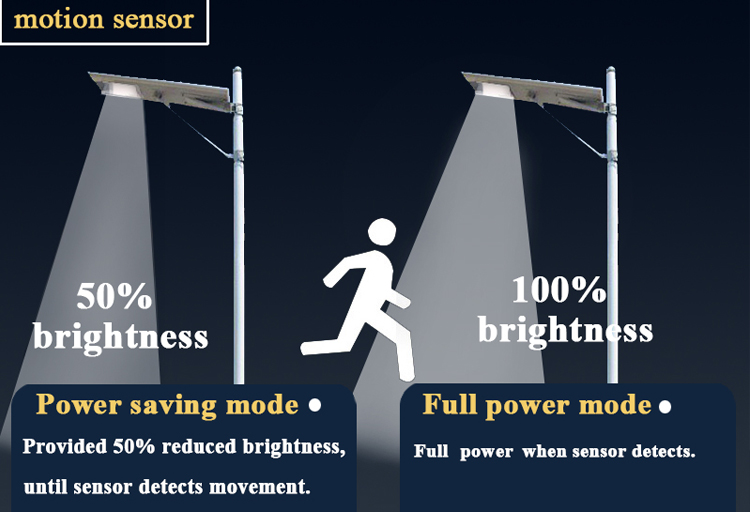

Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .

Installation Instructions

Wiring-free, easy installation and light; Two workers can do installation within 5 minutes; High-capacity, long service time li-battery is used to make sure that the using time of the light can be 8 years; Green illumination source without hazardous substance like mercury, less radiation.

Application

• solar led Street Light           Pathway Lighting                              Ramp Lighting

• Private Road Lighting         Sidewalk Lighting                             Remote Area Lighting

• Square Lighting                  Jogging and Bike Path Lighting        Perimeter Security Lighting

• Farm & Ranch Lighting       Wildlife Area Lighting                        Park Lighting

•  Gate Lighting                      Yard Lighting                                    Parking Lot Lighting

• Campus Lighting                Boat Dock Lighting

•

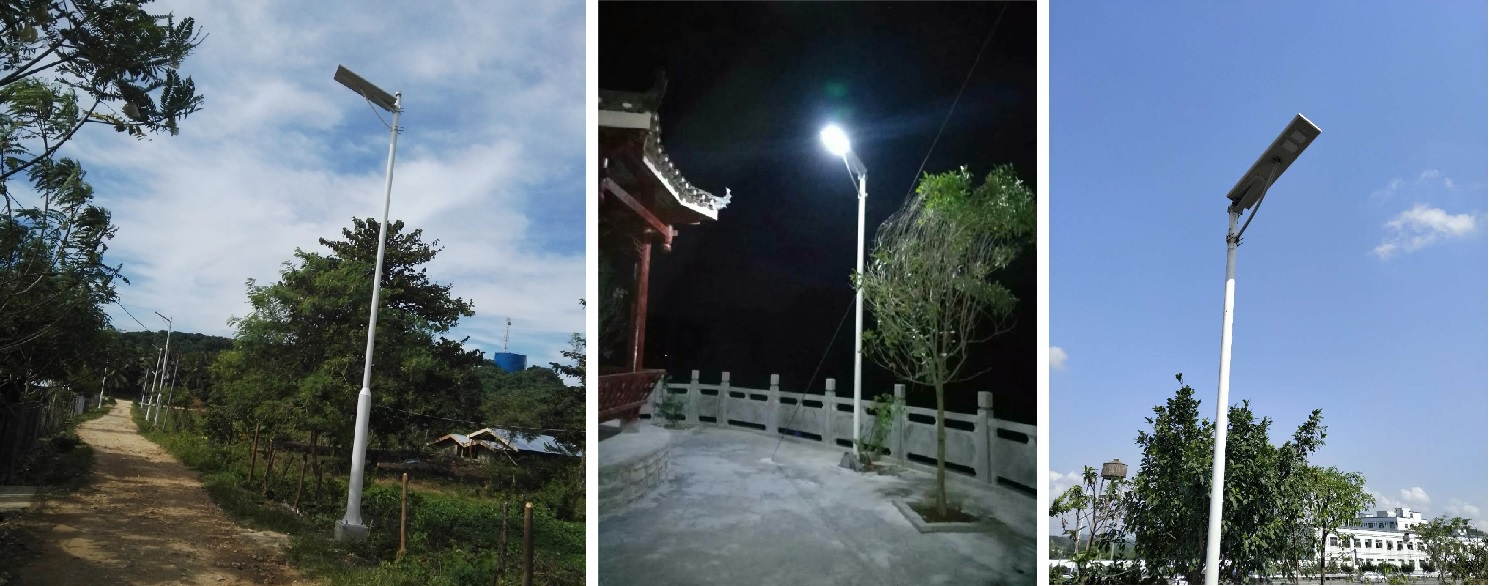

The All-in-one integrated solar street light can be installed in all streets, auxiliary roads, paths in residential subdistricts, mine areas, non-electricity zones, parks, parking lots and villages to provide light, and the solar panel can charge the battery to satisfy the need of lighting.

1. “All in One solar steer light ” could not work without sunshine, please select the suitable model according to the

local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.

2. “All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day

time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.

3. Battery of the “All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.

4. When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.

5. Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.

6. All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.

7. The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)
