Product Details
1.Product attributes
| NAME | Xm-18s Incubator Controller |
Features:

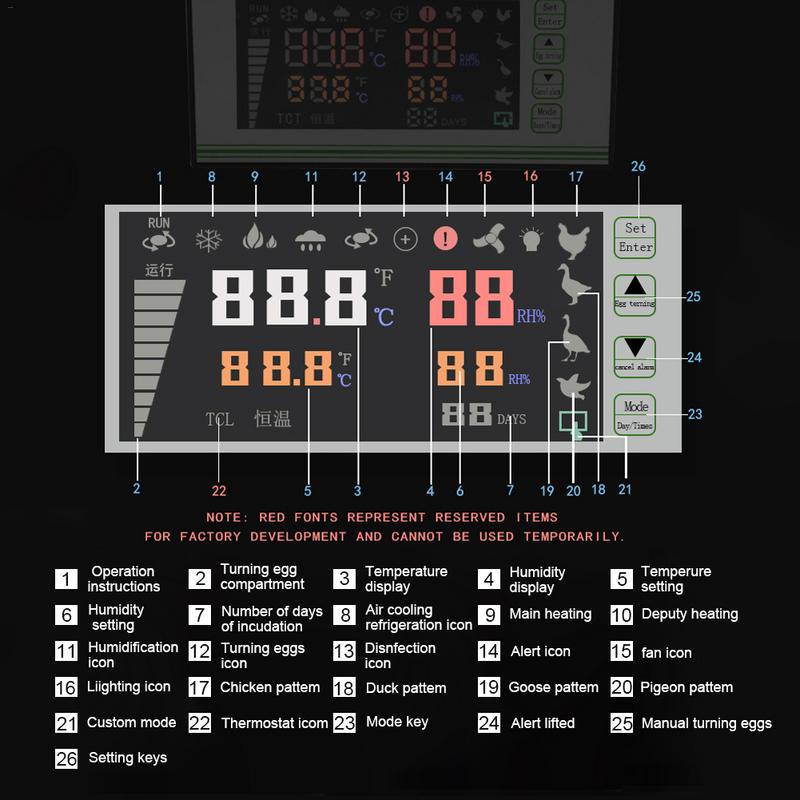

Digital displaying of temperature, humidity and turning frequency
It applies the microcomputer chips to have strong anti-interference and high stable performance; the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range; it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability. It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys. And six kinds of incubation modes for user-definition, chicken, duck, goose, pigeon and blackcock are available for selection.
Parameters:
Model:XM-18S
Size: about 18.5*8.5*8cm/7.28*3.35*3.15in
Applicable models: 24-5,280 incubators
Temperature Measuring Range: 0-99.9℃
Temperature Measurement Accuracy: ± 0.1℃
Humidity Measurement Range: 0-45℃ RH
Humidity Accuracy: ± 3% RH
Number of egg-turning: the maximum record is 999 times.
Cycle of egg-turning: adjustment of 0 - 999 minutes(the factory default is 90 minutes)
Egg turning period: 0~999 seconds (default 180 seconds)
Air exchange cycle: 0~999 minutes (default 120 minutes)
Air exchange period: 0~999 seconds (default 15 seconds)
Temperature measurement line length: about 1.5 meters
Number of signal-output: 7(over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)
Working conditions:
1. Working voltage: AC 180V~240V,50HZ
2. Relative humidity: less than 85%
3. Ambient temperature: 0℃~60℃
Packing list:
1 x Incubator controller
1 x Temperature sensor
1 x Humidity sensor
Notice:
1.Due to the different monitor and light effect,the actual color maybe a slight different from the picture color.
Digital displaying of temperature, humidity and turning frequency
It applies the microcomputer chips to have strong anti-interference and high stable performance; the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range; it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability. It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys. And six kinds of incubation modes for user-definition, chicken, duck, goose, pigeon and blackcock are available for selection.
Parameters:
Model:XM-18S
Size: about 18.5*8.5*8cm/7.28*3.35*3.15in
Applicable models: 24-5,280 incubators
Temperature Measuring Range: 0-99.9℃
Temperature Measurement Accuracy: ± 0.1℃
Humidity Measurement Range: 0-45℃ RH
Humidity Accuracy: ± 3% RH
Number of egg-turning: the maximum record is 999 times.
Cycle of egg-turning: adjustment of 0 - 999 minutes(the factory default is 90 minutes)
Egg turning period: 0~999 seconds (default 180 seconds)
Air exchange cycle: 0~999 minutes (default 120 minutes)
Air exchange period: 0~999 seconds (default 15 seconds)
Temperature measurement line length: about 1.5 meters
Number of signal-output: 7(over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)
Working conditions:
1. Working voltage: AC 180V~240V,50HZ
2. Relative humidity: less than 85%
3. Ambient temperature: 0℃~60℃
Packing list:
1 x Incubator controller
1 x Temperature sensor
1 x Humidity sensor
Notice:
1.Due to the different monitor and light effect,the actual color maybe a slight different from the picture color.
2.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2.Product display
