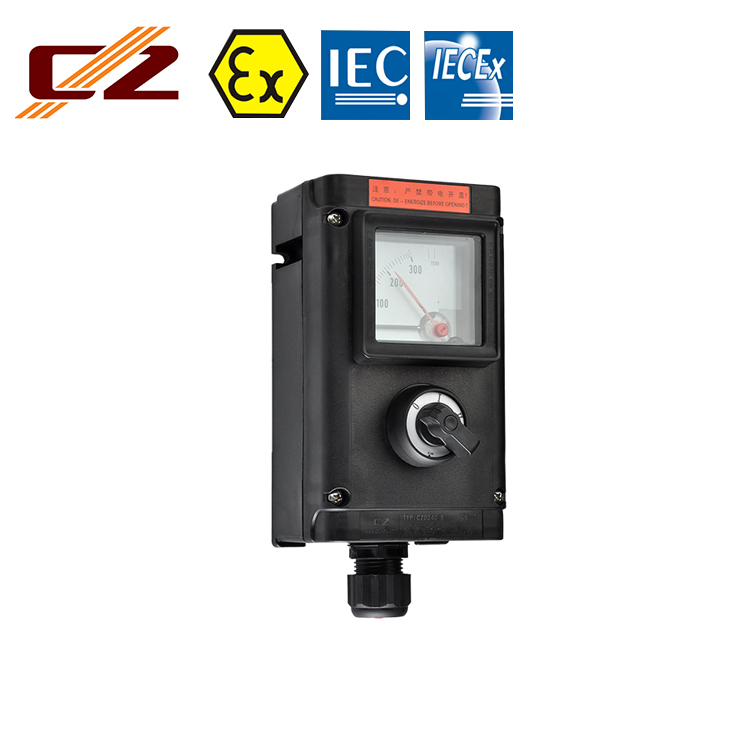

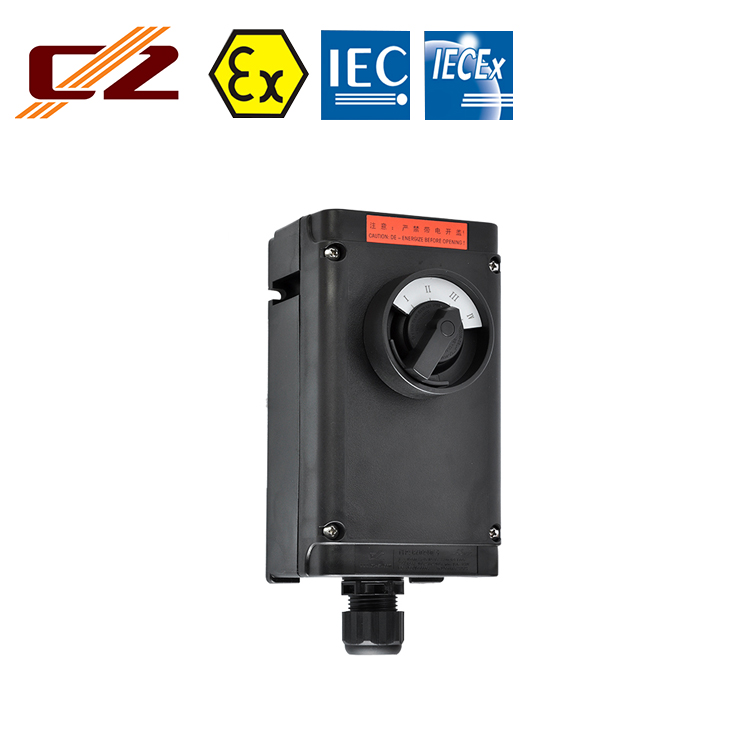

IECEX And ATEX Certified IP66 Explosion-proof Electrical Main Switch Box

Click on the image to view the original image

Product：	views：2IECEX And ATEX Certified IP66 Explosion-proof Electrical Main Switch Box
Branch：	CZ
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:16

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Model Number:: CZ0240/3

Name:: Explosion-proof Electrical Control Box

Intended use:: zone 1 and zone 2, zone 21 and zone 22

Certificate:: IECEx, ATEX

Material of enclosure:: Alloy plastic of static resistance

Cable entry:: Molded plastic 1 x M20, cable outer diameter 5.5-13mm

Ambient temperature use:: -40°C ~ +40°C

Rated voltage:: Max 400V

Rated current:: Max 16A

Component terminal:: 2.5 mm2

PE terminals:: 4 mm2

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pc/inner box

Port: Shanghai or Ningbo

Lead Time:

Quantity(Pieces)	1 - 200	>200
Est. Time(days)	15	To be negotiated

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification	Ex mark
IECEx	Ex de IIC T6 Ex tD A21 T80°C, Ex e II T6 Ex tD A21 T80°C
ATEX	Ex II 2GD Ex de IIC T6 Ex tD A21 T80°C; Ex II 2GD Ex e IIC T6 Ex tD A21 T80°C

Intended use	zone1 and zone2 zone21 and zone22
Ambient temperature	-40°C≤Ta≤+40°C
Degree of protection	IP66
Material of enclosure	Alloy plastic of static resistance
Rated voltage/current	Max 400V, Max 16A
Component terminal	2.5 mm²
PE terminals	4 mm²

Descriptions:
There are six standard enclosure sizes for options. Each CZ0240/1, CZ0240/2 and CZ0240/3 can be combined together and each CZ0240/4, CZ0240/5 and CZ0240/6 can be combined together, but max. three pieces are together. The enclosure made of static -resistant plastic alloy and the concave-convex joint is designed between cover and body which the slicon rubber bar is sealed between them and it can be mounted even if the cover is closed and sealed.
Built-in explosion-proof components modules are mounted on rails in the enclosure and one cable entry of CZ0240/1, CZ0240/2, CZ0240/3 can be opened on top or at bottom as request. The max. 2 cable entries of CZ0240/4, CZ0240/5, CZ0240/6 can be opened at bottom.

Order specifications:

Outline dimensions:

Cable entry:
CZ0240/1, CZ0240/2, CZ0240/3 Standard configure: Molded plastic 1 x M20, cable outer diameter 5.5-13mm ,
CZ0240/4, CZ0240/5, CZ0240/6 Standard configure: Molded plastic 2 x M25, cable outer diameter 8-17mm .
Mounting way: Pendant mounted type , Vertical mounted type

Other series of CZ0240
