Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KCD3-101
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- Rocker Switch
- Model:
- KCD3-101
- Fuction:
- ON-OFF
- Rating:
- 15A 250VAC; 20A 125VAC
- Housing Color:
- Black, White
- Button Color:
- Red, Orange, Blue, Green, White, Black
- Terminal type:
- Solder Terminals
- Operating Temperature:
- -25℃~+85℃
- Certificate:
- CE,CQC
- Standard:
- IEC Standard
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X7 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:
- 100pcs/box,1000pcs/carton of 2PIN Single Pole 2Way Defond Rocker Switch T85 10A 250VAC
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Description

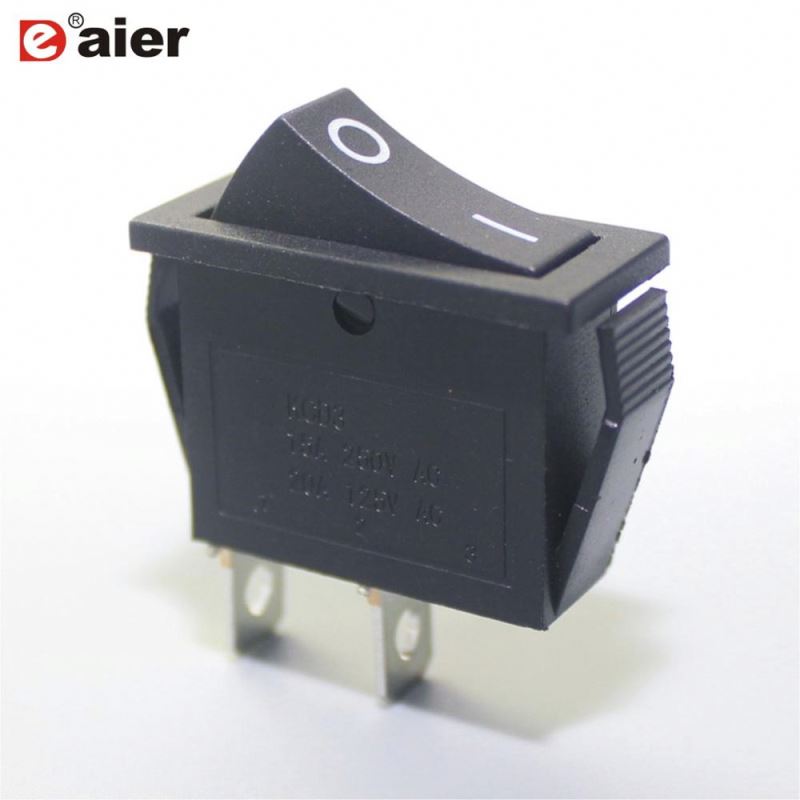

KCD3-101 16 Amp Rocker Switch:
Daier KCD3-101 on off middle size rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
