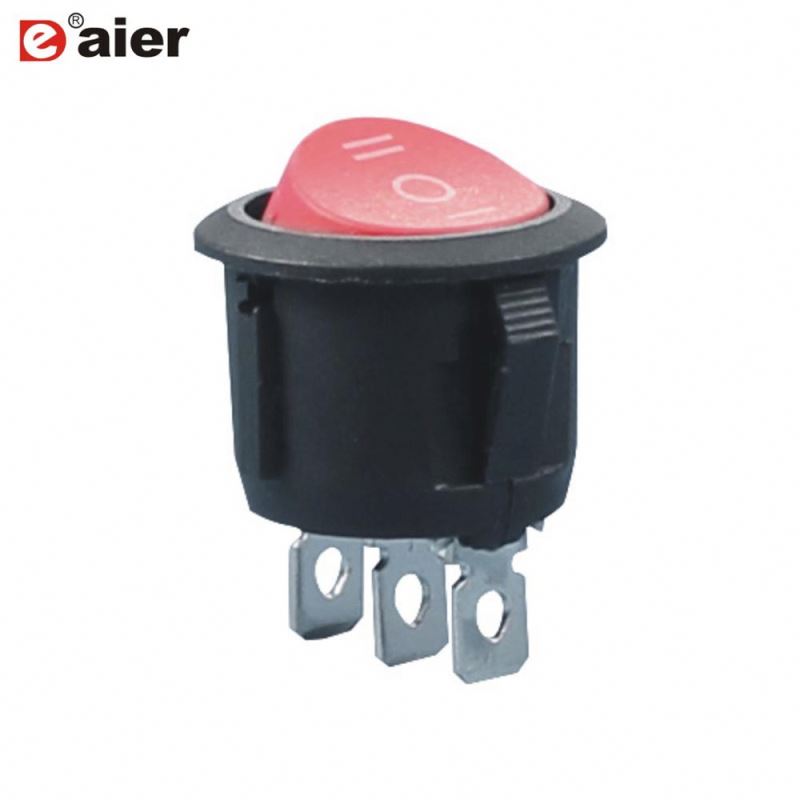

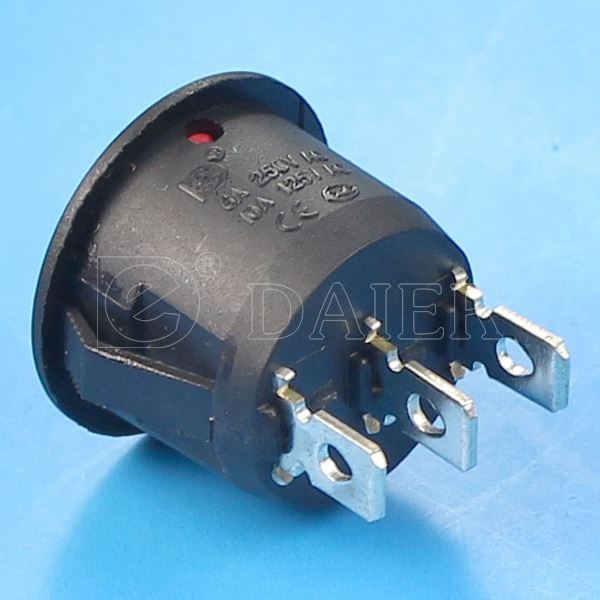

Round ON OFF ON Single Pole Double Throw DC Rocker Switch
Click on the image to view the original image
Product： views：2Round ON OFF ON Single Pole Double Throw DC Rocker Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:10
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KCD1-5-103
Max. Current:
10A
Max. Voltage:
250VAC
Mechanical Life:
10000 Cycles
Item:
Rocker Switch
Model:
KCD1-5-113
Fuction:
ON-OFF-ON
Rating:
10A 125VAC; 6A 250VAC
Housing Color:
Black
Button Color:
Red
Terminal type:
Solder Terminals
Operating Temperature:
-25℃~+85℃
Certificate:
CE,CQC
Standard:
IEC Standard

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X15X7 cm
Gross weight per batch:
0.8 kg
Package Type:
100pcs/box,3000pcs/carton of Round ON OFF ON Single Pole Double Throw DC Rocker Switch
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
lItem
Round ON OFF ON Single Pole Double Throw DC Rocker Switch
Switch Function
ON OFF ON dc rocker switch
Rating
10A 125VAC; 6A 250VAC
Contact Resistance
< 35MΩ
Insulation Resistance
500VDC 1000MΩMinute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES

KCD1-5-103 Three Way Rocker Switch:

Daier KCD1-5-103 on off on miniature round rocker switch offer a high switching current in a compact design.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
