1. led high bay light 3mm edge thickness 29mm height concave-convex glass 74mm cob lens
2.Size:74*29mm
3.Material: Glass,Transparent
4.Beam Angle:Adjustable
Item No. | Type | Size(mm) | Edge thickness | Rim width | Material | Color | Beam Angle | Transmittance |
SL-GL-7830A | Plano-convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 90deg. | >94% |
SL-GL7830B | Inside Convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 90deg. | >94% |
SL-GL7830 | Inside Convex | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 120deg. | >94% |
SL-GL9132 | xx | 91*32 | xx | xx | Glass | Transparent | 60-120deg. | >94% |
Above glass lens using for 30-100w high power led,high bay light,explosion proof light,automobile lamp or other lights | ||||||||
SL-GL10035 | xx | 100*35 | xx | xx | Glass | Transparent | 90deg/100deg | >94% |
SL-GL10040 | xx | 100*40 | xx | xx | Glass | Transparent | 60degee | >94% |
| SL-GL100 | xx | 100 | xx | xx | Glass | Transparent | 120degree | >94% |
Above glass lens using for 30-300w high power led,high bay light,explosion proof light,automobile lamp or other lights | ||||||||
SL-GL5022 | xx | 50*22 | 2.6-2.7mm | 1.2mm | Glass | Transparent | 60-90deg. | >94% |
Above glass lens using for below 30w automobile lamp,spotlight,street light,flood light or other lights | ||||||||
SL-GL7830 | xx | 78*30 | 3.85mm | 3.5mm | Glass | Transparent | 75*120deg. | >94% |
SL-GL9036 | xx | 90*36 | xx | xx | Glass | Transparent | 120*60deg. | >94% |
SL-GL9331 | xx | 93*31 | xx | xx | Glass | Transparent | 120*60deg. | >94% |
SL-GL10635 | xx | 106*35 | xx | xx | Glass | Transparent | 75*135deg. | >94% |
SL-GL1078132 | xx | 107*81*32 | xx | xx | Glass | Transparent | 135*65deg. | >94% |
Above glass lens using for below 30w-100w led street light | ||||||||
Features
1. Rich optical parameters (optional),with high light transmittance (3 mm when the thickness of the penetration rate of 97%),high temperature resistant.
2. Although lens uniform luminous point range is not big, but it"s good for photometric.
3.Belong to a professional lens. The spherical mirror surface polishing,uniform light, light transmittance as high as 94%, is the more commonly used in lens design.
4. led high bay light 3mm edge thickness 29mm height concave-convex glass 74mm cob lens
Application
All LED Light lens,such as led high bay light,street light,industrial light or other lighting products.

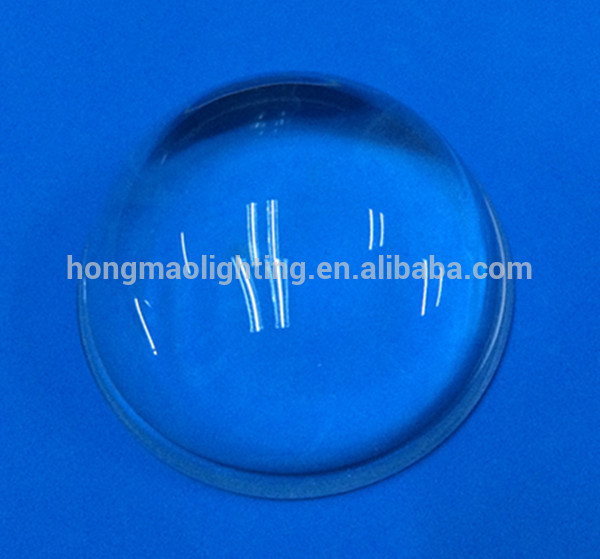

Picture Show
