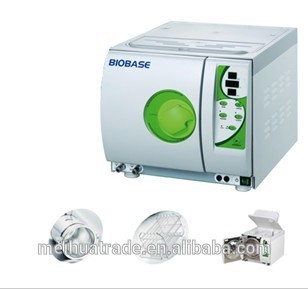

Table Top Class B Dental Autoclave 18L/23L Dental Sterilizer
The newly-designed autoclave sterilizer with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%.
1.Vacuum measurement reaches-0.8bar.It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner.
2.Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.
3.It is installed with BOWIE&DICK which measures the penetration of water steam.
4.Mini printer can be attached to record the process of sterilization.

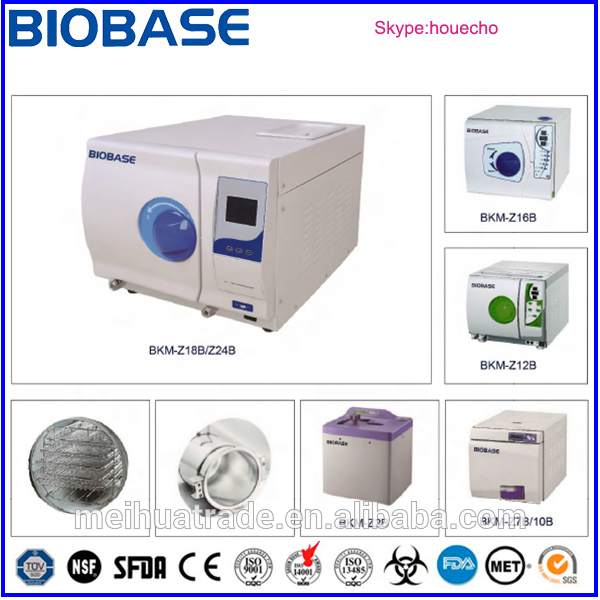

Model | BKM-Z2B | BKM-Z7B | BKM-Z10B | BKM-Z12B | BKM-Z16B | BKM-Z18B | BKM-Z24B |
Capacity | 2L | 7L | 10L | 12L | 16L | 18L | 23L |
Sterilization Class | CLASS B | ||||||
Sterilization Temperature | 121℃,134℃ | ||||||
Special Program | HIV, HBV long-sterilization program | ||||||
Dry System | Vacuum drying system | ||||||
Display | High-light LED tube display | ||||||
Testing System | Bowie &Dick Test | ||||||
Vacuum Test | |||||||
Helix Test | |||||||
Control Precision | Temperature: 1℃ | ||||||
Pressure: 0.1bar | |||||||
Sterilization Data | Optional Mini printer | ||||||
Safety System | Relief valve | ||||||
Hand lock door | |||||||
Pressure lock system | |||||||
Pressure or temperature over load protection | |||||||
Alarm system | |||||||
Water Supply System | Build-in water tank easy to clean | ||||||
Tray Holder | SS basket, SS shelf | ||||||
Chamber | Medical stainless steel 304 | ||||||
Max working pressure:2.3bar | |||||||
Min working pressure: -0.9bar | |||||||
Max temperature: 145℃ | |||||||
Operation Temperature | 5~40℃ | ||||||
Noise | <50db | ||||||
Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | |||||
Power supply | 110/220V±10%, 60/50Hz | ||||||
Power consumption | 1200W | 1400W | 1400W | 1400W | 1800W | 1500W | 1700W |
Chamber Size(mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ240×360 | φ245×360 | φ245*470 |
External Size(mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560*450*400 | 445*550*395 | 560*450*400 | 670*450*400 |
Packing Size(mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660*525*495 | 670*550*500 | 660*525*495 | 770*525*495 |
Net Weight | 26kg | 37kg | 40kg | 43kg | 47kg | 47kg | 53kg |
BIOBASE Meihua Trading Co.,Ltd is the subsidiary of BIOBASE group. BIOBASE,established
in 1999, has been through high and stable development for 15 years,is now with revenues of one hundred million,1200employees in China and abroad offices.The products wemanufacture extend to most of the laboratory items andscientific analytical equipment, covering biological safety cabinets,laminar flow cabinets,fume hoods,incubators,autoclaves,biochemistry analyzers, ELISA microplate processorsdrying ovens,centrifuges,microscopes,biochemical reagents, etc.Our mission is to enable our customers to make the world healthier,cleanerand safer.
