Home > Products > ONN-M9S Industrial Machine Led Light IP67 Led Machine Work Light

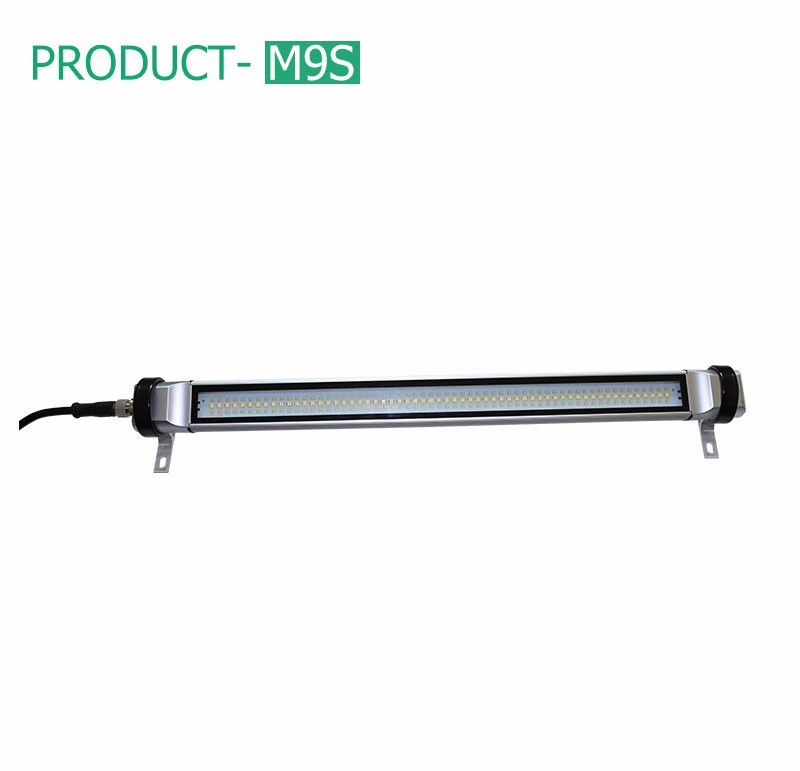

ONN-M9S Industrial Machine Led Light IP67 Led Machine Work Light

Click on the image to view the original image

Product：	views：2ONN-M9S Industrial Machine Led Light IP67 Led Machine Work Light
Branch：	ONN
Size：	59X7X6 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24V /220V

Lamp Power(W):: 24

Lamp Luminous Flux(lm):: 2000

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Color Temperature(CCT):: 2700-3200K / 4000-4500K / 6000-6500K

Working Temperature(℃):: -40 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP67

Certification:: CCC, CE, EMC, FCC, LVD, RoHS, VDE

Emitting Color:: White

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-M9S

Product Name:: IP67 Led Machine Work Light

Voltage:: 24V / 220V

Power Rating:: 7W/12W/16W/20W

Length:: 300/400/600/800mm

Luminous Flux:: 100-110lum / W

CCT:: 2700-3200K/4000-4500K/6000-6500K

View angle:: 120 degree

Working temperature:: -40-50 degree

lifespan:: 50000 Hours

Mounting:: Fixed by round clips

Packaging & Delivery

Selling Units:: Single item

Single package size:: 59X7X6 cm

Single gross weight:: 1.0 kg

Package Type:: 1pcs/ inner box;12pcs/ outer box According to customr's requests

Lead Time:

Quantity(Piece)	1 - 12	13 - 50	51 - 100	>100
Est. Time(days)	5	7	8	To be negotiated

ONN-M9S IP67 Industrial Machine Light Led Machine Work Light CE FCC

Features of M9S LED Machine Work Lights

1. Made of Aluminium and Tempered glass . Strong and good heat dissipation .

2. High efficiency led , Isolated Driver . Ensure Long lifespan .

3. Laser Printing customer"s Logo on lamp body . Highlight your brand .

4. Universal mounting clips . Can adjust view angle freely .

5. Optional Voltage for different area : AC/DC 24V or AC 100-240V

6. IP67 CE FCC Approved Led Machine Light

Product Size Drawing and Specifications :

Specifications :

Model	Voltage input		Voltage range		CCT range
M9S-B1	AC/DC 24V		AC/DC 24±2V		6000-6500K
M9S-B2	AC/DC 24V		AC/DC 24±2V		4000-4500K
M9S-C1	AC220V (50/60Hz)		AC100-240V (50/60Hz)		6000-6500K
M9S-C2	AC220V (50/60Hz)		AC100-240V (50/60Hz)		4000-4500K
Cable	0.55M 0.55M(with connector)
Mounting	O shape bracket ring
Specification	(300)	(400)		600	800
Power consumption	7 W	12 W		16 W	20 W
Current input	(24V)300mA (220V) 32mA	(24V) 470mA (220V)55mA		(24V) 690mA (220V) 75mA	(24V) 840mA (220V) 90mA
Lumens	665Lm	998Lm		1498 Lm	1997 Lm

IP rating	IP67	CCT range	6000-6500K	4000-4500K
Lumens efficiency	90-100Lm/W	CRI	≥80
Driver	(220V) Isolated	Power factor	(220V)≥0.9
Surface temperature	<60℃	Emitting angle	120°
Lifetime	50 000H	Mounting	Ceiling

Package Data :

Packing material	Foam bag + Innerbox + cartons
Size of products (MM)	300	400	600	800
N/W of one light (Kg)	0.53	0.705	1.02	1.22
G/W / cartons (Kg)	15.5	10.5	15.5	13.5
Qty / carton (PCS)	24	12	12	9
Size of inner box(LWH)mm	780285233	580285233	780285233	990210233
Size of outer carton(LWH)mm	7706070	5706070	7706070	9706570

Sales terms

MOQ: Full carton ( 12pcs ) . Accept sample order
Payment: T/T, Paypal, Western Union. 30% payment in advance, balance paied before shippment.
Production Time: 5-7 days for sample order, 7-15 days for official order

Application :

All kind of refrigeratory , assembly line Machineinterior lighting, food factory, pharmaceutical factory, aquaculture industry , mushroomindustry (applicable for all the places which is not easy to change place ,have the needs of water-proof, explosion-proof,it is the revolutionary alternatives of traditional "three anti-light" and explosion-proof lights).
