Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1A
- Output Power:
- 2.4-4W
- Output Type:
- DUAL
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- 10-150V
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Product Name:
- LED emergency powersupplyinverter
- Model:
- FAT-LED-F1A
- Power:
- 3-40W
- Battery:
- Lithium ion 3.7V 2400 mAH
- Emergency time:
- 2H

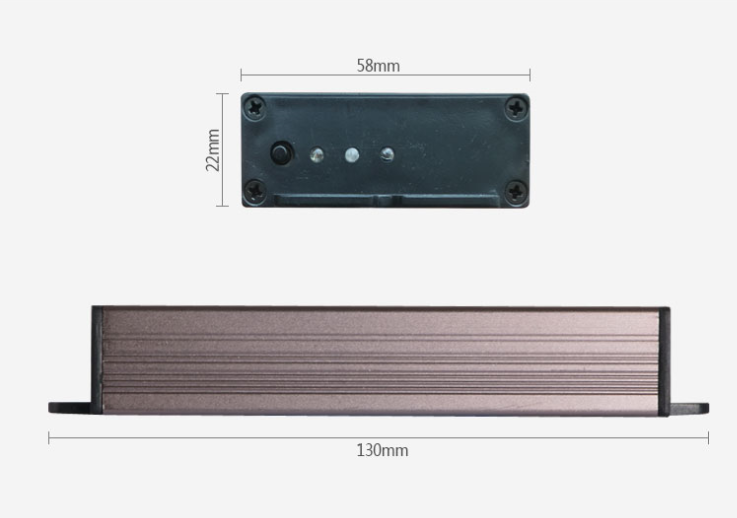

- Dimension:
- 133*58*31mm
- Certification:
- CB CE RoSH
- Warranty:
- 2 Years
Supply Ability
- Supply Ability:
- 200000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 1pcs/box;100pcs/CTN
G.W.:17.8KG
- Port
- Jiangmen/Guangzhou/Shenzhen
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated
Video Description
Product Description

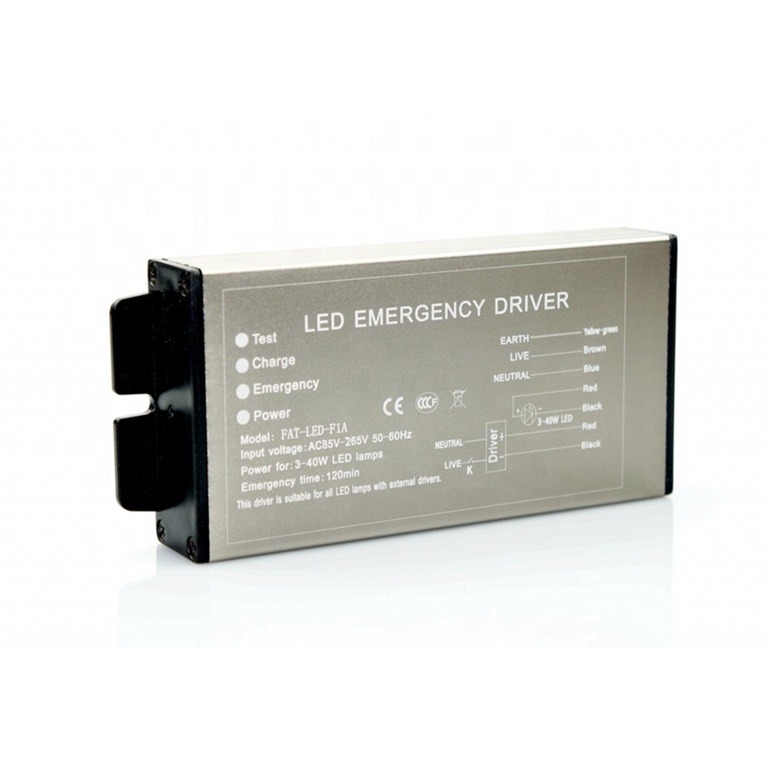

Led down light panel Light led emergency powersupplyinverter
This emergency driver is suitable for all 3-40W LED lamps with external driver. There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.
SPECIFICATION
Model | FAT-LED-F1A | Material | ABS+Aluminum |
EmergencyPower | 4W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | Emergency Time |
Battery | Lithium battery, 3.7V 2400mAh | Working Voltage | AC85V-265V 50/60Hz |
AC Protection | 1A 250V | DC Protection | 5A 250V |
Battery cycle time | >500 times | Working Temperature | -10℃-55℃ |
IP Rank | IP30 | Luminous Flux | >100lm |
Battery cycle time | >500 times | Dimension | 130×55×21mm |
Type of Lamp | all 3-40W LED lamps with external driver,such as led panels ,down light ,spot light and so on. |
Product Details
Wiring Diagram
