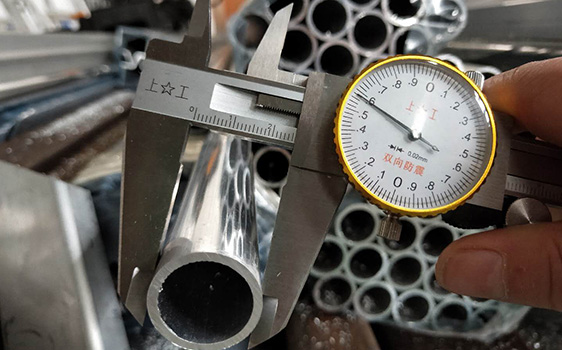

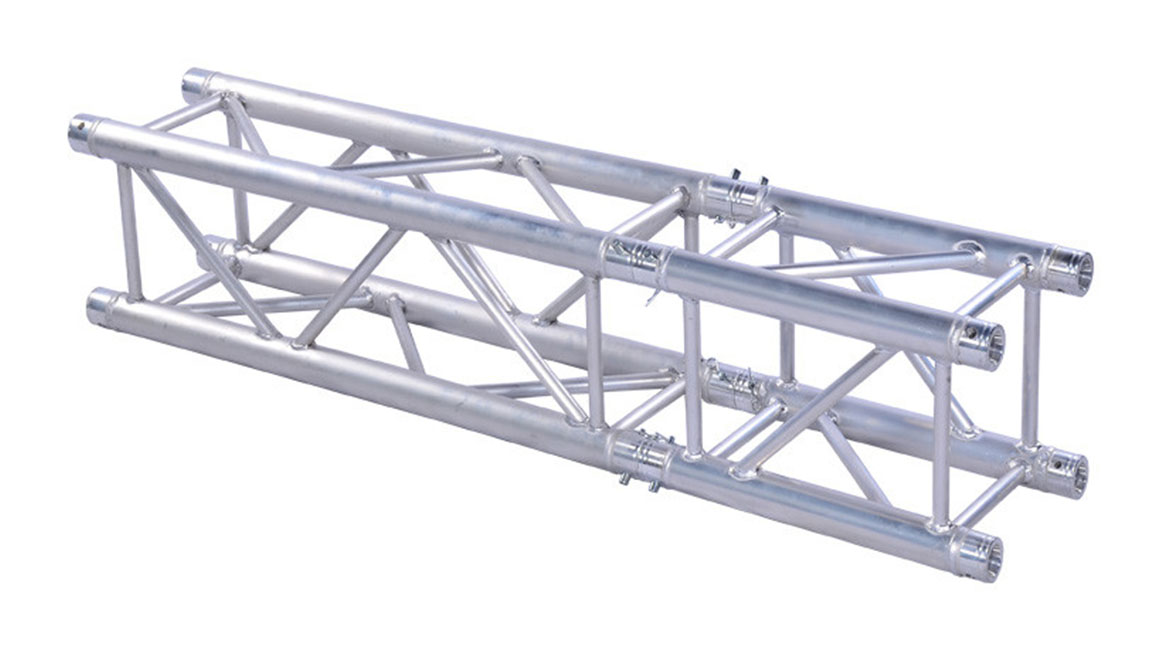

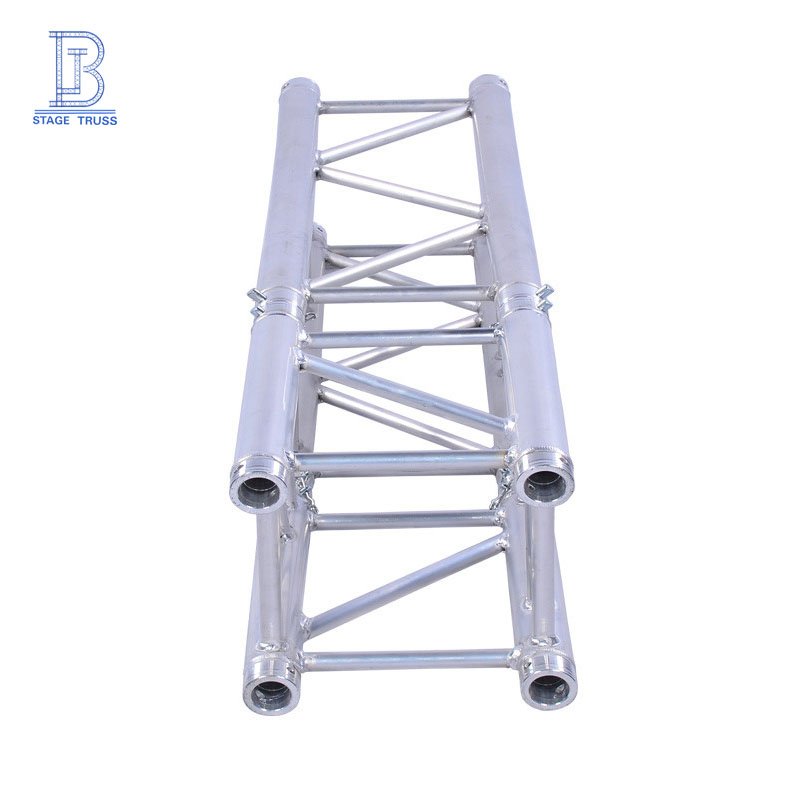

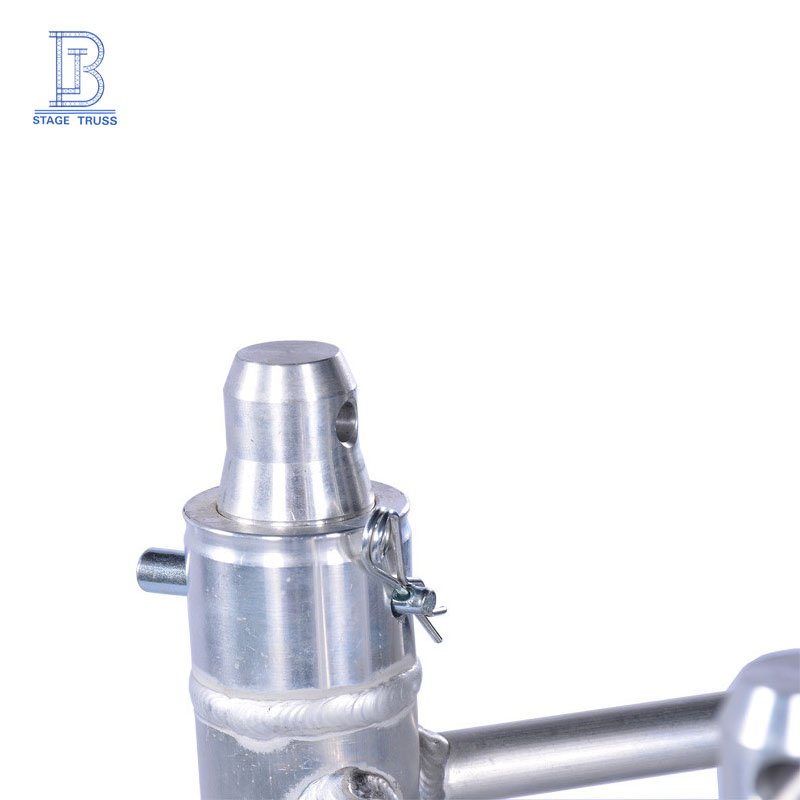

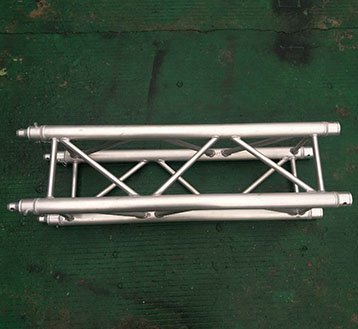

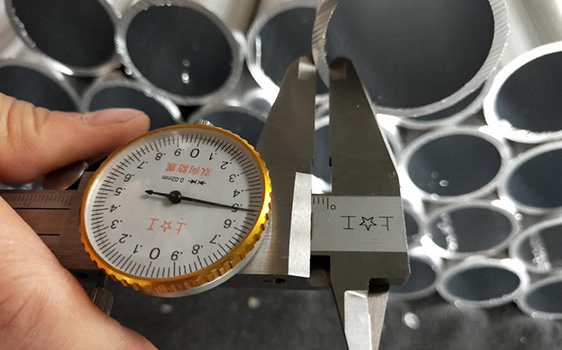

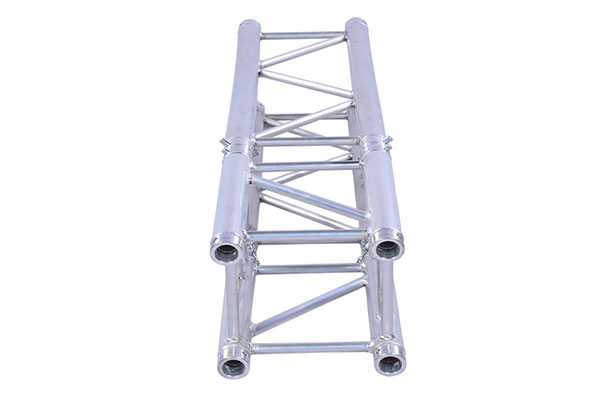

The CXF290 square truss designed as a medium-duty truss system, This system is connected via a special conical connector with excellent strength and stability,creating optimal traction, convenient for assembly and collection. All the tubes and connectors welding through the mould of semi-automatic, the finished products are fixed in the standard mould welding can be guarantee the accuracy of truss. In any conditons connect smoothly.
Suitable for use on roof truss inclined beams.
Easy to build and move.
Suitable for mild weather when used outdoors.
Qualified tensile strength, durable.
Not rust-prone, recyclable, recyclable.
Please use within the load-bearing range.
Package size, volume
Length | Dimension | CBM | weight |
0.5m | L55xW31xH31cm | 0.05m³ | 4.8kg |
1m | L105xW31xH31cm | 0.10m³ | 7.3kg |
2m | L205xW31xH31cm | 0.20m³ | 12.4kg |
3m | L305xW31xH31cm | 0.30m³ | 17.6kg |
4m | L405xW31xH31cm | 0.40m³ | 22.5kg |
Bearing table
Span | 2m | 4m | 6m | 8m | 10m | 12m | 14m |
CPL in kg | 1301 | 702 | 500 | 402 | 300 | 210 | 198 |
UDl in kg | 1450 | 1120 | 800 | 615 | 510 | 400 | 398 |

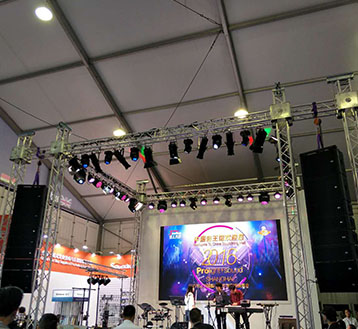

Thank you for your interest in our products. We provide a variety of aluminum alloy stage trusses and stage solutions for concerts, trade shows, runways, theaters, stores, competitions, nightclubs, T-Taiwan and more. Do you plan to hold outdoor events and large-scale exhibitions? We are ready to provide solutions to meet your needs, we give customers timely response, qualified products, on time delivery and good after-sales service.
Our professional and experienced team members are happy to provide each customer with the highest level of customer service, we strive to provide a good customer experience, help you choose the right number and size of stage trusses and accessories, due to our professional transport agents, We can arrange goods to almost all ports in the world. For some regions/countries, we can even provide door-to-door transportation services if the policy is feasible.
1. Regular delivery time is 5-45 days. For customized products, the delivery time will be slightly longer depending on the complexity. The date of transportation will depend on the port of destination.
2.You can provide installers with installation instructions.
3.For the quality issues during the warranty period, the buyer will provide free replacement of components.
4.For issues that are not covered by the warranty, we only charge for the attachment.
5.If you have any questions or questions about the product, please contact us.
