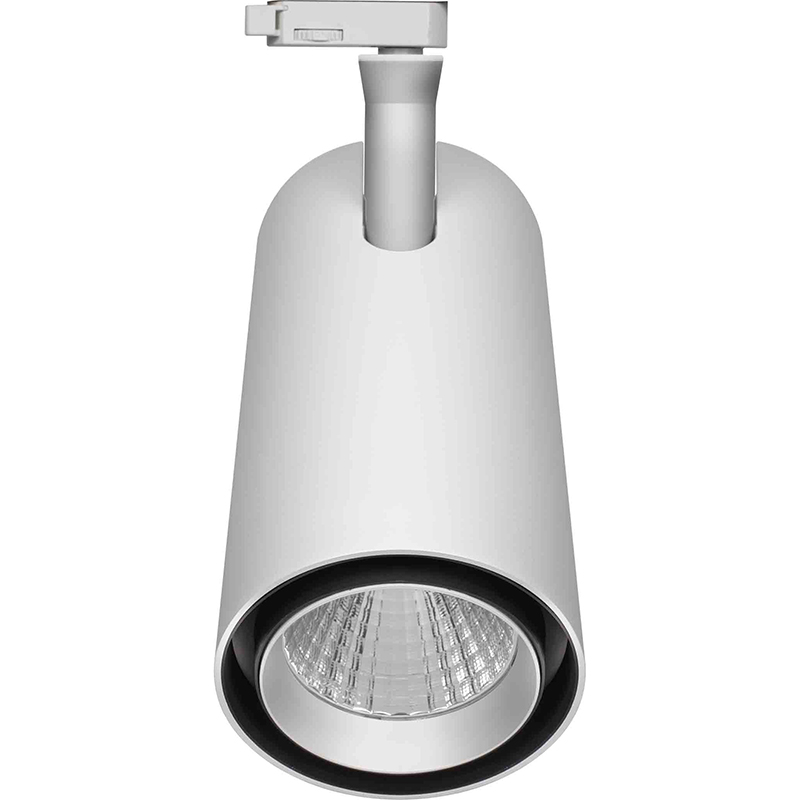

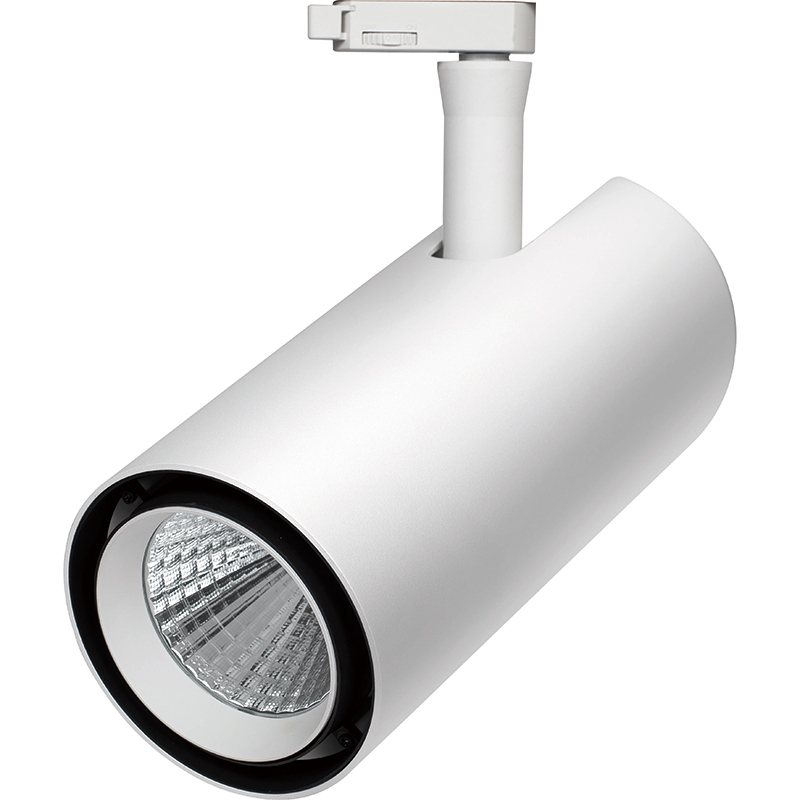

Track light made of die-cast aluminium; surface powder coated in white ,black or silver; spotlight head 355° rotatable and 180° tiltable; driver built in the lamp body tube, compact and nice,; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI ≥ 90; min. 80 % of the luminous flux after 50000 hours; BO 70 BASIC: high quality aluminium reflector with spherical facet finish; high-gloss anodised; precise radiation characteristic with four different beam angles; installed and exchanged without tools; BO 70 degree of protection IP 20; PC I; adapter for toolless insertion or movement on a variety of 3-phase power tracks; optional DALI
Product test data
| 12° | 24° | 36° | 50° | |||||||||
| h(m) | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| d(m) | 0.26 | 0.51 | 0.77 | 0.42 | 0.83 | 1.25 | 0.57 | 1.14 | 1.71 | 0.86 | 1.71 | 2.56 |
| Em | 17435 | 4334 | 1893 | 8678 | 2146 | 928 | 5392 | 1327 | 576 | 3099 | 775 | 345 |
| Emax | 25021 lx | 6202 lx | 2718 lx | 13033 lx | 3219 lx | 1402 lx | 8206 lx | 2033 lx | 872 lx | 4929 lx | 1232 lx | 548 lx |
