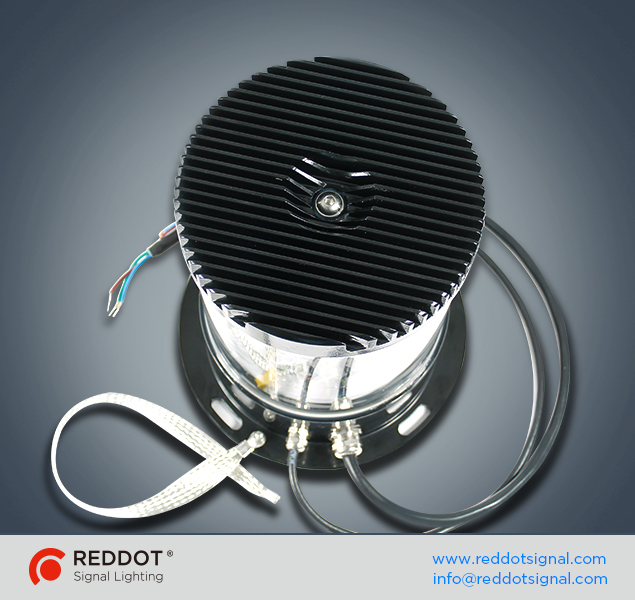

F865 LED ICAO Medium Intensity Type A/L-865 White medium intensity Aircraft warning Light
F865 is a white LED medium intensity obstruction light, generally used on unpainted tall structures more than 45 meters. F865 flashes at 20,000cd at daytime and twilight and will automatically reduce intensity to 2,000cd at nighttime.
F865 white medium intensity LED obstruction light can either work with power converter box and controller for monitoring and functions as a system, or F865 self-controlled configuration can work independently as an economical solution.
FEATURES
•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution for complying ICAO medium intensity type A and FAA L-865 and L-866
• Aluminum heatsink provides excellent thermal dissipation performance
•Aluminum base with powder painted provides good weather and corrosion resistant
• Excellent shock and vibration resistant
• Longer lifetime expectancy, almost maintenance free
• Lower voltage (than xenon) makes it safer for installer
•Internal LED driver and constant current regulator make the light illuminate steadily
•Built-in 20KA surge protector module to protect the light from induction lightning strike
•Prewired cable makes wiring job easier
Independent F865 DC white medium intensity obstruction light
When ①input voltage is DC power(12VDC/24VDC/48VDC) and ②F865 works independently with self-controlled program:
←One set of F865 system is only a 48VDC/24VDC/12VDC F865 fixture.
Independent F865 AC white medium intensity obstruction light
When ①input voltage is AC power(85-265VAC) and ②F865 works independently with self-controlled program:
←One set of F865 system is composed of a F865 48VDC fixture and a 960W power converter box.
F865 DC white medium intensity obstruction light with controller in a AC input system
When ①input voltage is AC power(85-265VAC) and ②there are multiple F865 units with controller:
←the system will include 48VDC F865 units, AC controller and power converter box
F865 DC white medium intensity obstruction light with controller in a DC input system
When ①input voltage is DC power(48VDC/24VDC/12VDC) and ②there are multiple F865 units with controller:
←the system will include DC F865 unit with other types lights and DC controller
For Example, F865A220P-SP, means F865 LED medium intensity obstruction light, 85-265VAC, white flashing@ 40FPM, 20,000cd+25%@day&twilight, 2,000cd+25%@night, with 20KA surge protector
