Supplier price types of pir sensor alarm mini 12V gsm infrared wired curtain pir human motion movement detector
This product is the wired curtain PIR detector. Hereinafter be called the detector. It adopts advanced technology in signal processing and provides superhigh detection and anti false alarm performance, which ensures its stability in design. Any intruder passing through the detecting area, it will automatically detect the body movement. Any dynamic movement, it will send the alarm signal to the mainframe. This product is suitable for the safety in residential areas, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.Screwing-type mounting bracket, more stable2.Adjustable detecting distance
3.Auto temperature compensation
4.Low power indication
5.Tamper alarm function
6.Alarm delay optional
7.Anti RF(20V/m -1GHz)
8.Wireless signal output
9.Low power consumption design
10.SMT process, anti-RFI, anti-EMI
Technical specification:
| Operating voltage | DC9-24V |
| Consumption current | ≤18mA(DC12V) |
| Operating temp | -10ºC~+50ºC |
| Installation mode | wall mounted |
| Installation height | about 1.8m |
| Detecting distance | 9m |
| Detecting angle | 15 degrees |
| Alarm output | N.C |
| Anti-dismantle switch | N.C |
| Outline size | 100*55*47.5*mm |

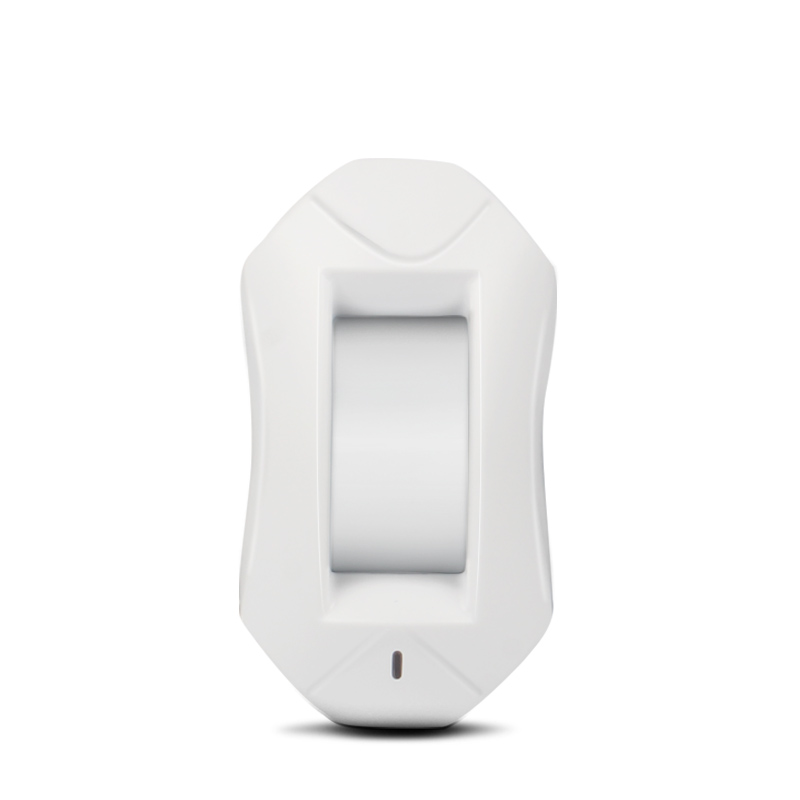

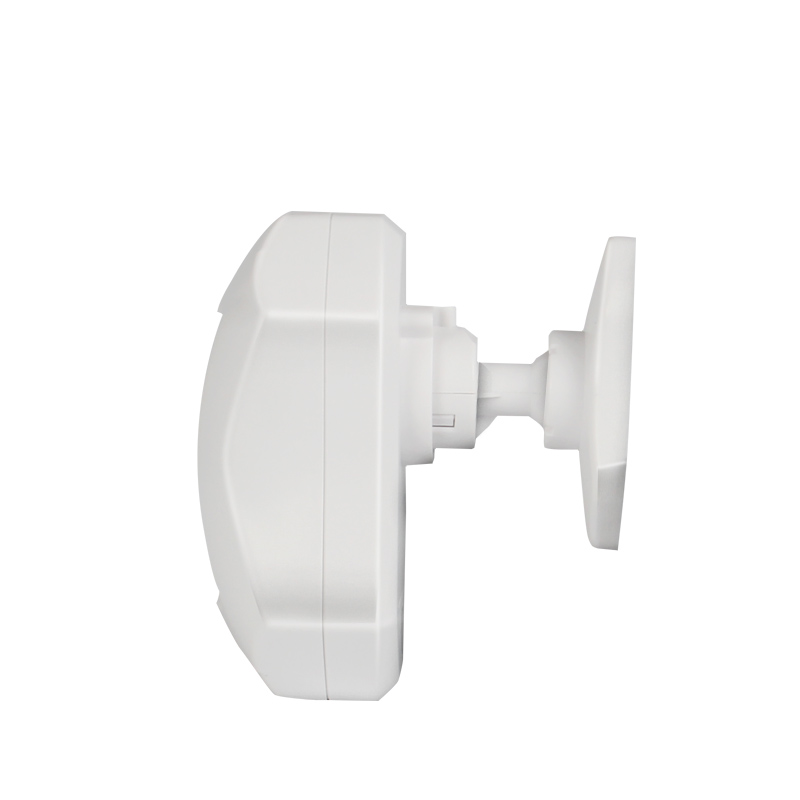

Product Pictures:
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
