wireless smoke independent standalone heat detector with 9v battery
Photoelectric Smoke & Heat Alarm
SR-820D Series
SR-820DHS Independent Photoelectric smoke & heat alarm
SR-820DHM-AC Wireless interconnected photoelectric smoke &heat alarm
SR-820DHR Wireless photoelectric smoke &heat alarm
SR-820DHW-AC Wireless interconnection photoelectric smoke &heat alarm
Main Features:
Battery operated or AC power with backup battery
Photoelectric sensing technology
Lower battery indication
Loud 85dB audio alarm
Instant test button
MCU processing
Test and hush button
Interconnection function
57℃(135℉)fixed temperature alarm
Execute criterion: EN54-4,UL539,EN14606; UL217
Technical specification:
Model No. | SR-820DHS | SR-820DHM-AC | SR-820DHR | SR-820DHW-AC |
Operating voltage | 9V battery | AC110/220V(9V backup battery) | 9V battery | AC110/220V(9V backup battery) |
Interconnection | N/A | Up to 40 pc smoke detectors | N/A | Install within the radius of 200 m |
Code form | N/A | N/A | 2262/1527 | 2262 |
Sending frequency | N/A | N/A | 433MHz | 433MHz |
Radio distance | N/A | N/A | 200 m(open area) | 200 m(open area) |
Alarm temperature | 57℃ | |||
Sensitivity | 2.06%ft±1.3%ft | |||
Sound level | 85dB/3m | |||
Installation | Wall or Ceiling mounted | |||
Working environment | -10℃~+50℃(≤95%RH No congelation) | |||
Dimension | 128*38mm | |||

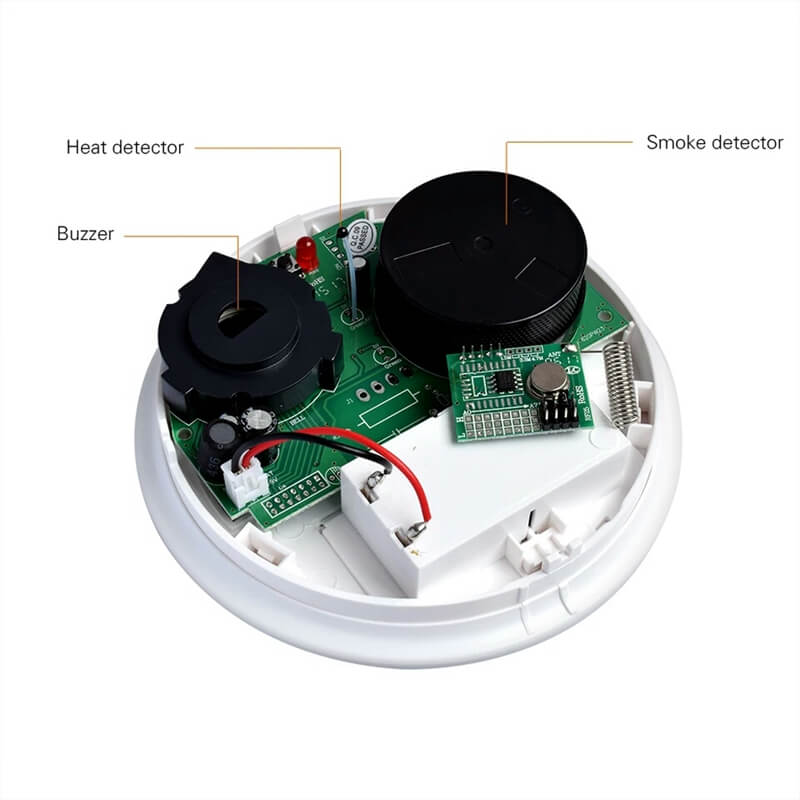

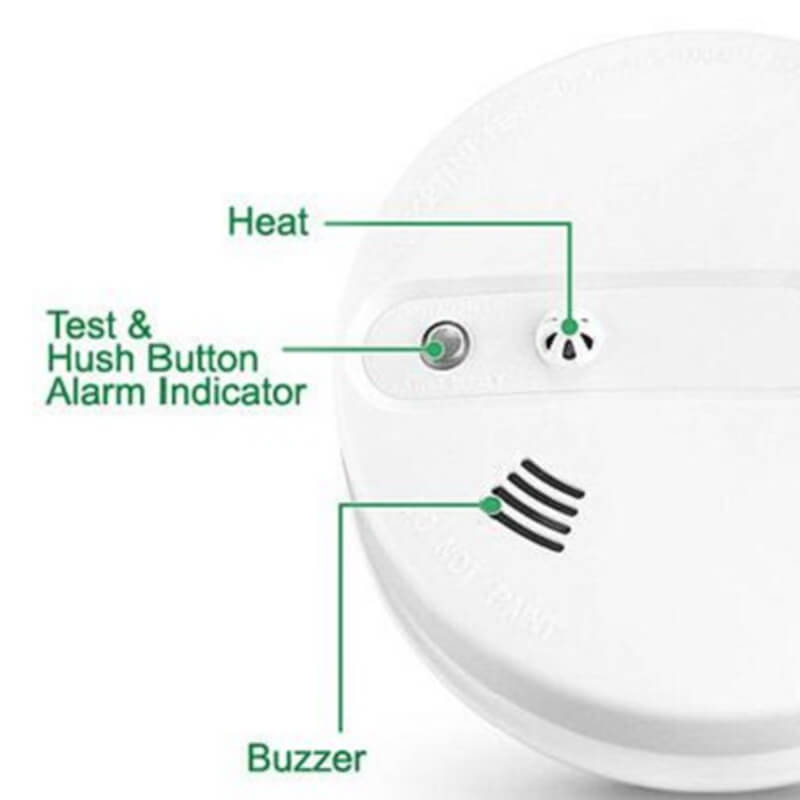

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
