Home > Products > WS30BF3NOL IP68 waterproof 30mm 2.10 flat operator 1NO Latching 5A 24VDC Fly Cable Stainless Steel 316L piezo switch

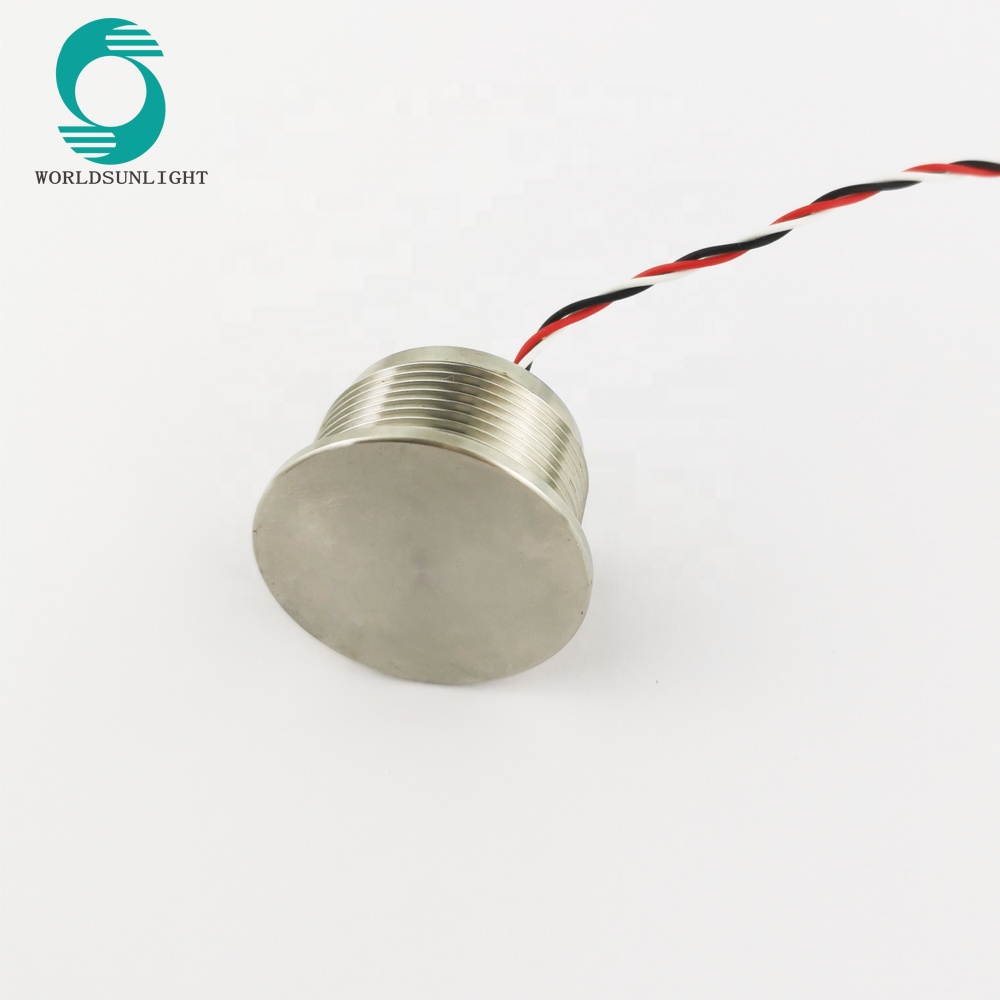

WS30BF3NOL IP68 waterproof 30mm 2.10 flat operator 1NO Latching 5A 24VDC Fly Cable Stainless Steel 316L piezo switch
Click on the image to view the original image
Product: views:8WS30BF3NOL IP68 waterproof 30mm 2.10 flat operator 1NO Latching 5A 24VDC Fly Cable Stainless Steel 316L piezo switch
Branch: WORLDSUNLIGHT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 06:15
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
WORLDSUNLIGHT
Model Number:
WS30BF3NOL
Protection Level:
IP68/IK10
Max. Current:
200mA(1A 5A 10A available)
Max. Voltage:
24VAC/DC
Protection level:
IP68
Body Material:
Stainless Steel
Terminal:
Fly Cable Available
Rated voltage:
DC/AC 24V
Operation type:
Latching
LED voltage:
None
LED color:
None
Certificate:
CE RoHS
Head Type:
Flat

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
10X10X10 cm
Gross weight per batch:
1.0 kg
Package Type:
Exported cartons
Lead Time:
Quantity(Piece)1 - 10000>10000
Est. Time(days)7To be negotiated

WS30BF3NOL IP68 waterproof 30mm 2.10 flat operator 1NO Latching 5A 24VDC Fly Cable Stainless Steel 316L piezo switch



Product Description

Specification:



Product typePiezo switch
Degree of ProtectionIP68
Operating Temperature-25°C ~+55°C
Wire size24AWG 30cm long
Switch functionLatching
LED colorsR/G/B/Y/W,Double color,Tricolor
Switch mounting hole size12mm/16mm/19mm/22mm/25mm/30mm
Body Colours / MaterialsNatural/Blue/Black/Green/Gold/Red/purple/Stainless steel
LED VOLTAGE3V/5V/6V/12V/24V DC
Switch statusNormally open/Normally closed/NO prolongated pulse
TerminalsFlyingleads/Cable
Ratings200ma/1A/5A/10A/15A(24VDC)
OperatorFlat/Chanmfer/Finger location,and can be customized





Model Number Introduction:









Packaging & Shipping







Our Services







Company Information



XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of push button switches and electronic environmental protection products.

   We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS,SGS,ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.







FAQ



Q1: Are you a manufacturer?

A1:yes. We have 3 years export exprience.



Q2: Delivery time?

A2:Will send the goods out within 72 hours after the order confirmed.



Q3: After Sales Service?

A3: if u have any questions about the receuved product, we will try our best to solve it.



Q4: Return the goods?

A4: If the product really has quality problem, we will accept return the old one and send again.
