CE 1 year warranty 380V uv curing machine for ultraviolet lamp
Description:

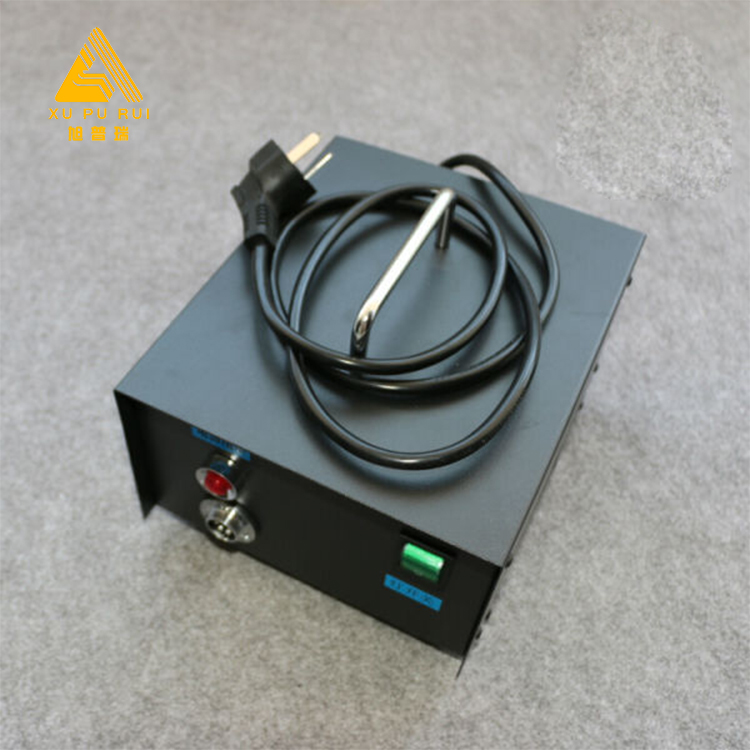

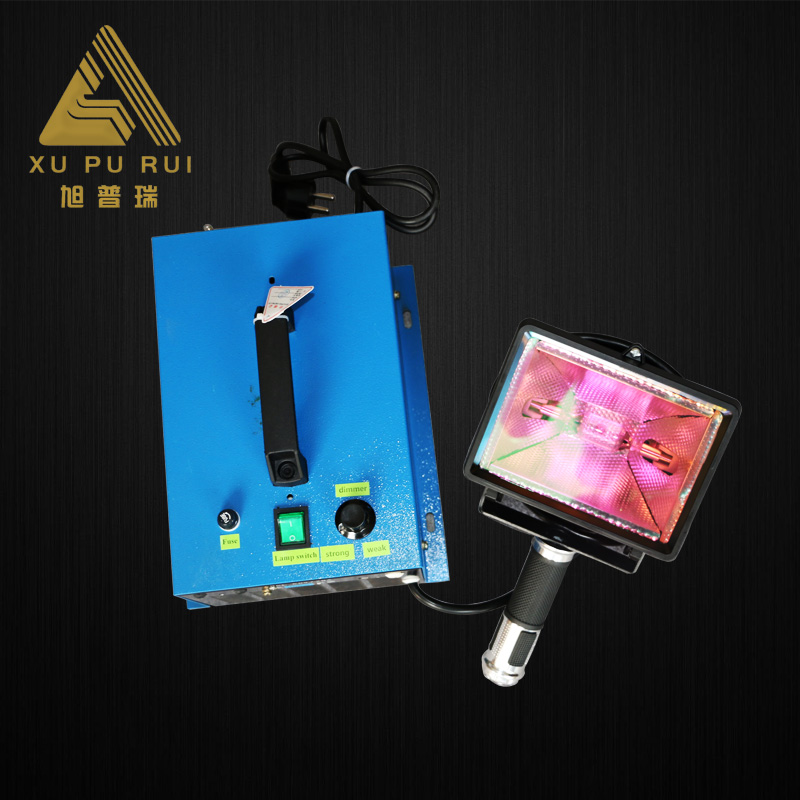

This machine is a set of portable ultraviolet curing equipment, which is suitable for small batch production. It is designed to split structure, consisting of UV lamp box and power supply box. Due to its high flexibility and versatility, This UV curing machine has been widely used in UV curing process.
Features:
l Wide usage range
l Instant curing
l Large irradiation area
l Easy and convenient
l easy-to-use and removable
l Multi-angle curing available
l Optional quartz filters
l Enhanced cooling system
l Automatic air switch, safe to use
l constant work
This drying machine is widely applied to repairments for glass, plastic, PCB, crystal craft, marble and so on. It is easy to carry and operate.
Specification of one type machine:
| radiation distance | 80mm-200mm |
| power density | 80-120w/cm |
| spectral peak | 365nm |
| tube high-pressure mercury | 250w |
| UV lamp power | 250w |
| overall length | 100mm |
| arc length | 35mm |
| lifetime | >800hs |
| size | 400L*310W*250H |
