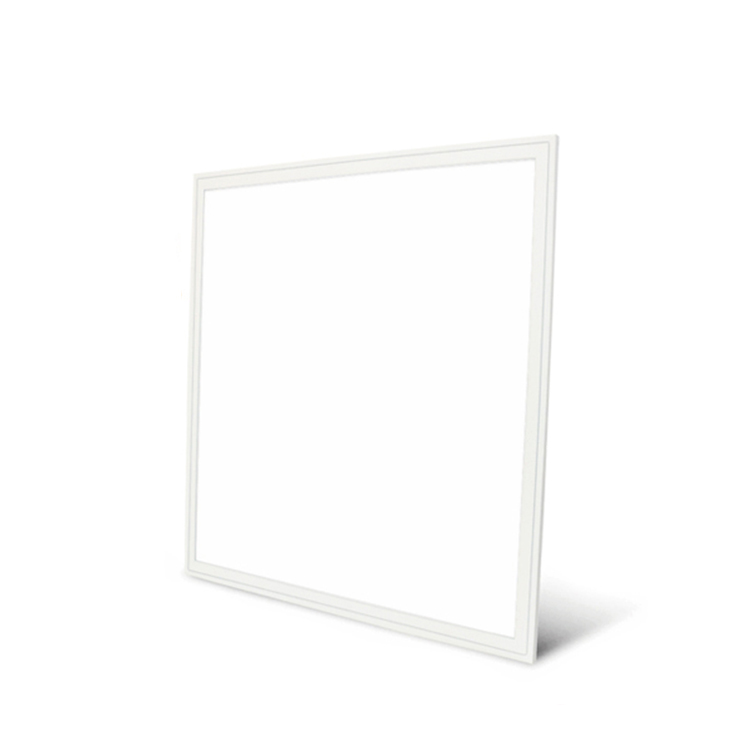

White Frame SMD LED Slim Panel Lights 60x60 Office 40W, Europe Panel Light LED, Square LED Flat Panel Light

Click on the image to view the original image

Product：	views：9White Frame SMD LED Slim Panel Lights 60x60 Office 40W, Europe Panel Light LED, Square LED Flat Panel Light
Branch：	YUSING
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:46

Product Details

Overview

Quick Details

Input Voltage(V):: AC220-240V

Lamp Luminous Flux(lm):: 3200

CRI (Ra>):: 80

Working Temperature(℃):: -10 - 45

Working Lifetime(Hour):: 25000

Lamp Body Material:: Aluminum

IP Rating:: IP20

Certification:: CE, EMC, LVD, RoHS

Place of Origin:: Zhejiang, China

Brand Name:: YUSING

Model Number:: PL1005B

Application:: office

Light Source:: LED

Warranty(Year):: 2-Year

Color Temperature(CCT):: Cool White

Lamp Luminous Efficiency(lm/w):: 80

Key Words:: led panel

Installation:: Recessed,Surface Mounted optional

Size:: 60x60x1.2cm

Beam Angle:: 120°

PF:: >0.9

CCT:: Cool White/Pure White

Luminous Efficiency:: 90-130LM/W optional

LED Light Source:: SMD 4014

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month for led panel light

Packaging & Delivery

Packaging Details: MOQ 1000PCS
1PCS/Inner box
6PCS/CTN
12.8KG/CTN
0.101Cubic meter/CTN

Port: Ningbo/Shanghai/Shenzhen

Lead Time:

Quantity(Pieces)	1 - 1000	1001 - 3000	>3000
Est. Time(days)	30	35	To be negotiated

Product Description

Code

Power

Consumption

Lumen

(lm)

Material Body

LED Type

Size:L*W*H
(cm)

PL1005B

32W

2560

Aluminum

SMD 4014

60x60x1.2

PL1005B

40W

3200

Aluminum

SMD 4014

60x60x1.2

Details

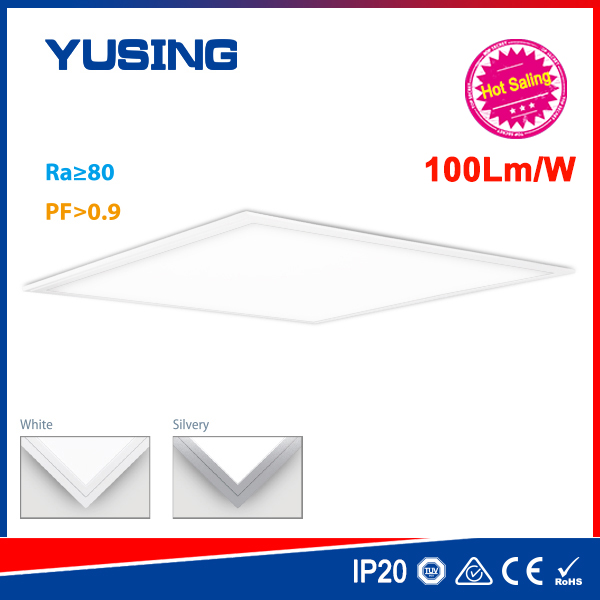

	White color frame or silver color frame can be choice.
Frame Good aluminum frame Beautiful ladder design Shockproof worry free lens
	Back details Aluminum body Quick click installation
Driver Advanced super longlife and stable driver. No delay on start, no warm up time required, no noise, no flickering.

Features

Testing reports are available.
Energy saved up to 50%.
Advanced super longlife and stable driver.
No delay on start, no warm up time required, no noise, no flickering.
No UV or IR radiation in the beam, mercury free, lead free.
Special circuit design, every LED can work separately, so it can avoid be influenced by a broken LED cause.

Typical Applications

Commercial Lighting ;
Office Lighting ;
Hospital Lighting ;
Supermarket Lighting ;
School lighting ;
Home lighting ;
Supermarket, etc.

Illustration For LED Panel Light Installation
