Product Benefits

☛Control mode:use smart phone APP,Pad,remote control,panel switch,voice control etc. to achieve smart control by wireless connection.

☛Bluetooth MESH control is able to switch on&off，timing,adjust brightness by wireless workgroup,control by demand to achieve energy saving.

☛ Color temperature and brightness can be adjusted by demand,intelligent light change,protect eyes deeply.

This item with speech control,match with WIFI convert Bluetooth gateway,can be remote control.

Smart home environment 24hrs light color transfermation diagram

Electrical parameters

Power（W）	7.0W±1W
Power factor	0.5
Input voltage（V）	AC85-265V
Input current（A）	0.025A
Driver	Internal driver/isolated
Standby power dissipation	≤0.5W
Control model	Bluetooth PWM,Common anode,Quad output
Control distance	30-60M
Bluetooth edition	BLE 4.2，Mesh
Bluetooth communication standard protocol	IEEE 802.15
Joint quantity	Mesh automatic network 10000PCS,Group network:8 groups,each group 200PCS 8 Groups,200pcs/group
System compatibility	iOS 8.0 or aboveAndroid 4.3 or above

Photoelectric parameter

Safety parameter

Dielectric strengt	500V
Leakage current	5mA
Isolated resistanc	≥2MΩ
Protection class	IP20
Vibration test	Light up and slap working palform 5 times
Working environmen	Normal temperature/non-closed environment
Approval	CCC / CE / FCC

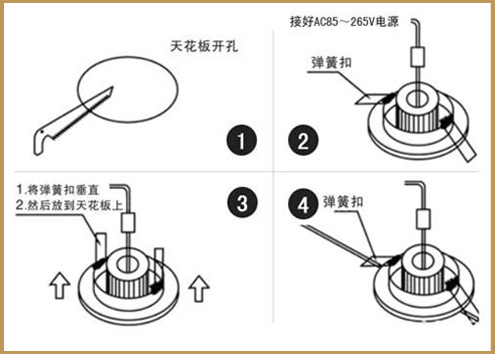

Installation instruction

Packing Information

Application
