Product Details

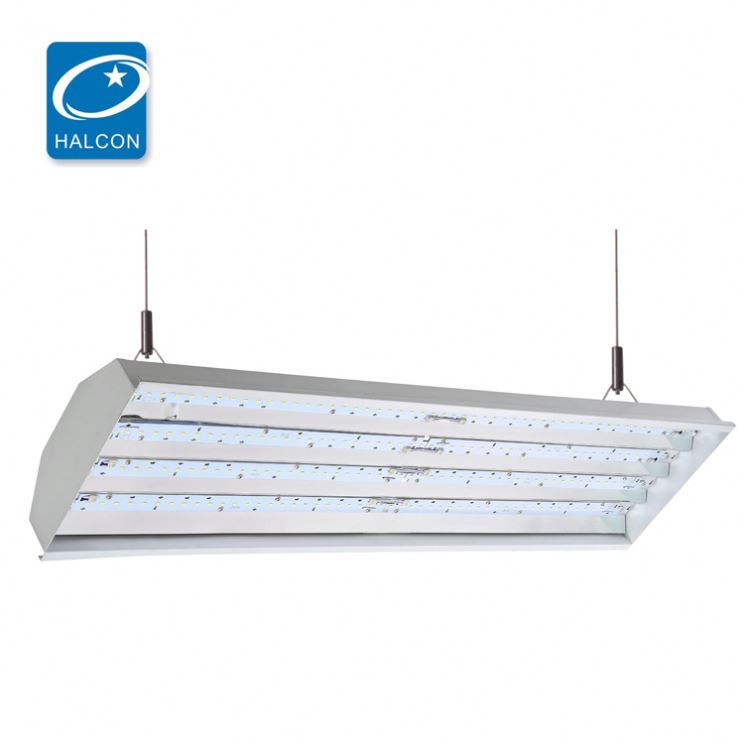

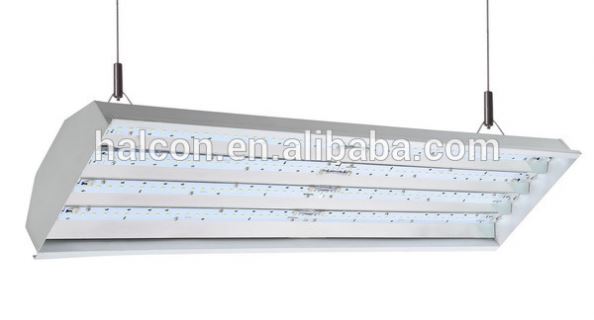

5 years warranty 150w high bay pendant light retrofit e40 80w high bay lighting fixture for school
Specifications of hospital led high bay light fixture:
- Housing: 0.6mm steel sheet with high quality powder coated
- Louver:Alanod specular 320G with 86% or metal reflector with white powder coated.
- Eletrical Components:
- LED Module: UL/CUL approved LED module.
- Wattage: 80W,120W,100W,150W,180W & 210W
- Lumen: 13827 lumen~24000 lumen
- LED Life: 50,000 hours
- Color: 4000K
- CRI: 80%
- LED Dirver: UL/CUL approved LED driver
- Output Mode:Constant Current
- Voltage: 120 to 277VAC
- Installation:surface mounted or hanging
| Model | Watts | Lumen | LED Qty | LED type | CRI | Warranty |
| HB-4-80W | 80W | 8995.39 | 208 pcs | 5630 | 80% | 50000 hrs |
| HB-4-120W | 120W | 10380 | 240 pcs | 5630 | 80% | 50000 hrs |
| HB-6-100W | 100W | 13827.4 | 312 pcs | 5630 | 80% | 50000 hrs |
| HB-6-150W | 150W | 15954.6 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-180W | 180W | 18000.1 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-210W | 210W | 24000 | 468 pcs | 5630 | 80% | 50000 hrs |
5 years warranty 150w high bay pendant light retrofit e40 80w high bay lighting fixture for school
Photometric curves:
Features of hospital led high bay light fixture:
| Applications | Warehouses/Factory/Showrooms/Display Centres |
| It marries our best LED technologies with our most popular high bay product. | |
| The result is high-performance,configurable LED luminaire. | |
| That is ideal for warehousing, manufacturing,and gymnasiums. | |
| Advanced Optics | Narrow and wide distributions available to meet both horizontal and vertical light level requirements. |
| Reflectors feature precision-formed optics utilizing premium materials. | |
| Emergency Pack | Optional factory-installed emergency battery pack in the center channel will provide 1000 lumens. |
| (nominal) for a minimum of 90 minutes. | |
| Only applies to 9000 through 24,000 lumen fixtures. | |
| Controls | Fixture can be equipped with an occupancy sensor. |
| Devices are factory-installed and require minimal labor to set up during fixture installation. | |
| Dimming | Drivers come standard with 0-10V dimming leads capable of variable dimming down to 10%. |
| Finishes | Standard fixture is two-toned with a white body. |
| Glare Control | A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed. |
| Optional Wire guard | Optional wire guard protects fixture from environmental hazards. Factory- or field-installed. |
Professional hospital T5 T8 led linear high bay light, 150w 200w led linear high bay light
Halcon is a middle-scale size factory but with professional engineer team for working with all clients from the industry,Architectural,Retail,Display&commercial using markets like super store,office and goverment buildings,Halcon can design and produce all kinds of lighting products which consists of Iron aluminum parts&plastic parts etc.
Professional hospital T5 T8 led linear high bay light, 150w 200w led linear high bay light
APPOINTMENT TO SEE THE FACTORY!
$title$
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:The lead time of sample is 3-5 days, the lead time of large quantity is 1-2 weeks for light.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 pc sample checking is welcome.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship the led light by DHL, UPS, FedEx or TNT. It usually takes 5-21 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for light?
A: Firstly let us know your requirements or application for light.
Secondly We quote according to your requirements or our suggestions for light.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production for led light.
Q6. Is it OK to print my logo on light product?
A: Yes. It is OK to print your logo on light product. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty for the product?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
