WESTDEER LED linear high bay 65W 2ft Shenzhen manufacturer

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Chandeliers & Pendant Lights
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 15:23

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Type:

Array

Product Details

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
WESTDEER
Material:
Aluminum
Type:
Traditional
Light Source:
Energy Saving
Number of Lights:
Other
Lamp Luminous Flux(lm):
9750
Working Lifetime(Hour):
50000
Beam Angle(°):
150
Input Voltage(V):
120-277V
CRI (Ra>):
80
Support Dimmer:
Yes
Application:
WAREHOUSE, home, hallways, closets, stairwells, kitchens, offices, garages
Product name:
WESTDEER LED linear high bay light fixture
Warranty:
3 Years
Power:
65W
Voltage:
120-277V
Size:
2ft
CCT:
3000/4000/5000K
Working temperature:
-25 to 55℃
Certification:
ETL,DLC
Keyword:
Hang Lamp
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/ctn
Port
Shenzhen

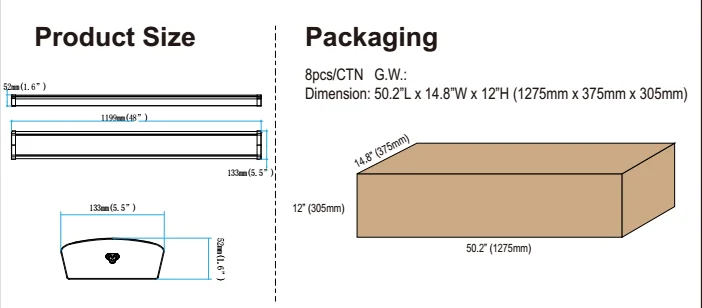

Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 5051 - 1000 >1000
Est. Time(days)1530To be negotiated

WESTDEER LED linear  high bay 65W 2ft Shenzhen manufacturer

MORE PRODUCTION


Product Description



Driver Info

Type:



Constant Current

LED Info

Watts:



65W

120V:

Yes

Color Temp:

5000K

277V:

Yes

Color Accuracy:

80CRI

480V

No

L70 Lifespan:

50000

Input Watts:

65W

Lumens:

9750

Efficiency:

86%

Efficacy:

150LPW(W/O Lens)







130LPW(With Lens)



Technical Specifications Listings

ETL Listing:

Suitable for damp locations. ETL code: 4007551

DLC Listed

This product is on the Design Lights Consortium(DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

IESNA LM-79 &IESNA LM-80 Testing:



This product has been tested by an

independent laboratory in accordance with IESNA LM- 79 and 80, and have received the Department of Energy" Lighting Facts" label.

Electrical  Driver:

Constant Current, Class 2, 100-277Vac,50/60HZ, 0.95Amp@100Vac,XIEZHEN Brand.

THD:

<20%

Power Factor:

>0.95

Dimming Type:

0~10 Dimmable : requires separate 0~10V DC dimming circuit, dimming as low as10%



Emergency Battery Backup:

Optional



LED Characteristics Lifespan:

50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

LEDs:

Long-life,high-efficiency SMD2835, patent free.

Color Stability:

Comply with DLC"s requirements.

Color Uniformity

CCT(Correlated Color Temperature)

follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting( SSL) Products, ANSI C78.377- 2015.

Construction

Operating Temperature:

-20°C (-4°F) - 55°C (131°F)

Housing:

Die formed painted steel

Lens:

Frosted PC Cover

Reflector:

Specular, high-reflectance aluminum with 95% reflectivity

Mounting:

Suspension Mount/Pendant/Surface Mount(J box)





Finish:

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals

Green Technology:

Mercury and UV free RoHS compliant components Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Other

5 Yr Limited Warranty:

Fixture operation and paint finish are covered for a period of 5 years.

COMPANY INFORMATION



Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter

of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,

with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,

led ceiling light,led wall pack light,led linear  high bay,ufo led high bay light,led grow light and christmas lights .

Hope westdeer could find a way to cooperate with you .

FAQ


Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .



Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.



Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .



Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
