Application-1

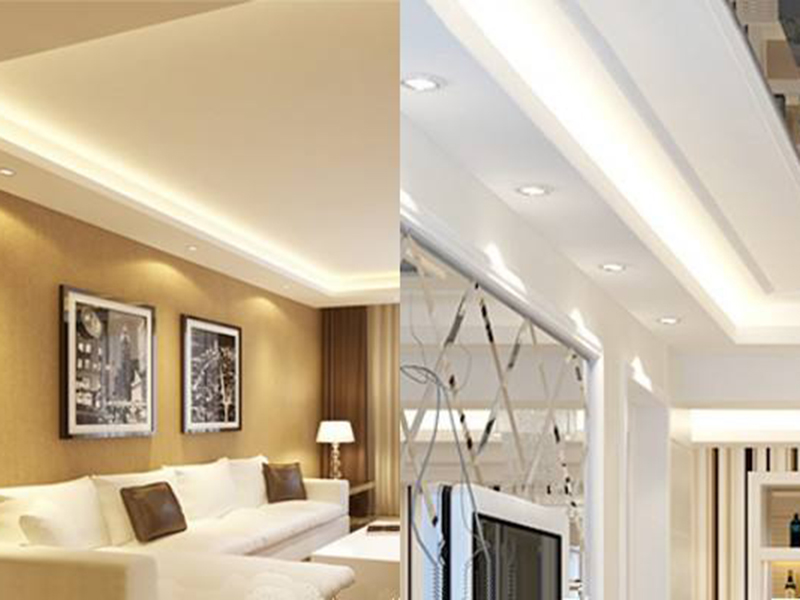

The LED Strip is installed in the dark slot and illuminated by reflection. Very beautiful.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
❈ Product description
Product Features
◪DC12V IP20 2835 LED Strip is suitable for indoor use. Installation and use are very convenient, and because it is low voltage 12V, so the danger is extremely low.
◪It can be mounted on walls, decorations, dark troughs, etc. It plays the role of lighting and decorative beauty.
❈ Product parameters
| Part Number | UN-FPC-E2835x-xxD-12V |
| IP Rating | IP20 |
| Colour | Warm White, Nautral White, Cool White |
| Voltage | DC 12V |
| Light beads | Edison 2835 |
| Power rating | 5-40W difference power for choice |
| CRI (Ra>) | 80, 90 |
| LED Light Source | Edison SMD 2835 |
| LED Qty(LEDs/m) | 60 120 180 240or 60-240 customized |
| Beam Angle(degree) | 120 |
| CCT/nm | 2700-3000k, 4000k, 5700k, 6000-6500k |
| Min. Cutting | 5cm/3LEDs |
| Max. Length | 5, 10M |
| Operating Temperature | -20-50℃ |
| Storage temperature | 0-60℃ |
| Environment humidity | 40%-70%RH |
| Lamp Luminous Flux(lm): | 115+ LM/W |
| PCB Width | 5、6、8、10、12 mm |
| Certification: | CE, FCC, RoHS |
| PCB Color: | White PCB |
| Working Lifetime(Hour): | 50000 |
| Packeting: | 5 Meters/Roll, 10 Metres/Roll |
| Warranty: | 2 Years |
| Service | OEM, ODM , Customization |

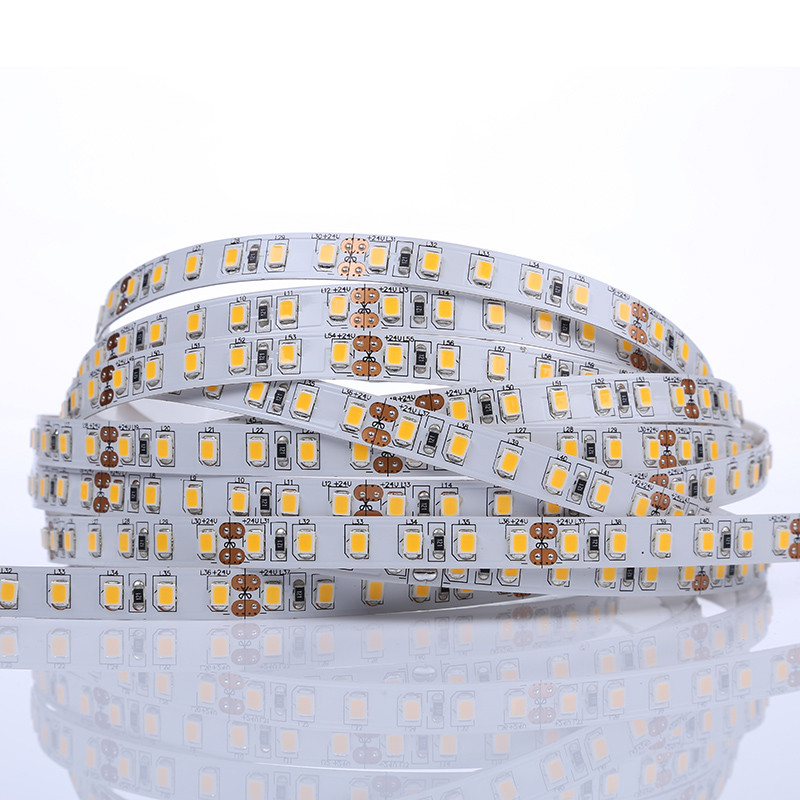

To meet the needs of different customers, need to connect a longer LED strip and ensure uniform brightness, you can choose 24V LED strip.
❈ product details
01
CUTTING OUT
When You Do Not Need The Entire Volume Of Use, To 3 LEDs Or 6 LEDs Multiple Cut,To Avoid Reducing Or Waste
02
CIRCUIT BOARD
Using Double Sided Copper Circuit Board.
With Good Electrical And Thermal Condu-ctivity, With A Very Long Life.
Fast Cooling, High Flexibility, Not Easy TO Break
With Good Electrical And Thermal Condu-ctivity, With A Very Long Life.
Fast Cooling, High Flexibility, Not Easy TO Break
03
BACKING
Viscous,Easy To Use,Light And Beautiful Appearance,More Secure When Heated
04
LED SOURCE
Edison High Quality, High Brightness LED Chip, Luminous Very Even, High Transmittance, Small Smell
❈ product Applications
Application-2
It can be installed on the stairs and is easy to install. It can both provide lighting and beautiful appearance.
