Brand：	none
Address：	Guangdong Shenzhen
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

/ PRODUCT SPECIFICATION

Part number	DR-2835FX196-24V	Adhension	3M 300LSE tape on the back
Color or Color temperature	W / WW / R / B / G / Y	Work temperature	-30~70℃
Power consumption	18W/M	Waterproof rating	IP20 / IP65 / IP67
Input voltage	DC24V	Length of per reel	16.4' (5M) or 32.8'(10M)
LED light source	SMD2835	Working lifetime	50000 hour
CRI (Color rendering index)	Ra>83	Standard connector	20AWG red/black cable on the end
LED beam angle	120°	Connector length	150-200mm length
LED QTY per meter	196	LED strip dimension	15mm (Width)*1.1mm(Height)
Luminous flux per meter	2020-2170LM	Length cuttable	24V-71.2mm
LED strip PCB thickness	2oz	Certification	CE, ROHS, cUL, UL listed
LED strip PCB color	White color	Warranty	3 years

/ product description

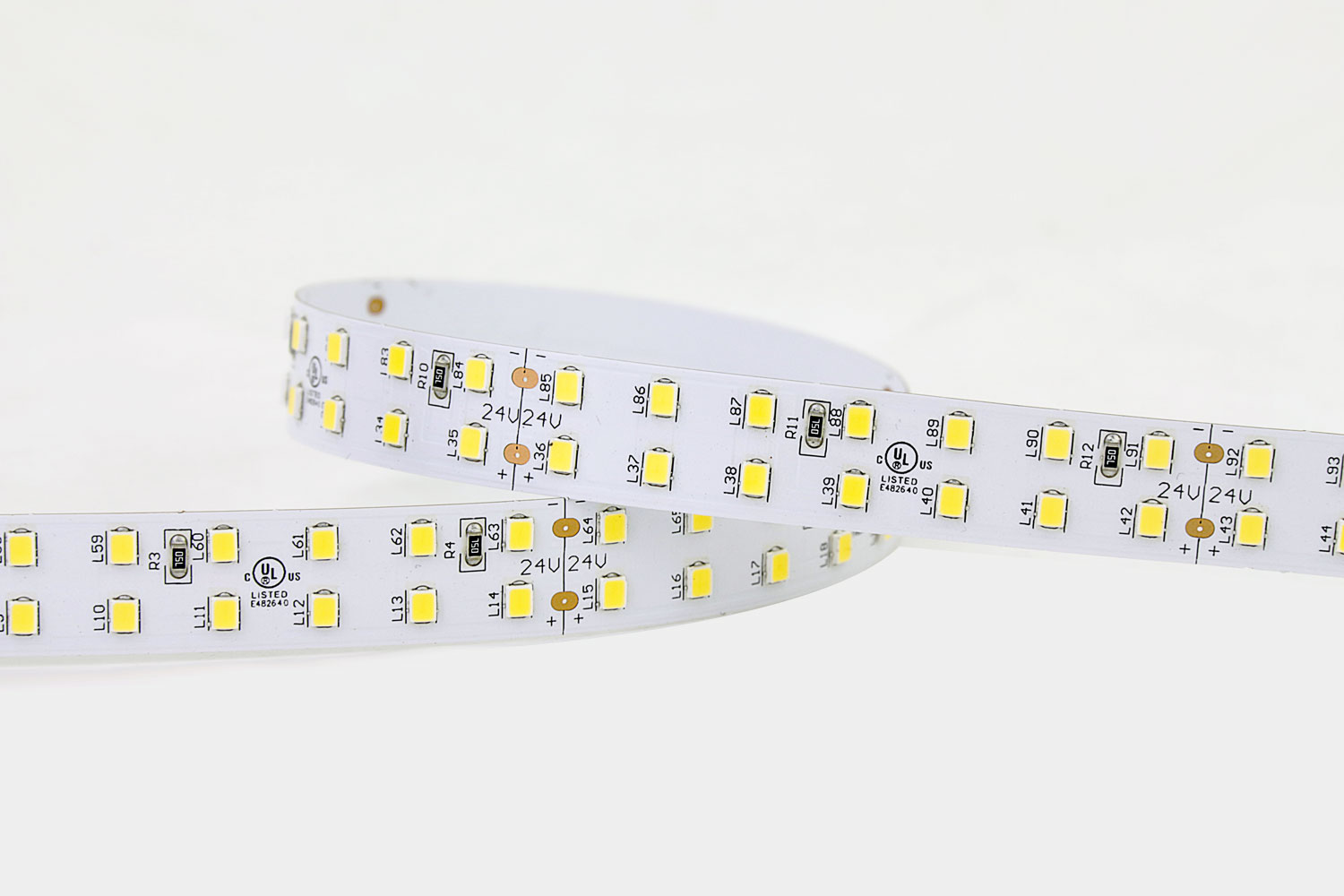

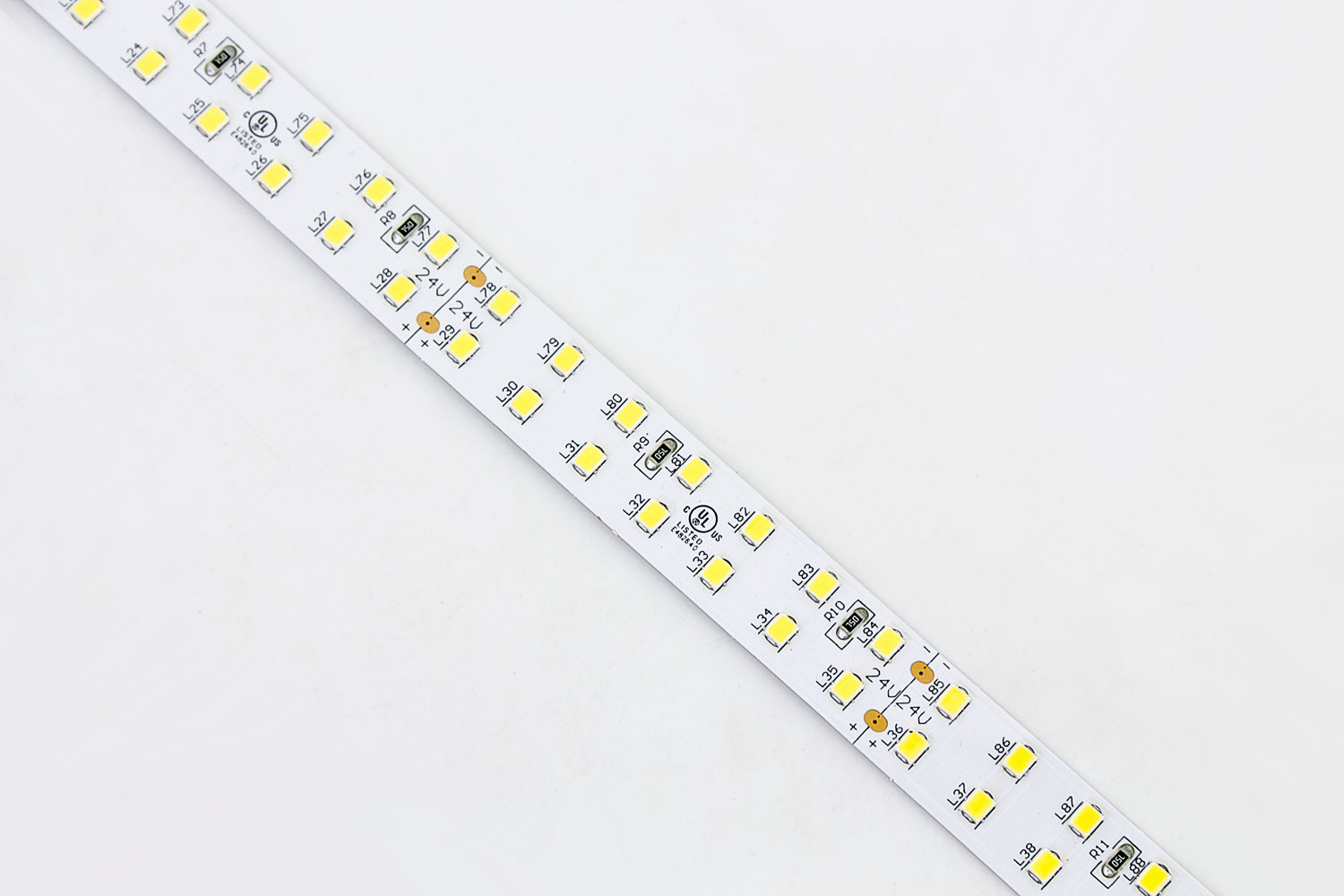

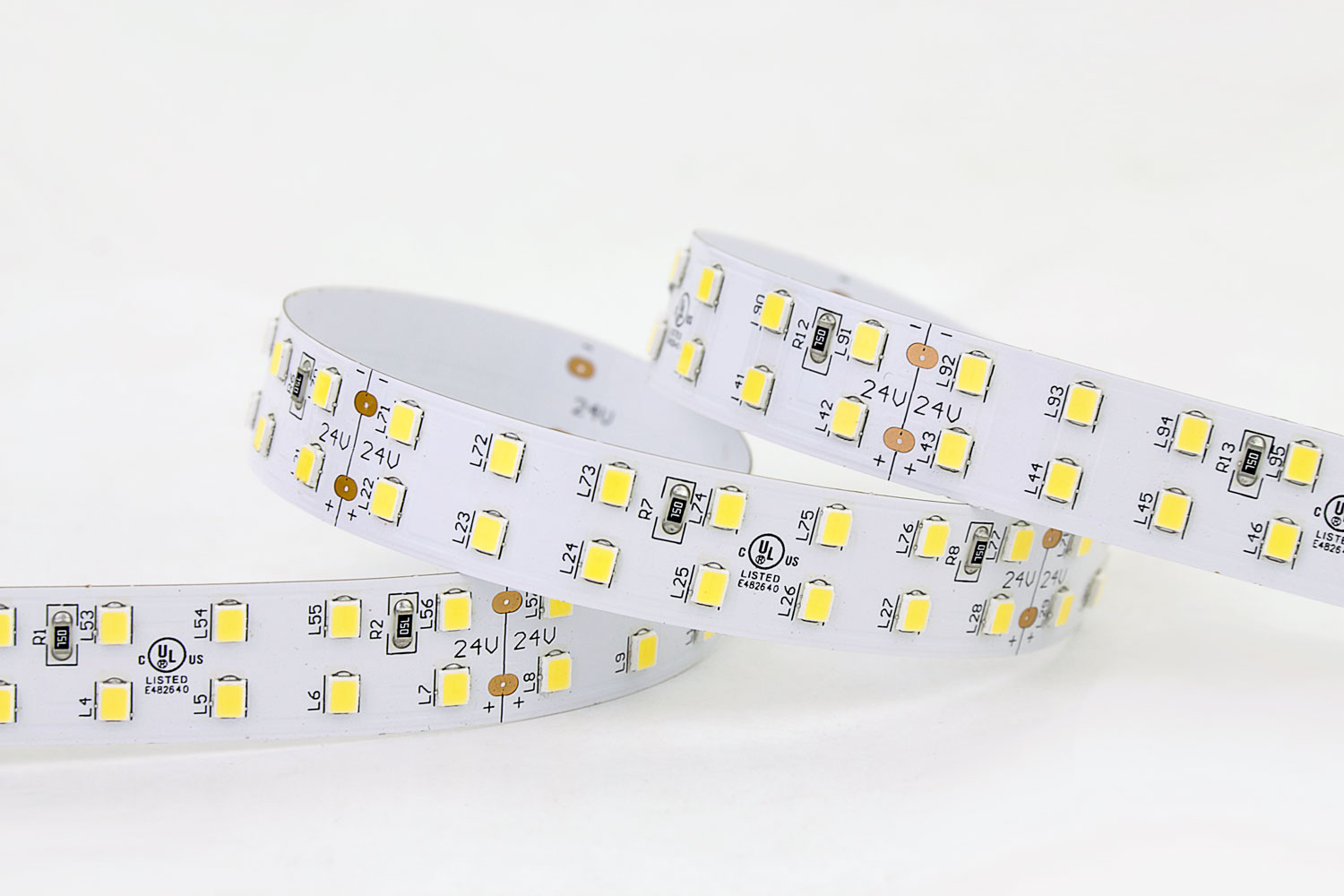

Flexible 16.4’ 90W 980 Diodes 2835 Multi-row LED Strip Lights

This versatile LED Strip Light is in 18W/M. It uses two 2835 LED chips placed every 0.39”(9.8mm). This LED Strip has High Density Lighting with 196 diodes per meter. It is cuttable every 14 LED chips or 2.8”(71.2mm) for 24VDC. The pcb width of this led strip light is 15mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.

/ Dimension(mm)

STYLE

2835 Multi-row LED Strip Lights

/ Application

Counter lighting/light box backlight/home improvement light trough /signboard advertising lighting/Building outline lighting/stairs lighting/display lighting/cabinet lighting.
