Product Details

Overview

Quick Details

Properties:: Medical X-ray Equipments & Accessories

Brand Name:: MT medical

Model Number:: LEDXV-I

Place of Origin:: Shandong, China

Product name:: medical led x ray negatoscope

Size:: 475*505*25

Visual Area:: 360*422

Lifespan:: more than 100000 hours

view panel:: Mitsubishi Rayon 3mm acrylic

Quality warranty:: 3 years

Uniformity:: ≥90%

Full Digital Control:: yes

Material:: Imported Acrylic View Panel

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: carton

Port: shanghai

Lead Time:: 7-15days

Product Description

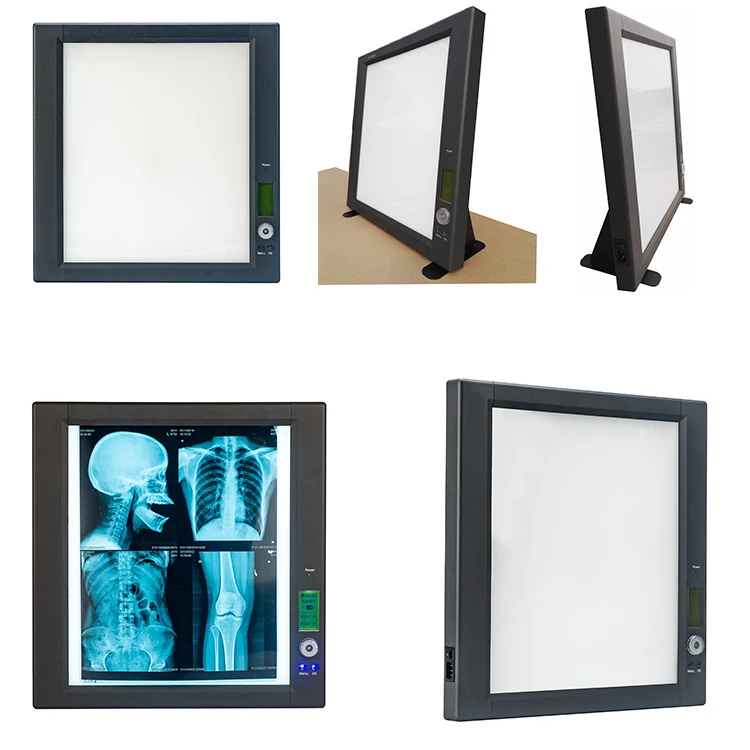

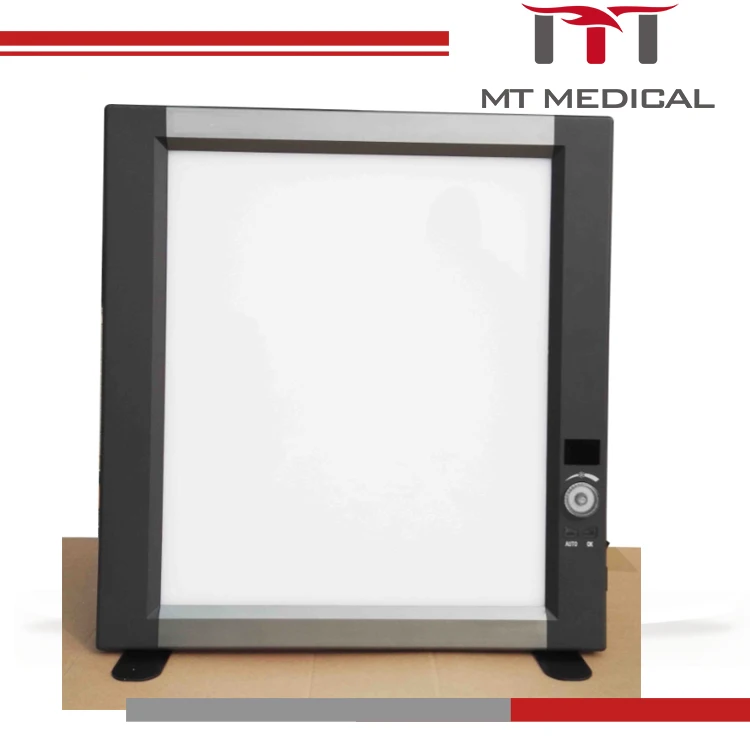

Dental medical led x ray negatoscope

1. Full Digital Control

Compared to the analog control, it works more stable, flexible, accuracy, easier to use as well as longer lifespan.

2. Super Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips

Side lighting cold light illuminator, high density SMD LED matrix(144 pc/bank), the luminance up to 4800 cd/m2, and uniformity up to 90%, ensured the high brightness and great uniformity, guaranteed the accurate observation.

3. Imported Acrylic View Panel

Better light transmission and scattering diffusion, durable, never out of shape or discolored.

4. Eye Protective Feature

The color temperature is up to 8000K, no harmful to human eyes, suit for long time observation.

5. PWM Low-Voltage Digital Continuous Dimming System

Luminance can be modulated range from 1% to 100% continuously.

6. LED Constant Current Drive Power

Guaranteed the LED light works consistently, and makes the viewer longer lifespan, energy saving and safety to users.

7. Film Sensor

The panel will light up automatically when film inserted and off when moved away, and the panels in each bank works separately, can avoid the light influence from other panels while observing.

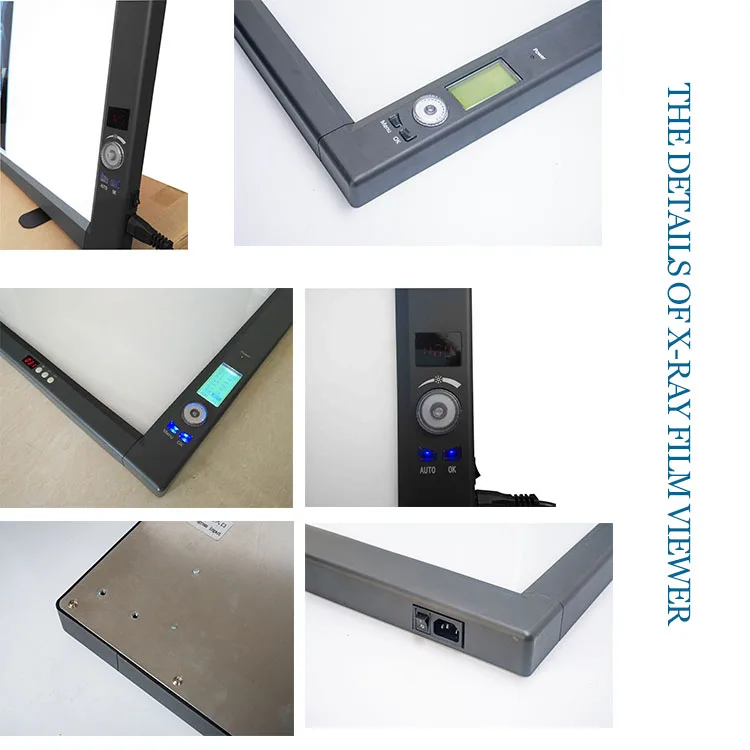

8. Separated Control

Each bank can light up and dimming separately, every bank can be worked as a single viewer.

9. Improved Fixture

Instead of the clip+ball fixture, a new needle roller fixture was adopted, it is more durable and easier to use.

Product parameter
LED-XV Series	Single

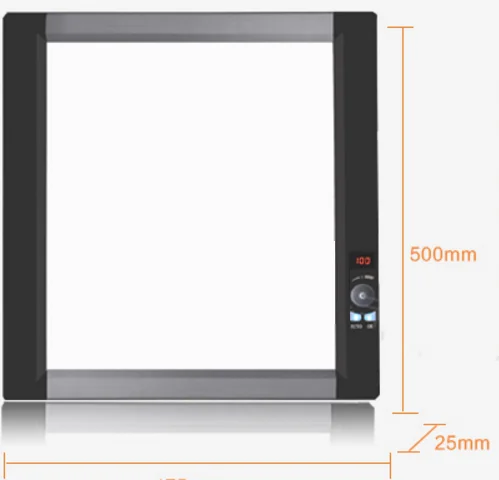

Size(L×W×H mm)	475×505×25
Visual Area(L×W mm)	360×422
Power(W)	30W
LED Specification&Lifespan	Super Bright SMD LED, 144pcs/bank; CCT ≥ 8000K;Lifespan ≥ 100000 hours
Adaptor	Global Adaptive Power;AC90V-240V ,50/60Hz
View Panel Luminance	PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~4500cd/ m2
Sensor function	The panel will light up automatically when film inserted and off when moved away
Uniformity	≥90%
Fixture	SS roller oblique compression type Fixture
Installation	Wall mounting, Bracket mounting
Application Scope	General Film,Digital Film,Breast Mammography Film
Application Condition	Room Average Illuminance ≤ 100 lux
Features	· Full Digital Control · Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips · Imported Acrylic View Panel · Eye Protective Feature · PWM Low-Voltage Digital Continuous Dimming System · LED Constant Current Drive Power · Automatic film activation · Improved film clip
