Product Details
Specification
Model number： DW028-1 LED Recessed light
| Type | LED | Wattage (W) | Beam | Temperature | CRI | Voltage (Vac) | Life (H) | Size (mm) | Cutout (mm) |
| DW028-1 | LUMINUS COB | 10/18 | 12°/15°/20°/33° | 2700K/3000K/3500K/4000K/5000K | >80 | 220-240 | 30,000 | 135X135X180 | 120X120 |
| SHARP COB | 10/18 | 12°/15°/20°/33° | 2700K/3000K/4000K/5000K | >80 | 220-240 | 30,000 | 135X135X180 | 120X120 |

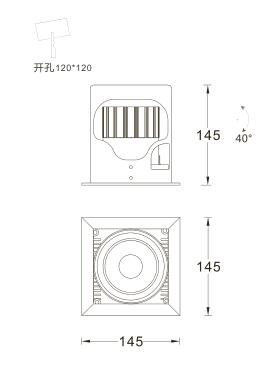

Product Sketch
Photomatric Data
Product Features:
Imported COB LED technology for maximum brightness,high luminous efficacy and high CRI
ANSI Compliant warm/neutral LED bins for a finer color consistency
Delicate appearance, unique modeling, with deep modernbreath.
Specification grade die cast aluminium with sophisticated technology and durable quality, superior heat disspition.
Powder coated surface, gentle and smooth, durable and fashionable.
Universal compatible,replacable lens,with 360° horizontal rotation and 40° vertical adjustment,easily meet the variable scenes.
Environmental-friendly: No RF interference and no flickering, No hazard of mercury or led
Long life span and high in reliability, good at heating dissipation and stability.
Smooth and continuous 2.4G dimming and LiteTrace dimming
7.2mm thick trims mount to ceiling for a thin profile look
Suitable for 1mm~25mm thick ceilings
Easy installation simple and fast to adjust

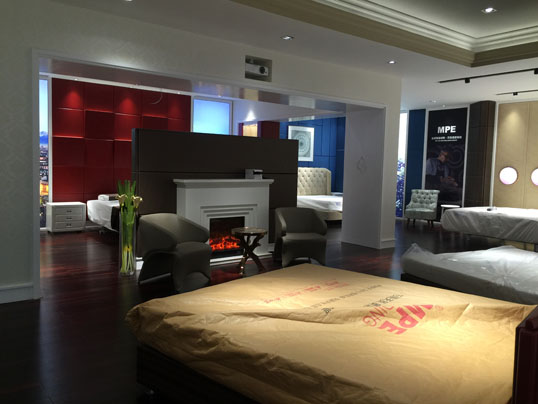

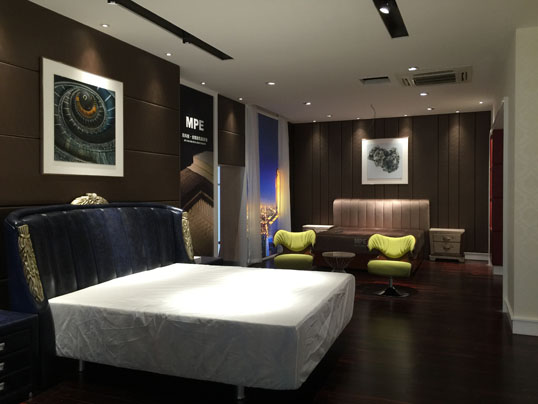

Application Cases
DW028-1-18W-3000K-12°
| 0 degree |
| |||
| D(M) | LUX | W | L | |
| 1 | 15571 | 0.23 | 0.23 | |
| 2.5 | 2491 | 0.56 | 0.56 | |
| 3 | 1730 | 0.68 | 0.68 | |
| 4 | 973 | 0.90 | 0.90 | |
| 6 | 432 | 1.35 | 1.35 | |
