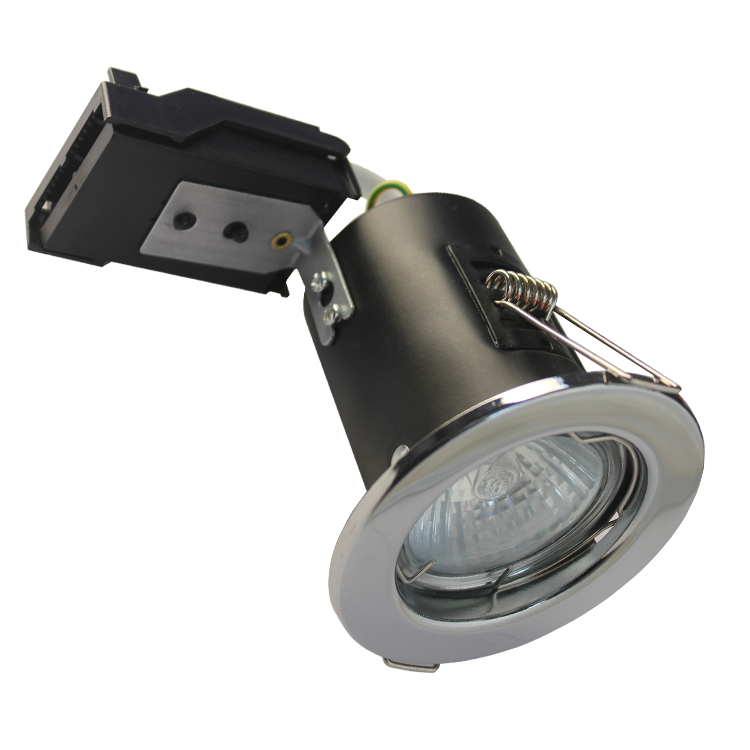

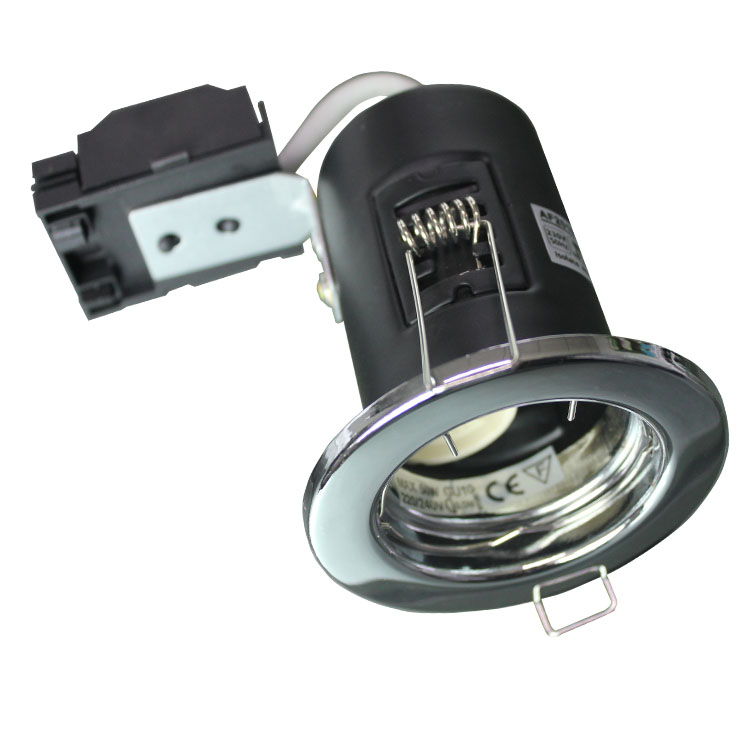

Name: Economy Steel fixed GU10 Fire Rated Downlight changeable bezel pass 30/60/90min. BS476 part21,23
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Input Voltage(V):: 230

Lamp Luminous Flux(lm):: 600

CRI (Ra>):: 100

Working Lifetime(Hour):: 3000

Place of Origin:: Hong Kong S.A.R.

Brand Name:: ART LED

Install Style:: Downlights

Switch Type:: Touch On/Off Switch

Teflong insulated lampholder:: Optimise performance against heat

Large termination block with cable clamp:: easy for the cables loop in and loop out

Shallow depthof 100mm:: Suitable for installation into very smallceilling voids

Material:: Steel

IP:: IP65/IP20

Load:: 50w halogen or 5w LED GU10 lamp

Fire rated:: 30, 60, 90min.

Item Type:: Downlights

Light Source:: Halogen Bulbs

Certification:: BV, C-tick, ce, EMC, Energy Star, ETL, FCC, FDA, Gost, GS, LVD, RoHS, Saa, UL

Color Temperature(CCT):: Warm White

Lamp Body Material:: Aluminum Alloy

Shade Type:: Clear Glass

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs in one box 50pcs in one carton

Port: Guangdong

Lead Time:

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	35	To be negotiated

Specifications

Model	Version	Material	Max Watt	Cap Type	Size	Cutout	IP	Class	Finish
AF201PB	Fixed	Steel	50	GU10/MR16	80mm*100mm	65	20	II	White/chrome/satin nicek/gold/antique/matt chrome
AF202P	Tilted	Steel	50	GU10/MR16	83mm*110mm	65	20	II
AF203PIP65	IP65	Steel	50	GU10/MR16	85mm*135mm	70	65	I
AF201D	Fixed	Die-casting	50	GU10/MR16	92mm*125mm	75	20	I
AF202D	Tilted	Die-casting	50	GU10/MR16	103mm*125mm	85	20	I
AF203DIP65	IP65	Die-casting	50	GU10/MR16	85mm*135mm	70	65	I

Complies with BS EN60598,BS5250 BS476 PART20, 21,23
Suitable for mounting on normally flammable.

Minimum distance from illminated object is 0.5 meter.

Mounting: Recessed

Main Material: Steel or Die-casting

Installation Accessories: Single action spring
