Flexible 16.4’ W 300 Diodes IP20 3528 LED Strip Light DR-2835FX60-12V

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Shenzhen

  • Categories:LED Landscape Lamps
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:45

Other Products
Flexible 16.4’ 300 Diodes Pink Color LED Strip Light - DR-5050FX60-24P
¥Negotiable 19Views

Flexible 16.4’ 300 Diodes P

Recommend
Flexible 16.4’ 300 Diodes Amber Color LED Strip Light - DR-5050FX60-24A
¥Negotiable 19Views

Flexible 16.4’ 300 Diodes A

Recommend
Flexible 16.4’ 300 Diodes UV LED Strip Light - DR-5050FX60-24UV
¥Negotiable 28Views

Flexible 16.4’ 300 Diodes U

Recommend
Flexible 16.4’ 300 Diodes 420nm LED Strip Light - DR-5050FX60-24-420nm
¥Negotiable 36Views

Flexible 16.4’ 300 Diodes 4

Recommend
Flexible 16.4’ 300 Diodes 470nm LED Strip Light - DR-5050FX60-24-470nm
¥Negotiable 39Views

Flexible 16.4’ 300 Diodes 4

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Shenzhen

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details



/  product description

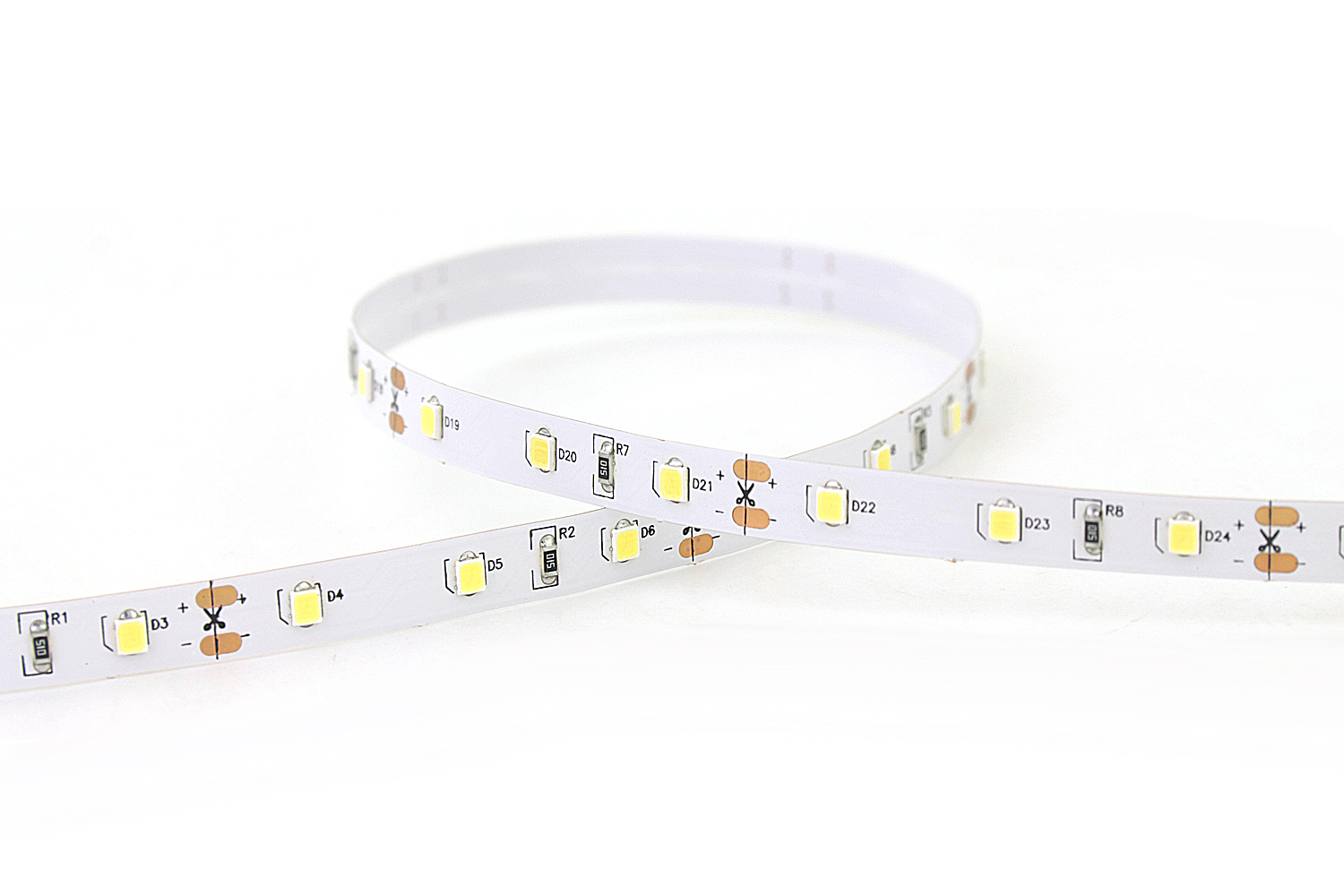

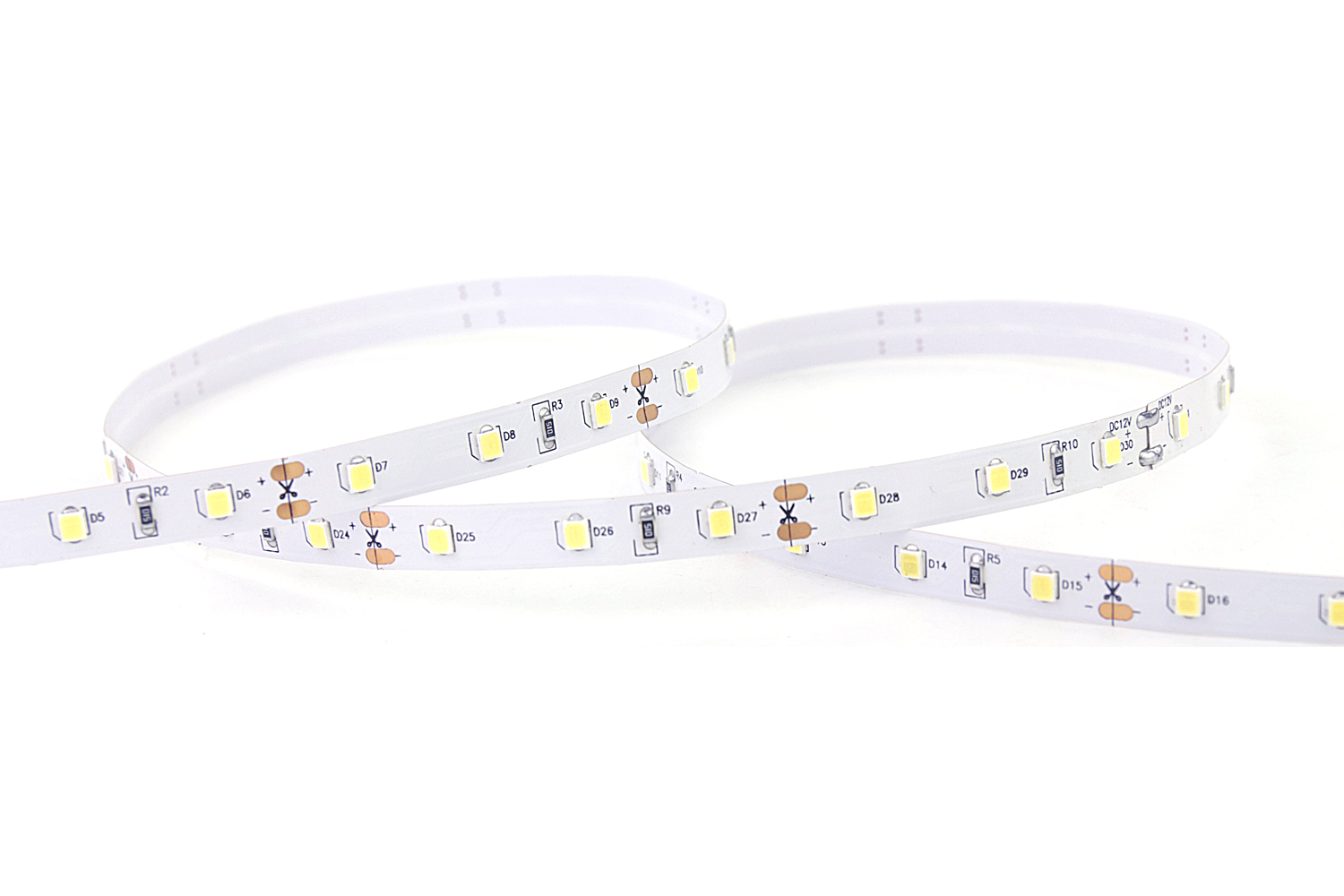

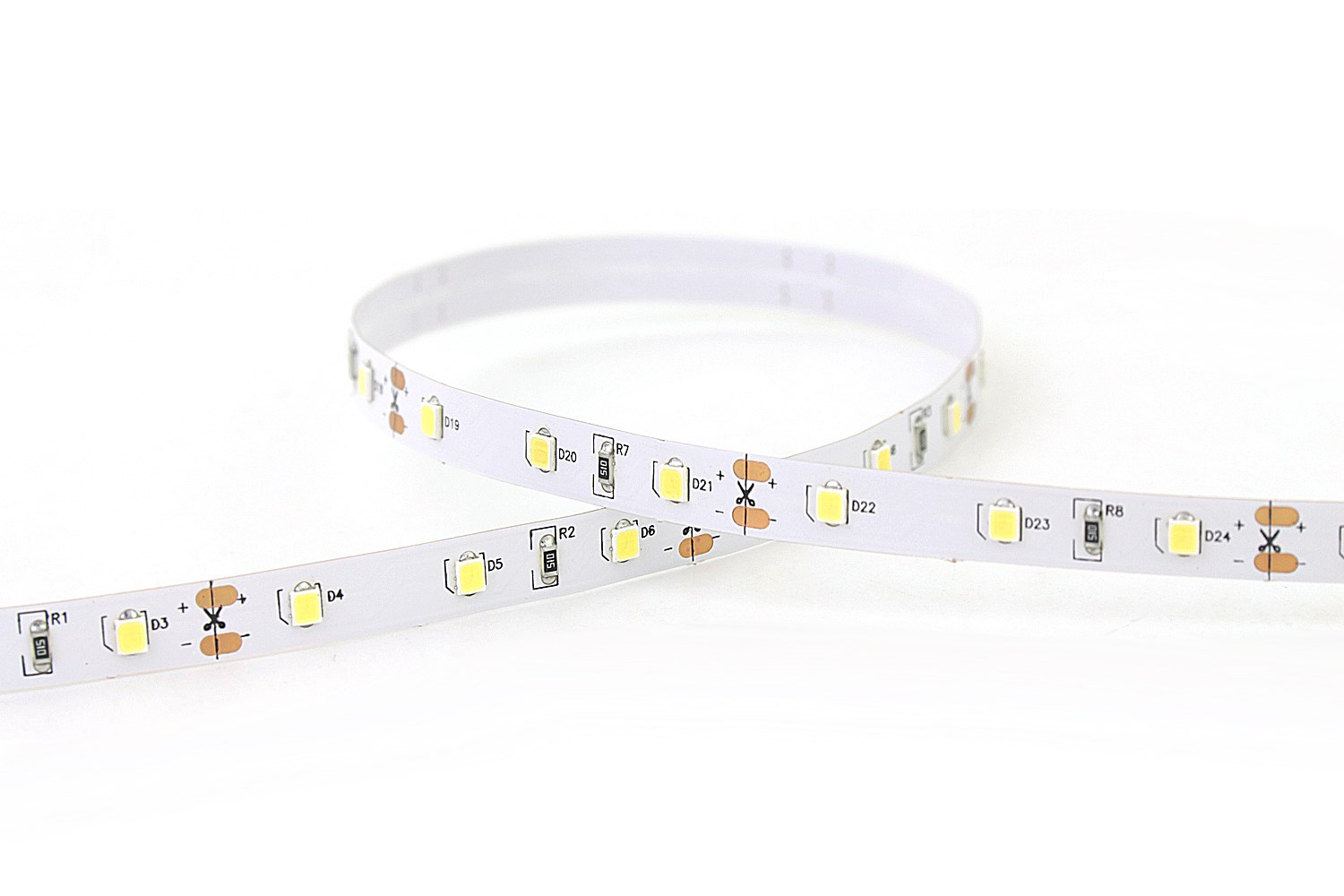

Flexible 16.4’ 35W 500 Diodes 2835 LED Strip Light

Flexible 16.4’ 35W 300 Diodes 2835 LED Strip Light - This versatile LED Strip light is in 7W/M (2.3 Watts/foot). It uses a 2835 LED Chip placed every 0.66”(16.6mm). This LED Strip has low Density Lighting with 60 didoes per meter or (18/ft).It is cuttable every 3 LED chips or 2”(50mm) for 12VDC and every 6 LED chips or 4”(100mm) for 24VDC. The pcb width of this led strip light is 8mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.



STYLE
Single Color LED Strip Light



/  PRODUCT SPECIFICATION



Part number DR-2835FX60-12V Tape 3M 300LSE tape on the back
Color or Color Temperature 2900~7000K Work temperature -30~70℃
Power consumption 8W/M Waterproof rating IP20

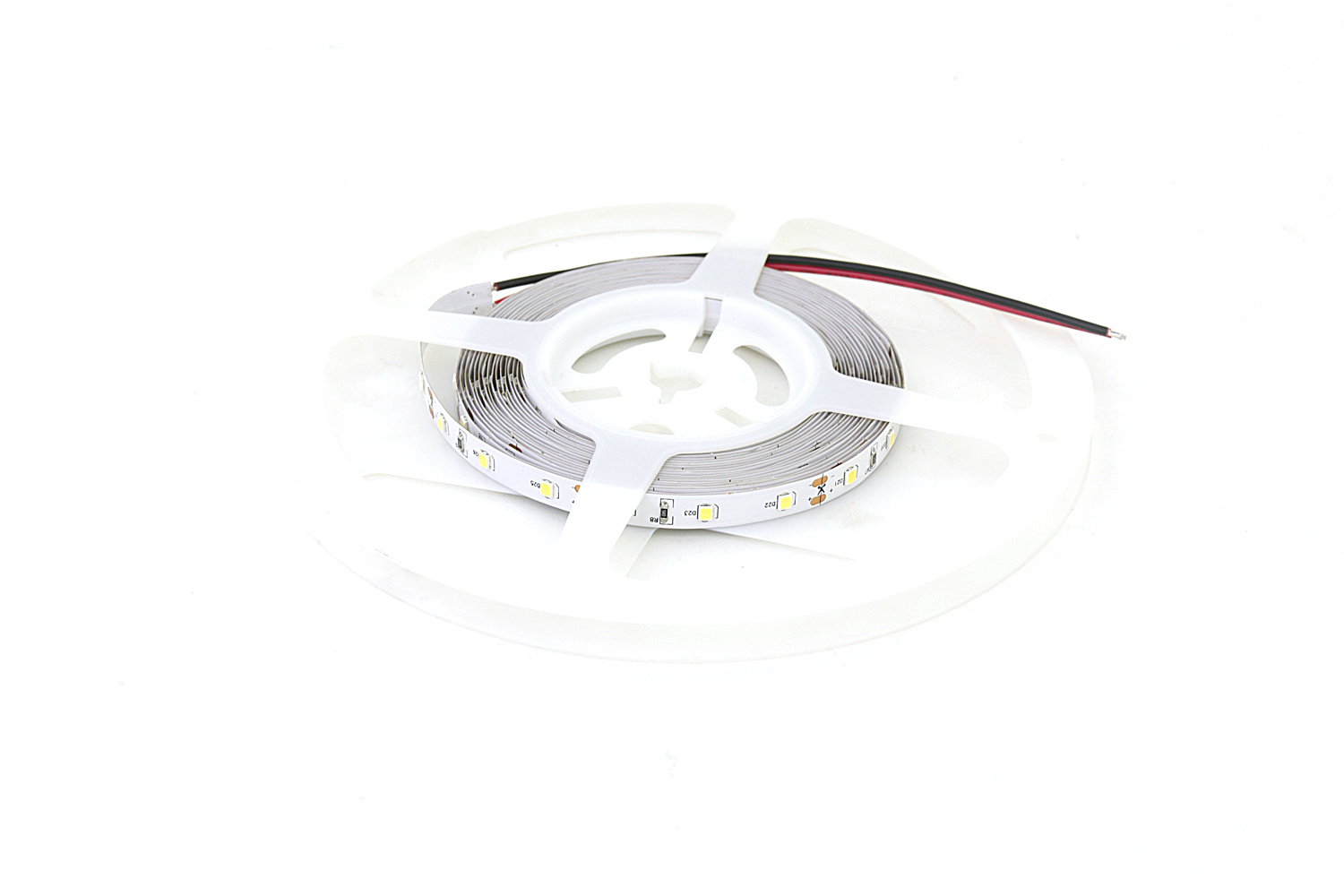

Input Voltage DC12V / 24VLength of per reel 16.4 (5M) or 32.8(10M)
LED Light Source SMD2835 Working lifetime 50000 hour
CRI (Color Rendering Index) Ra>83 Standard connector AWG20 red/black cable on the end
LED beam angle 120° Length connection 150-200mm  length
LED QTY per meter 100LED Strip dimension 8mm  (Width)*1.3mm(Height)
Luminous flux per meter 800-880LM Length cuttable 12V-0mm
LED Strip PCB Thickness 2oz Certification CE, ROHS, cUL, UL listed

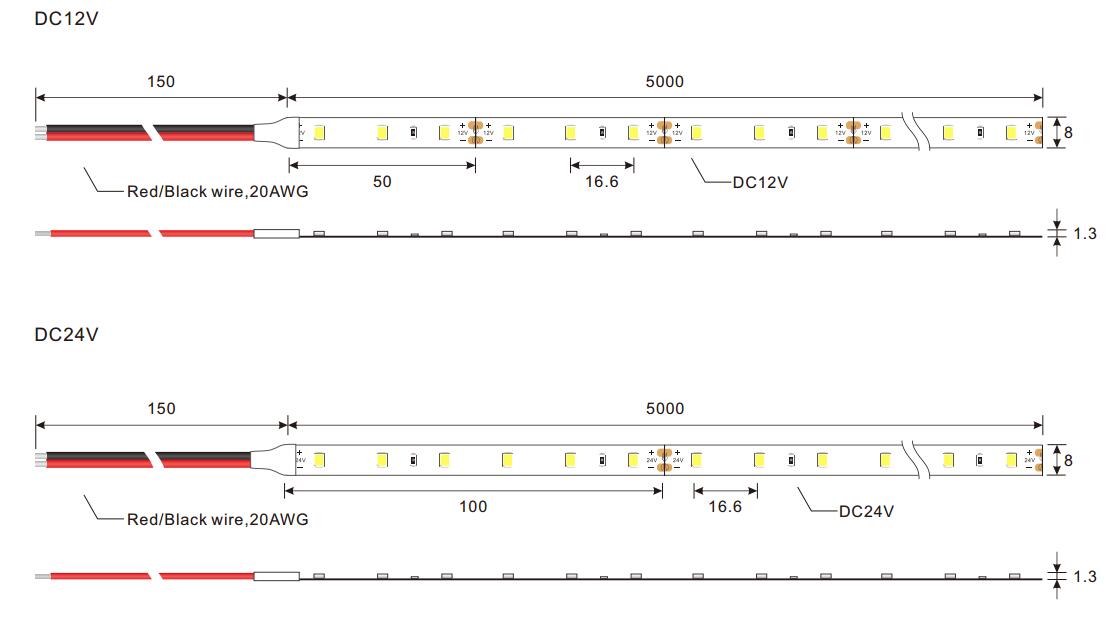

/  Dimension






/ Application

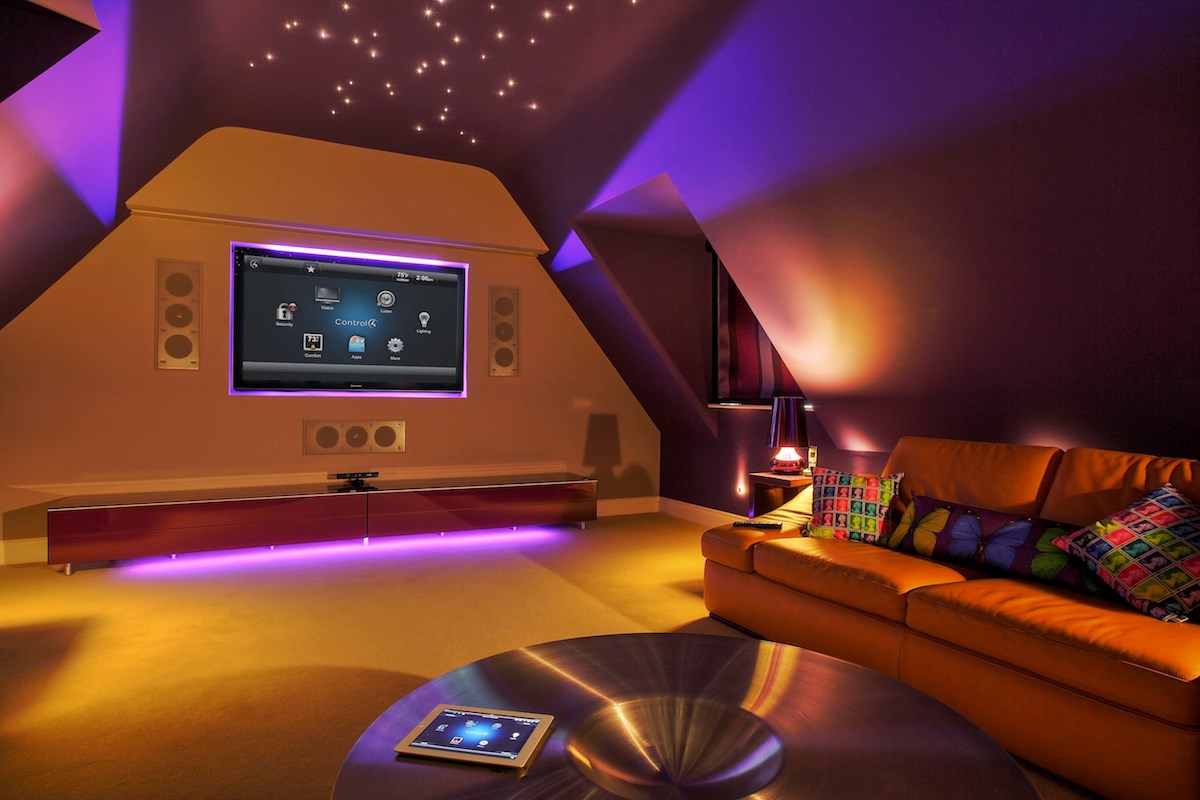

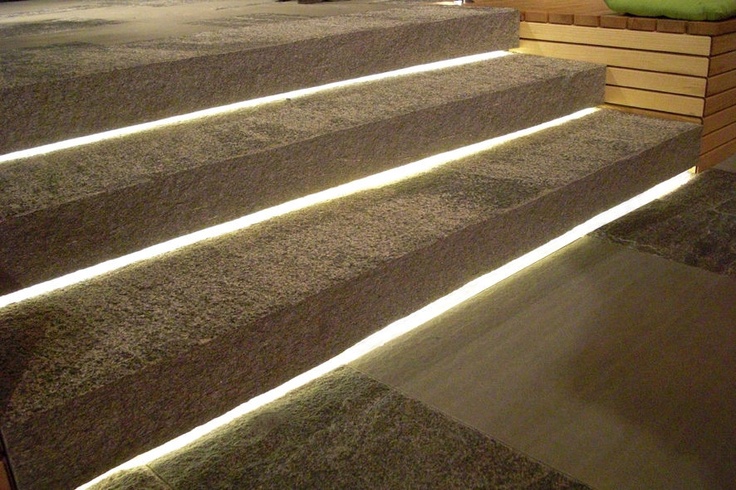

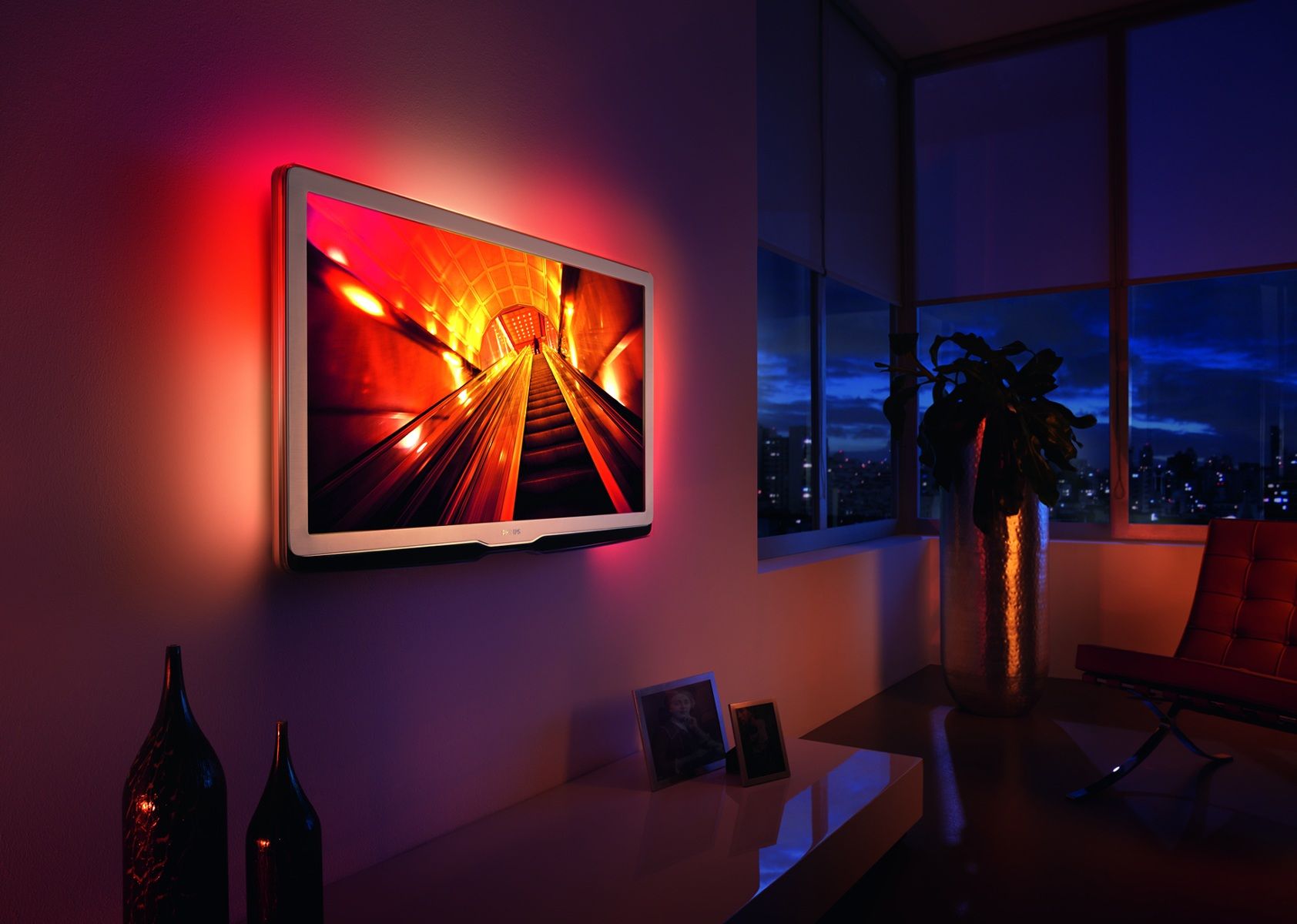

Counter lighting/light box backlight/home improvement light trough /signboard advertising lighting/Building outline lighting/stairs lighting/display lighting/cabinet lighting.
